RN-7-PW-1 Roof Hook Mounting System
- Easy Installation
- Various types of hooks suitable for different tile roof
- Reliability and Safety

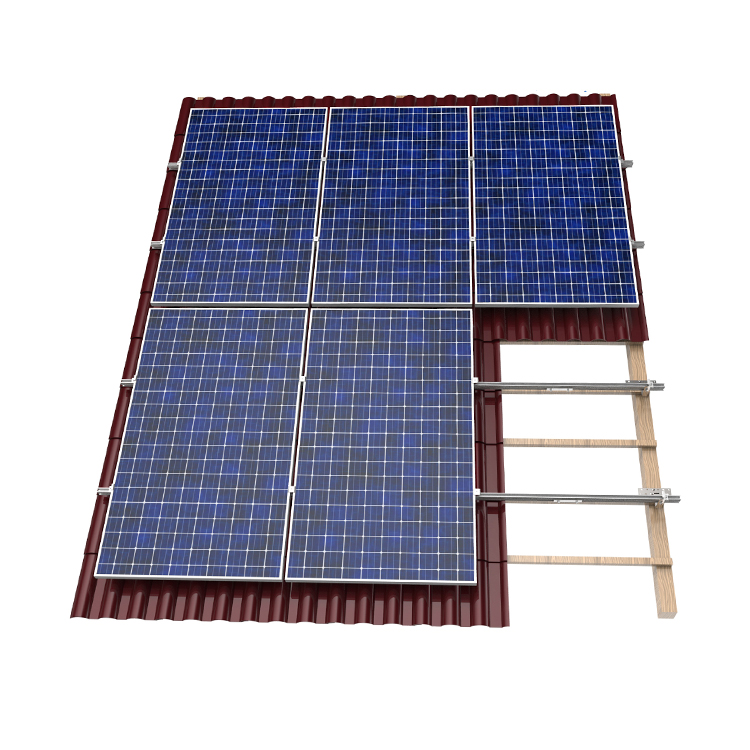

RN-7-PW-1 Roof Hook Mounting System

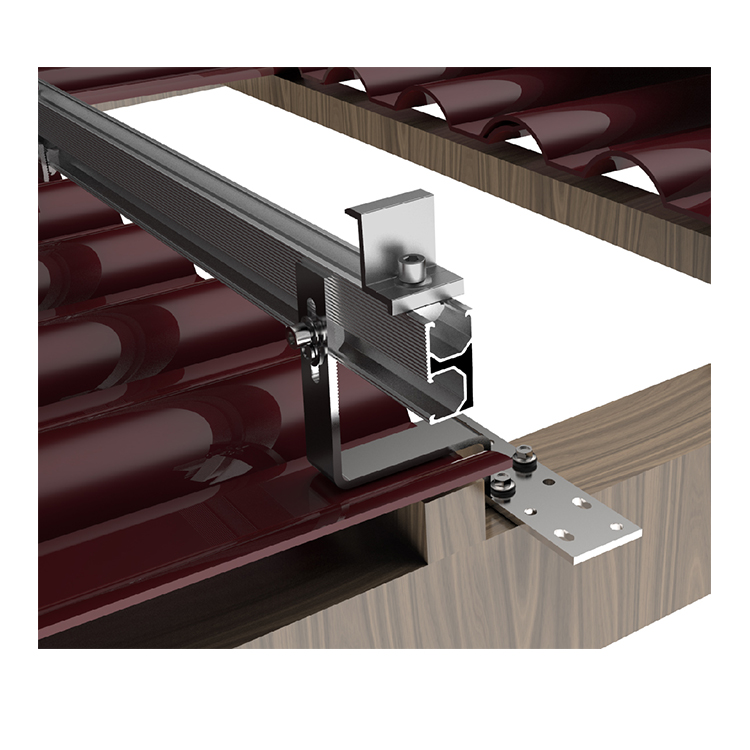

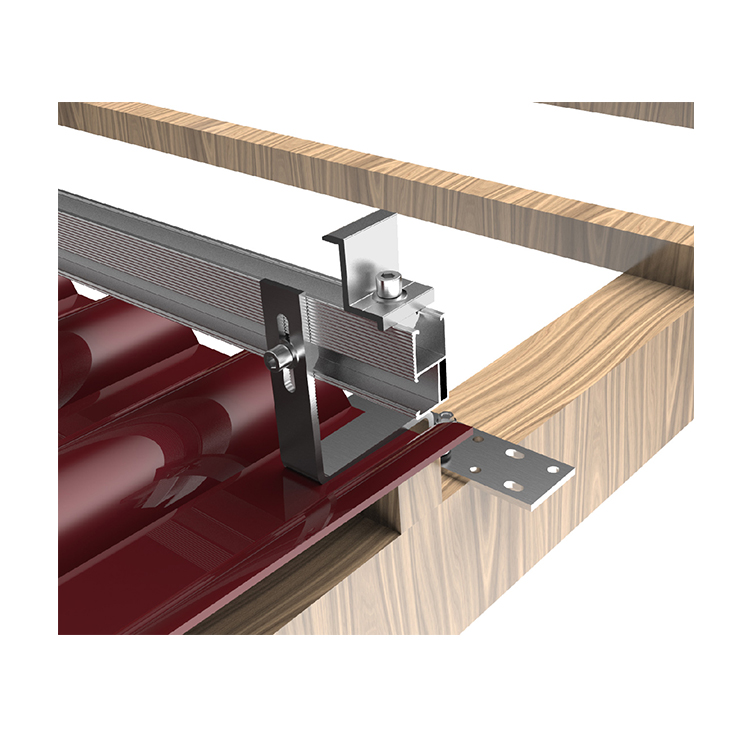

RN-7-PW-1 The stainless steel roof hooks are fixed to the roof beams,that creates a solid system in which the weight is distributed over the entire roof construction without any point loads.
◊ Technical Parameter
| Installation site | Tile Roof | Material | SUS304/AL6005-T5 |
| Tilt Angle | parallel to exsting roof | Wind Load | ≦60m/s |
| Roof Type | Tile Roof | Snow Load | ≦1.5KN/㎡ |
| Module Orientation | Portrait | Warranty | 10 Years |
| Landscape | Design Standard | AS/NZ 1170,JIS C8955 2017,DIN 1055 ,IBC 2006 |
◊ Component

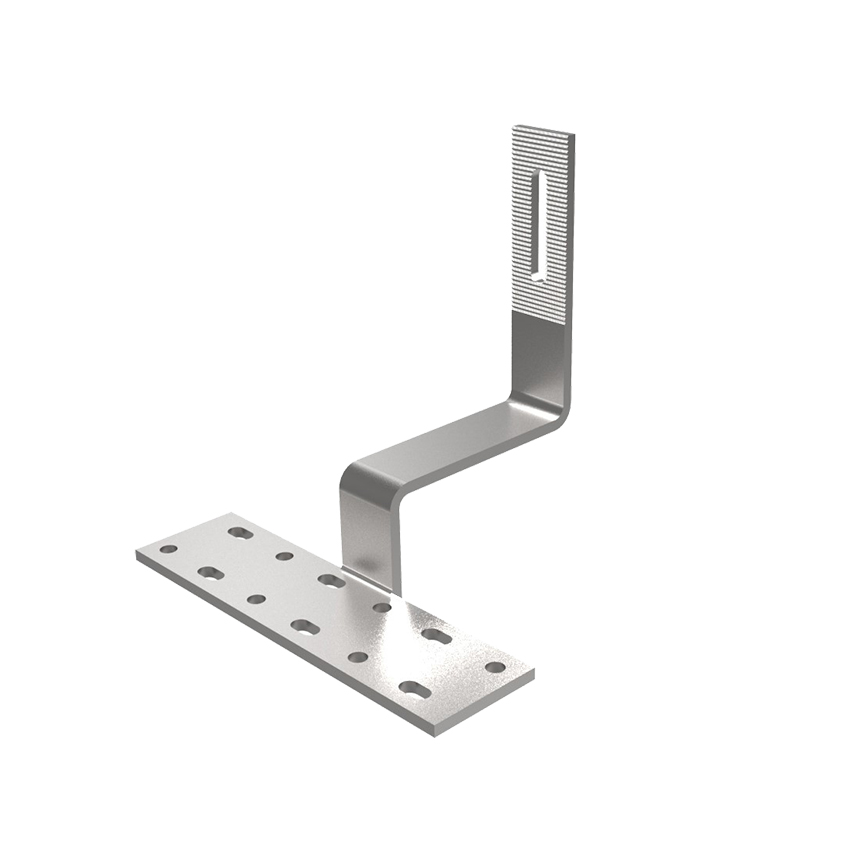

RN7-PW-A001

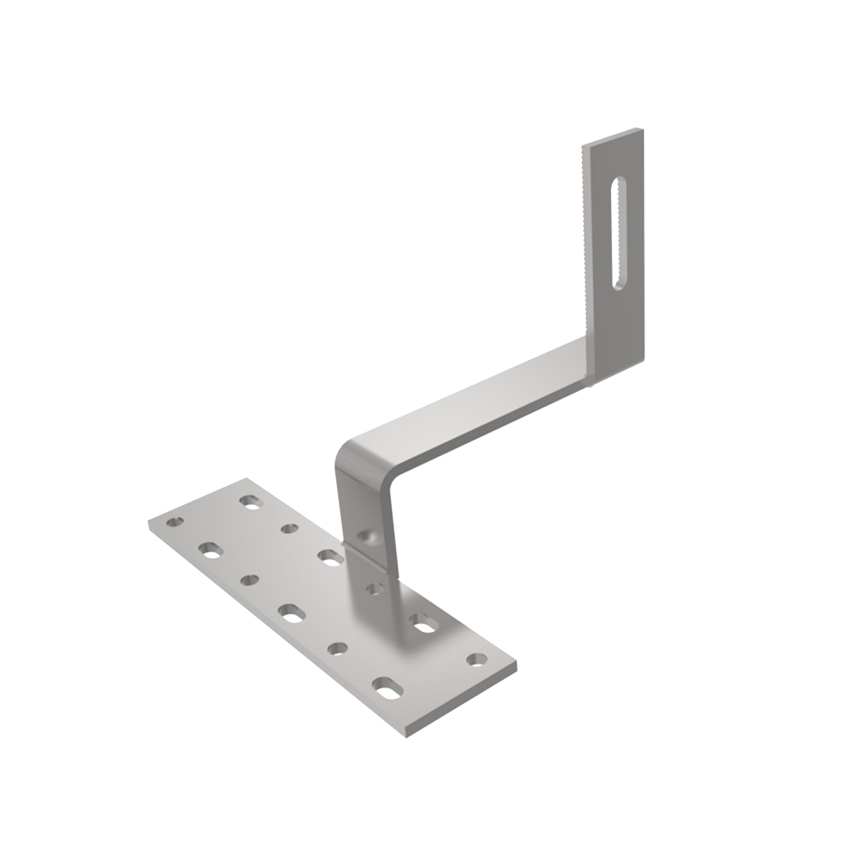

RN7-PW-A002

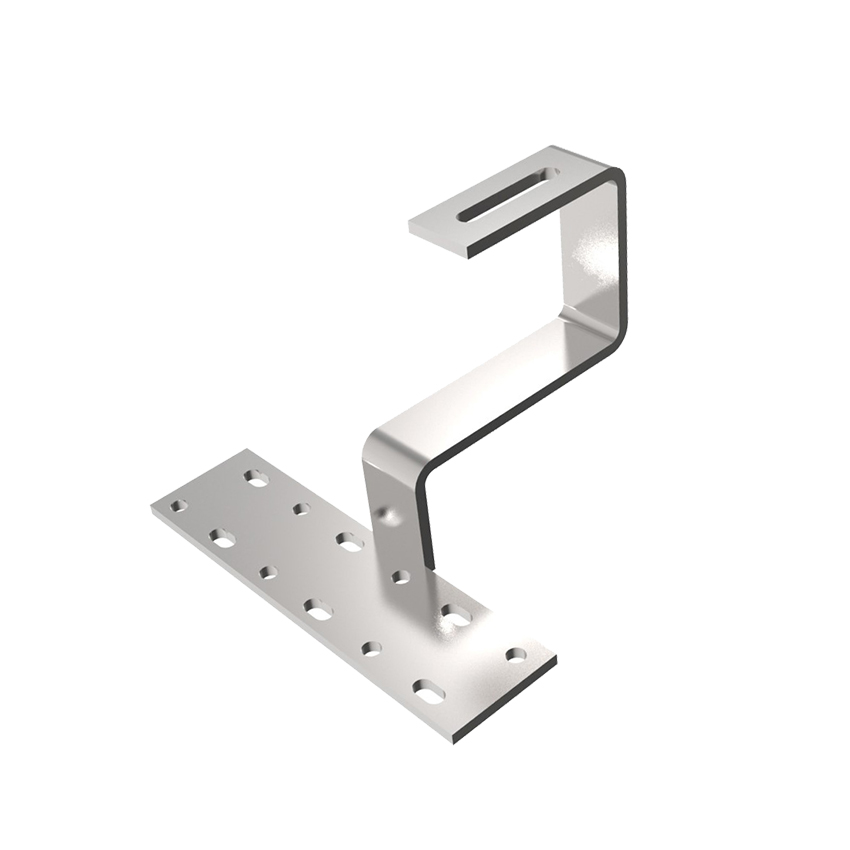

RN7-PW-A003

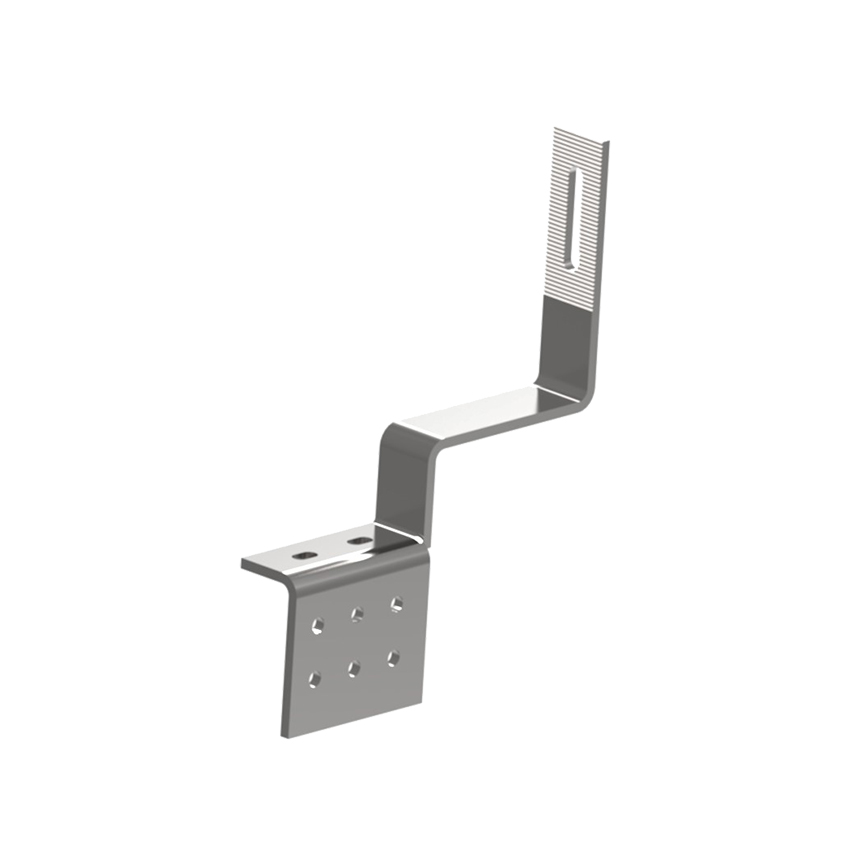

RN7-PW-A004

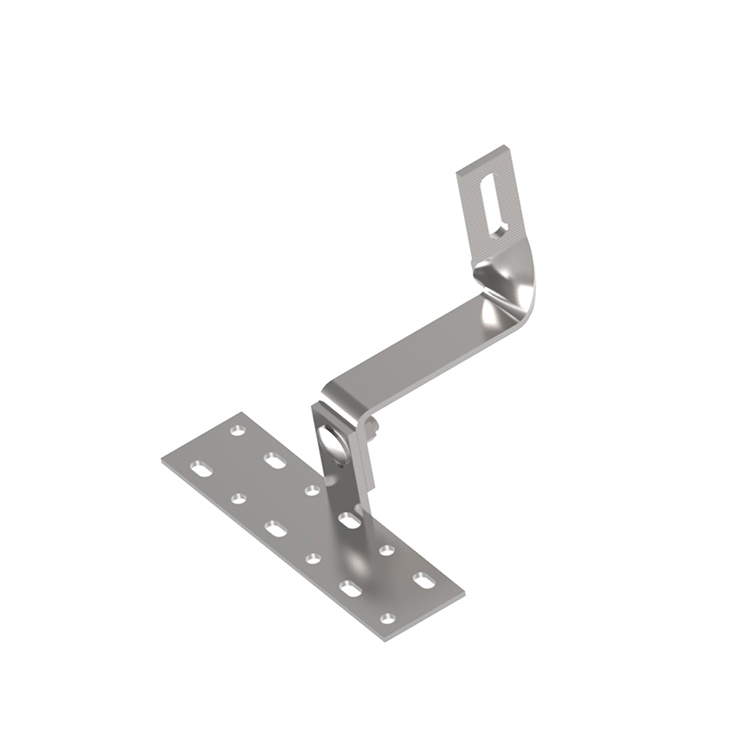

RN7-PW-B001

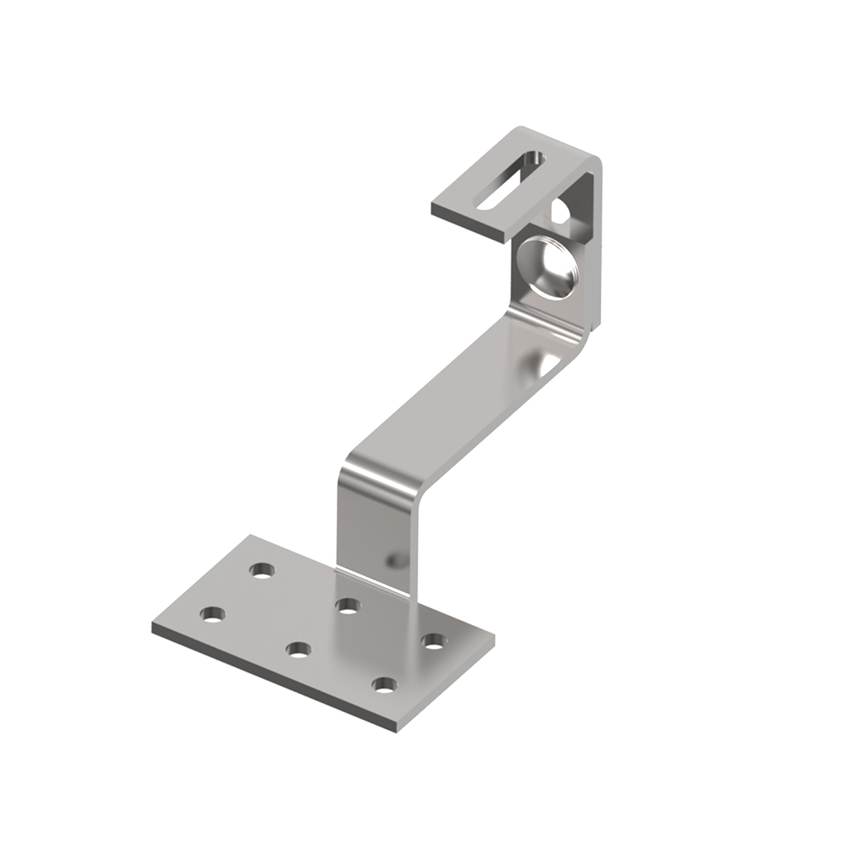

RN7-PW-B002
End Clamp
Mid Clamp
Rail Splice
Rail

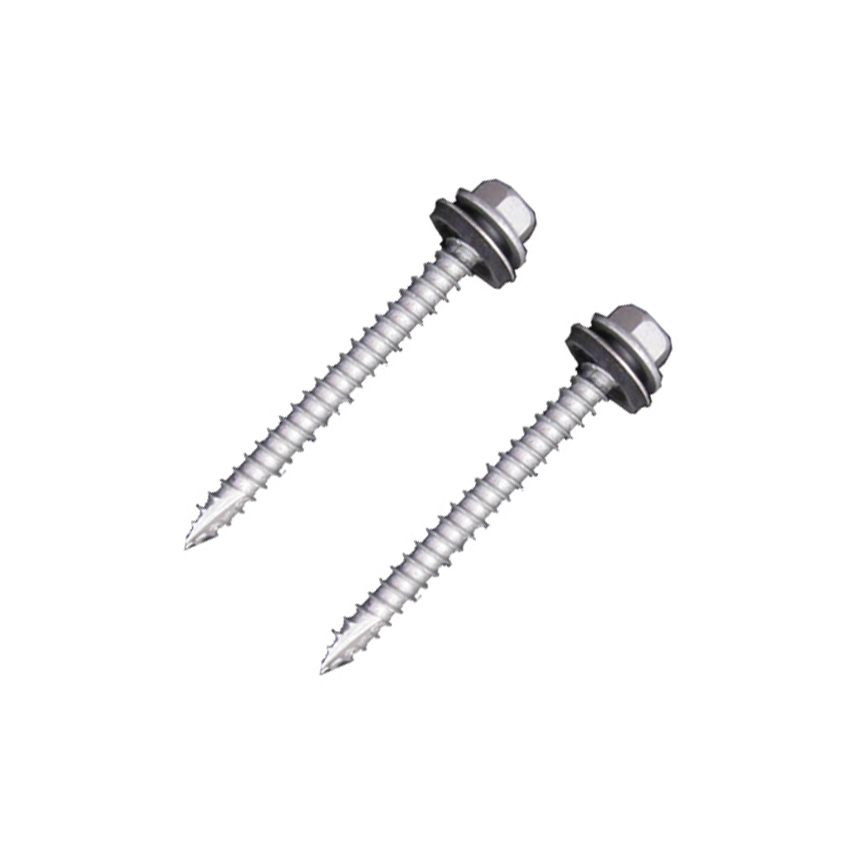

Wooden Screw

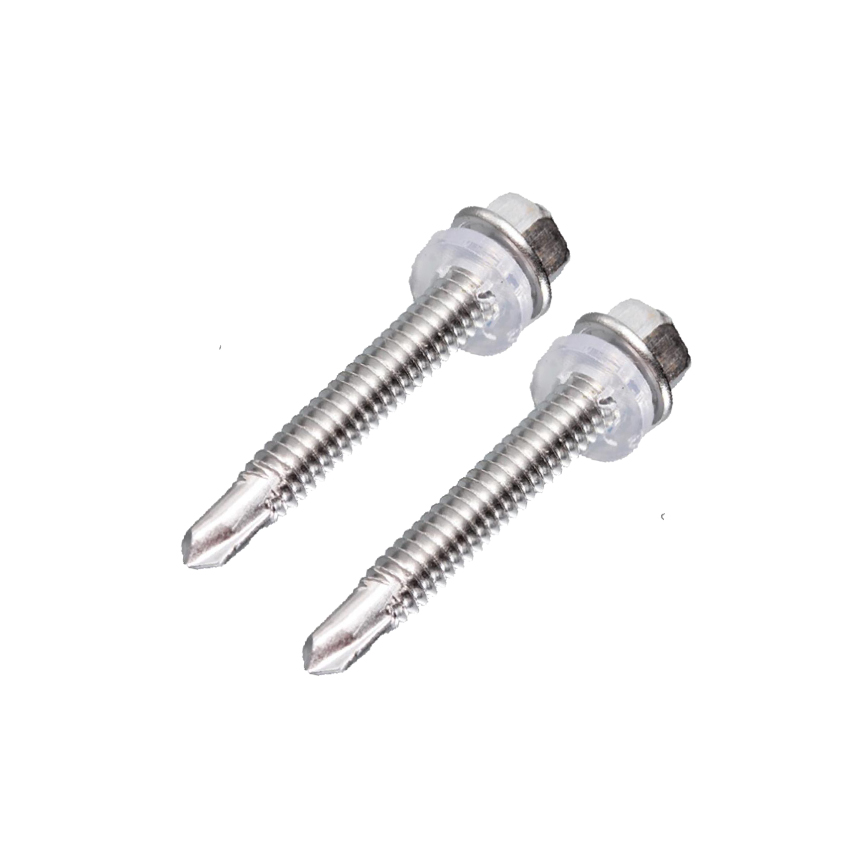

Self Tapping Screw

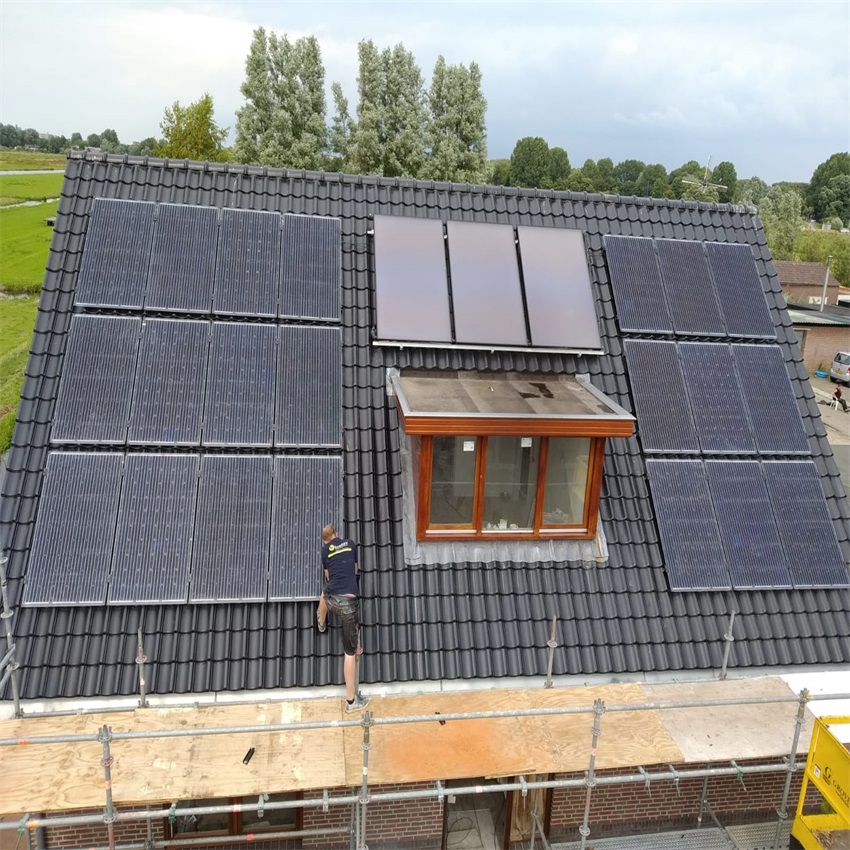

◊ Project Case
