RN-7-SW-5 Standing Seam Roof Mounting System
- Various types of roof clamps suitable for different type of seams
- Economic and Practical
- Easy Installation
- Reliability and Safety

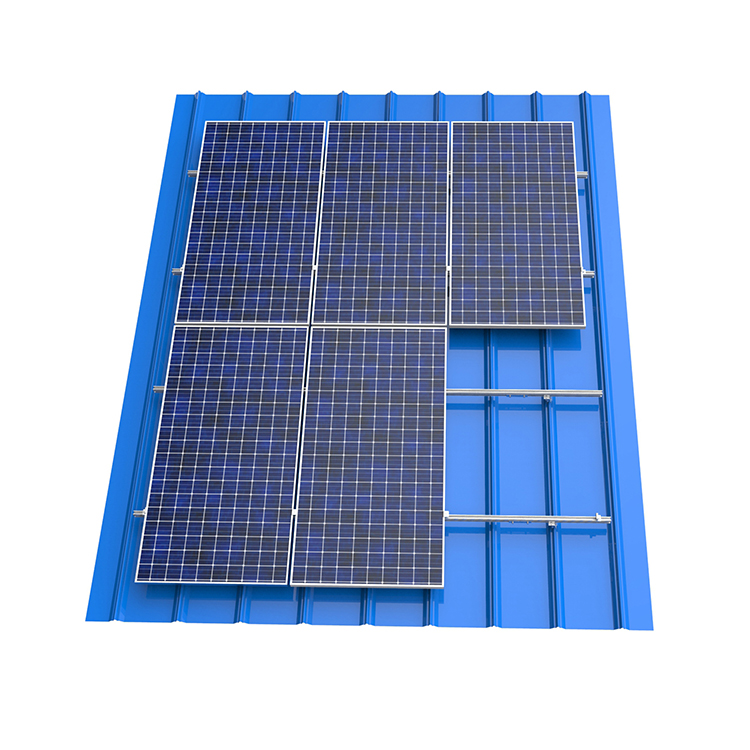

RN-7-SW-5 Standing Seam Roof Mounting System
RN-7-SW-5 Standing Seam Roof Mounting System is consist of roof clamp,adjustable L-foot mounting rail ,other universal components and fasteners.roof clamps fasten on the roof seam without any penetration to the roof.
◊ Technical Parameter
| Installation site | Metal Roof | Material | SUS304/AL6005-T5/EDPM |
| Tilt Angle | Parallel to exsting roof | Wind Load | ≦60m/s |
| Roof Type | Standing Seam | Snow Load | ≦1.5KN/㎡ |
| Module Orientation | Portrait | Warranty | 10 Years |
| Landscape | Design Standard | AS/NZ 1170,JIS C8955 2017,DIN 1055 ,IBC 2006 |
◊ Component
End Clamp

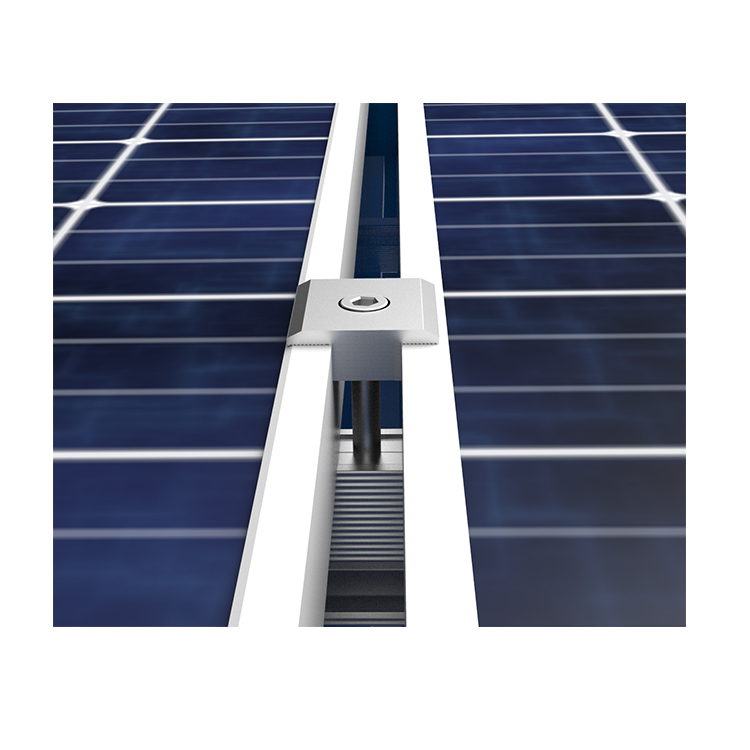

Mid Clamp

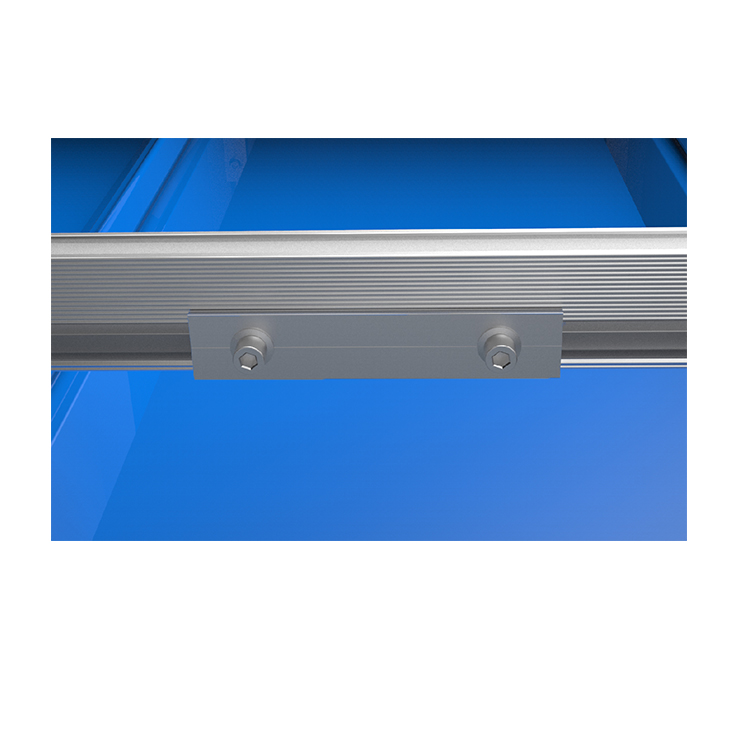

Rail Splice
Rail

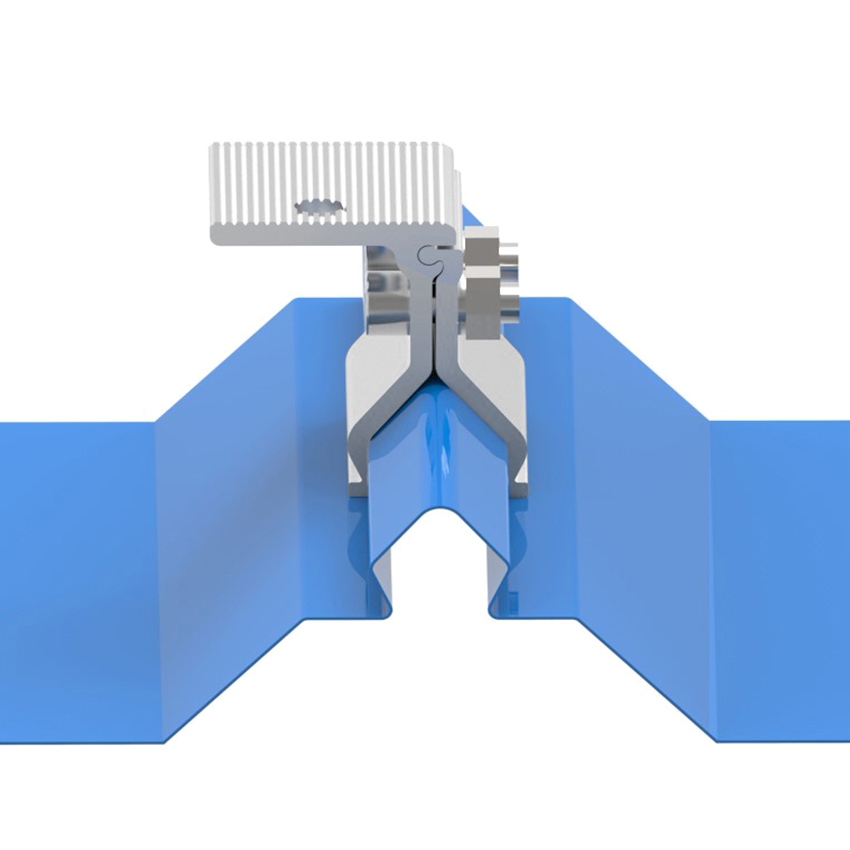

RN7-SW-5-C001

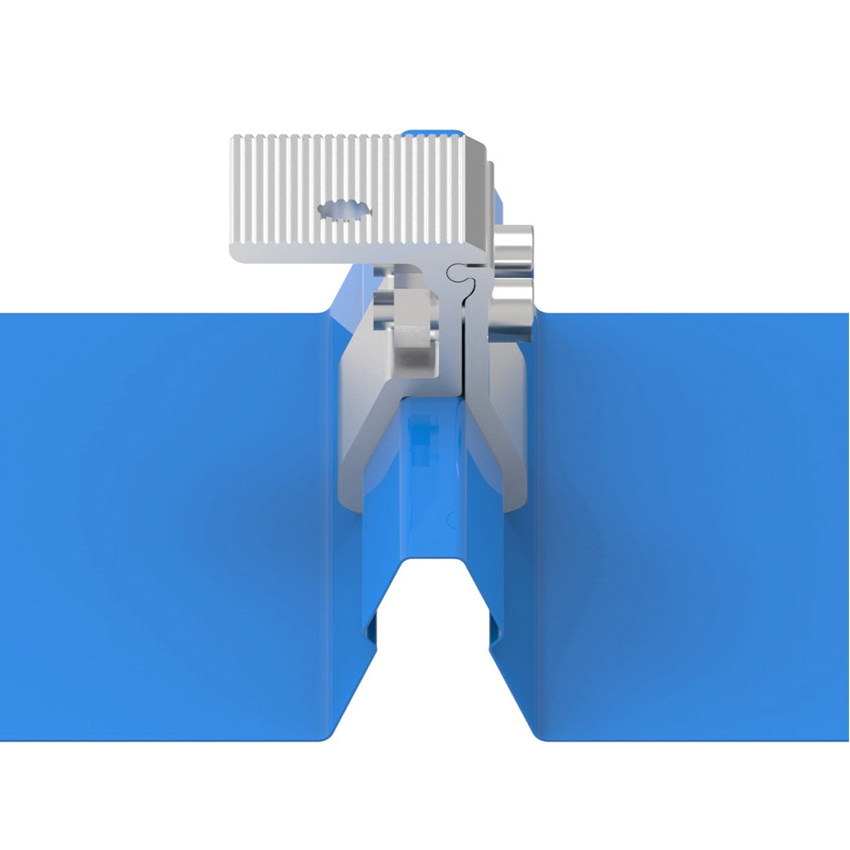

RN7-SW-5-C002

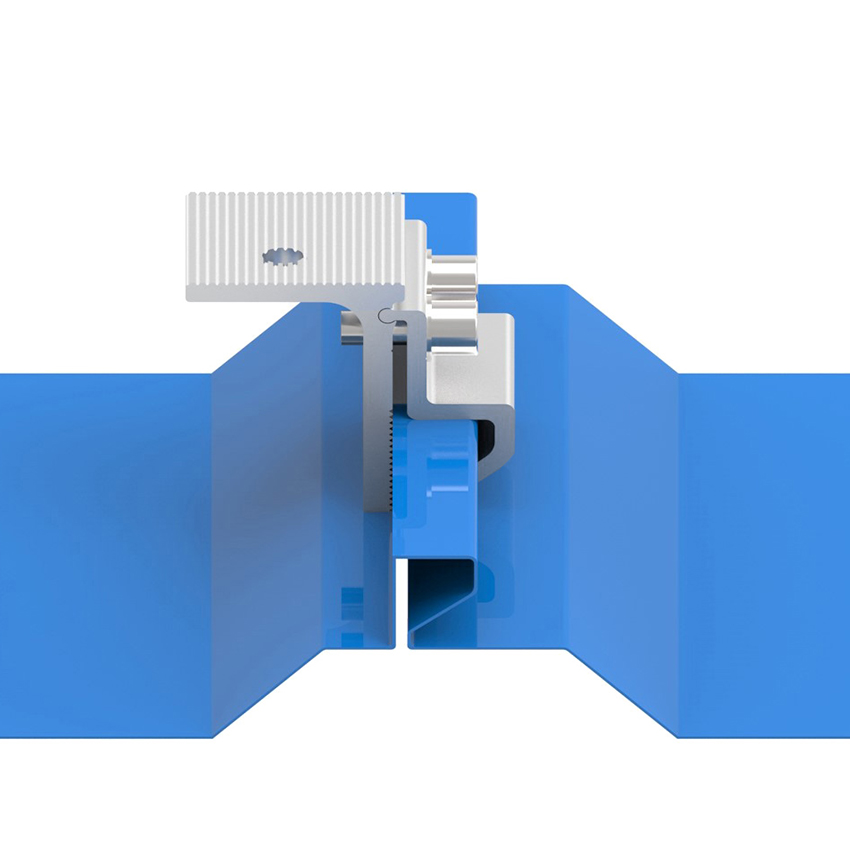

RN7-SW-5-C003

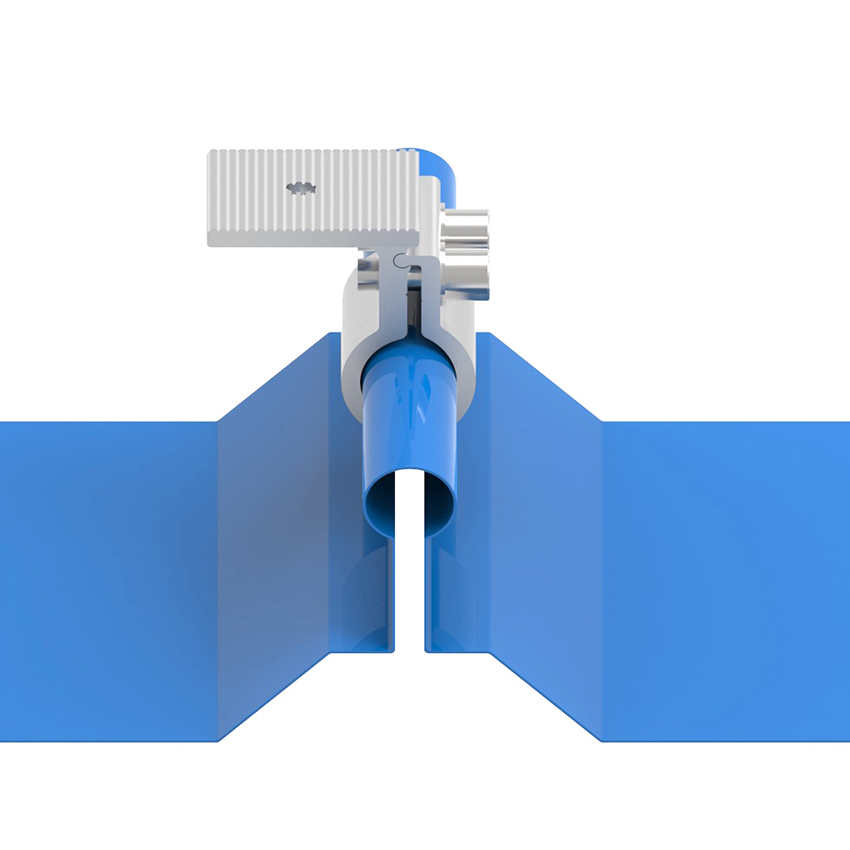

RN7-SW-5-C004

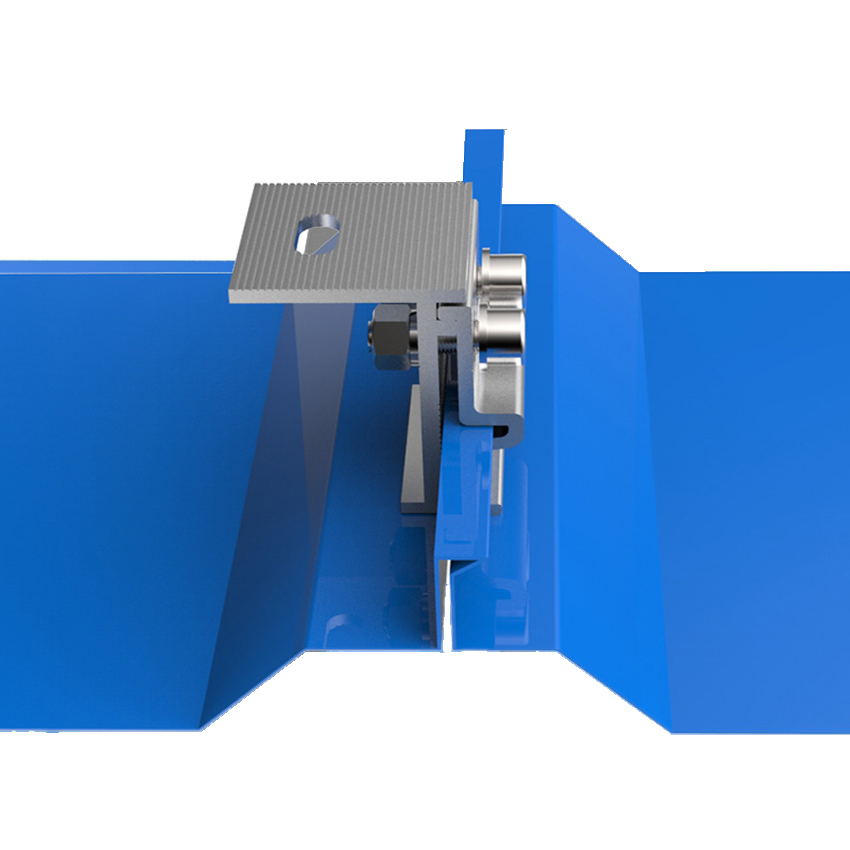

RN7-SW-5-C005

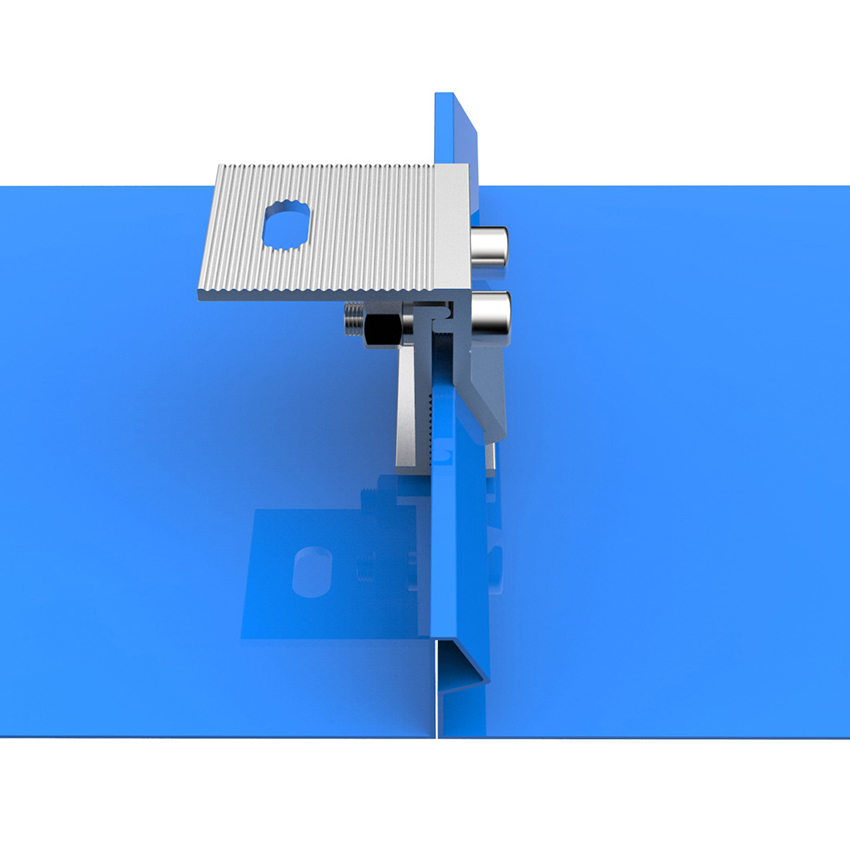

RN7-SW-5-C006

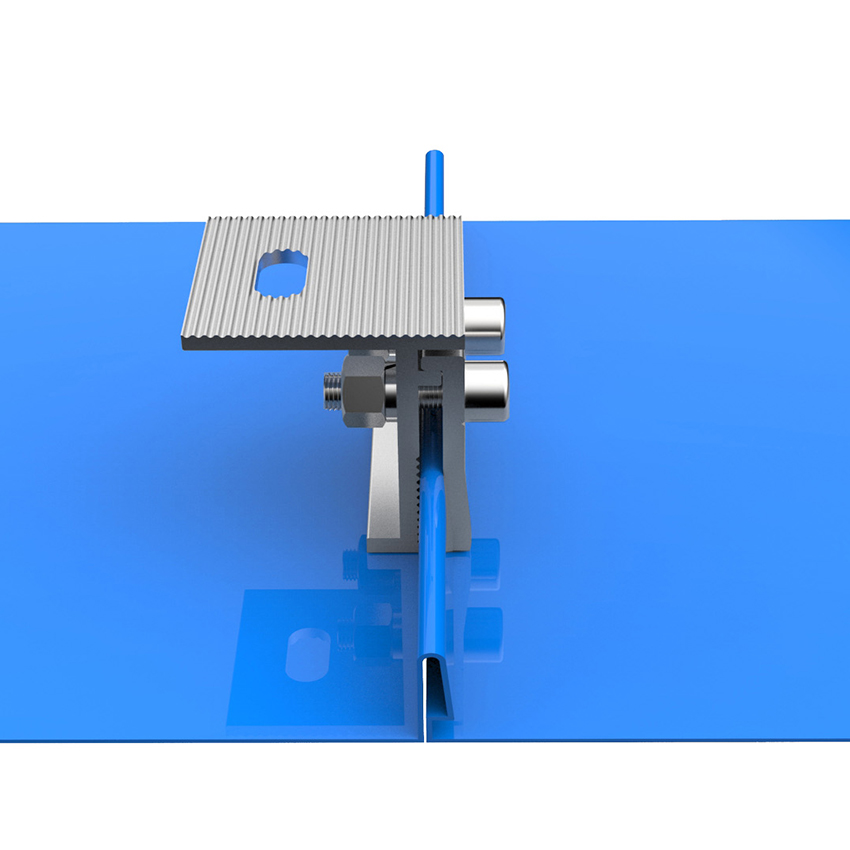

RN7-SW-5-C007

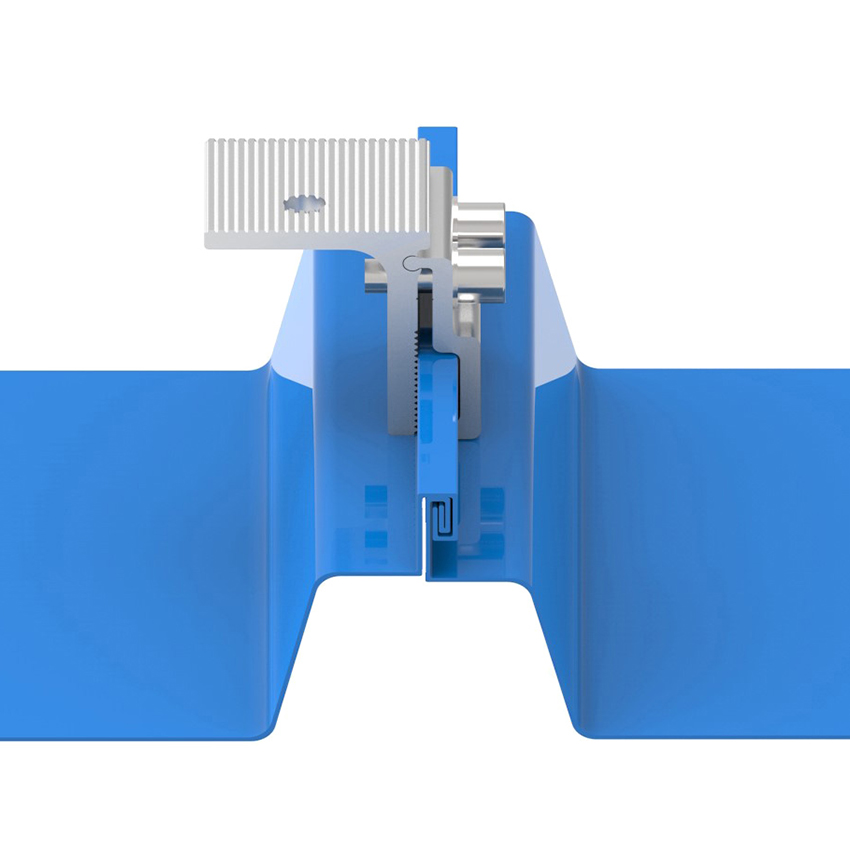

RN7-SW-5-C008

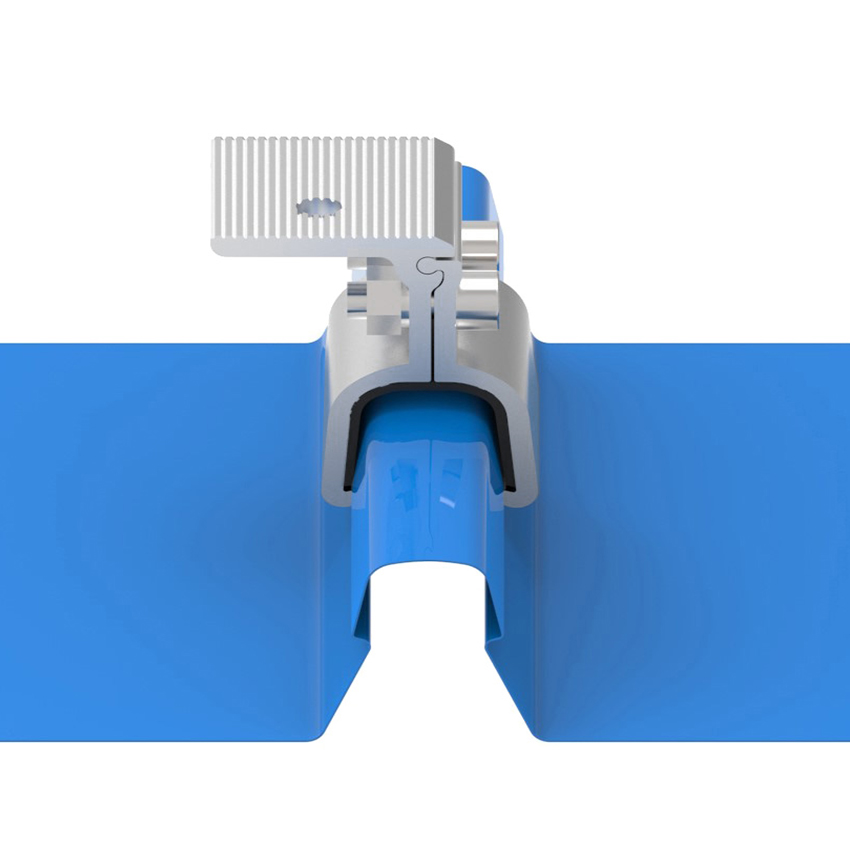

RN7-SW-5-C009
RN7-SW-5-D001
RN7-SW-5-D002
RN7-SW-5-D003
RN7-SW-1-B003
RN7-SW-1-B004
RN7-SW-1-B005

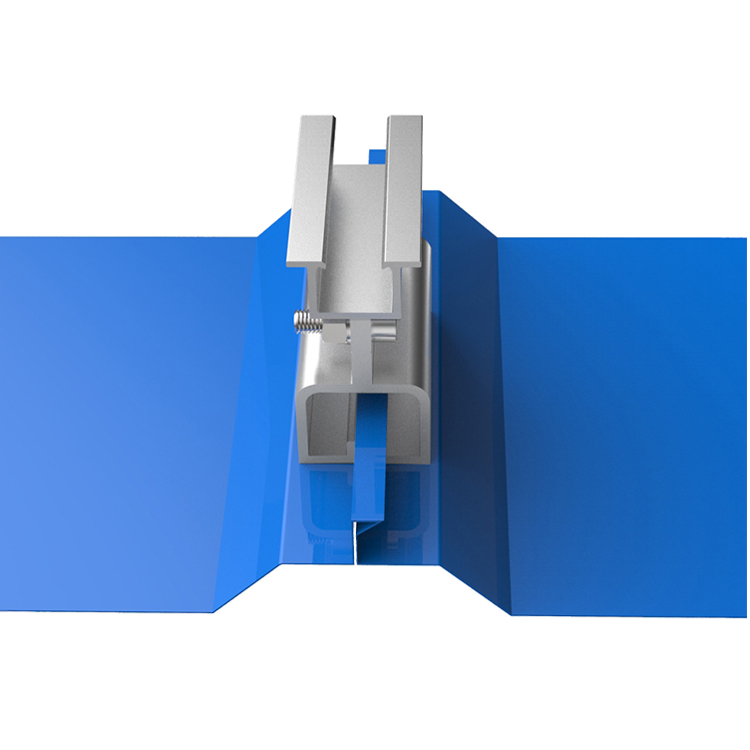

RN7-SW-1-B006

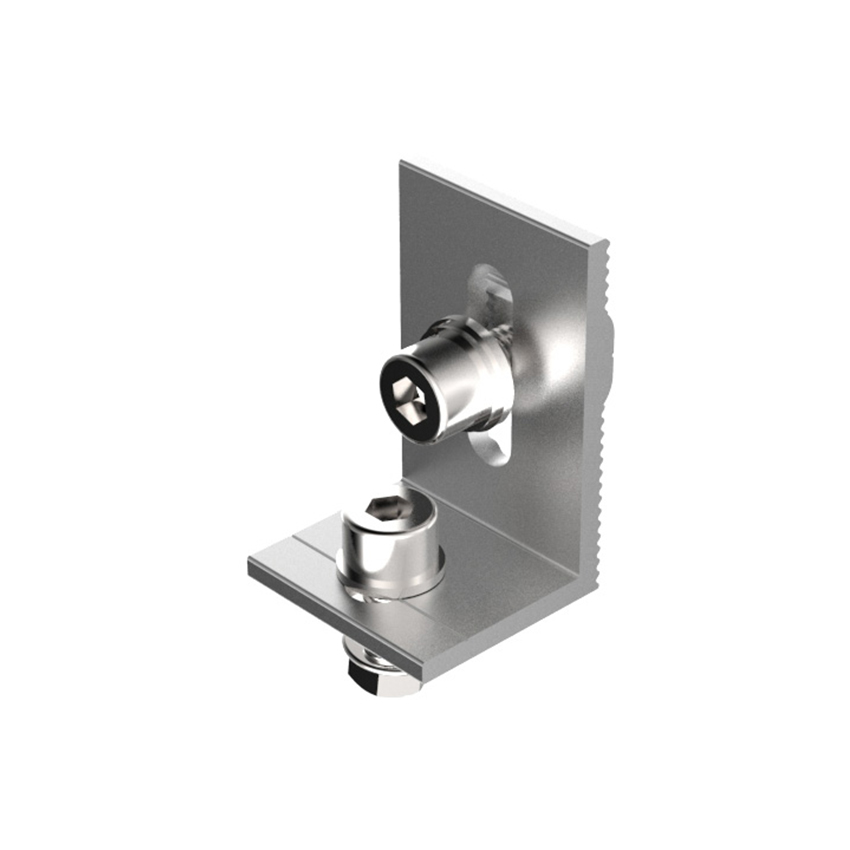

L-foot Adjustment

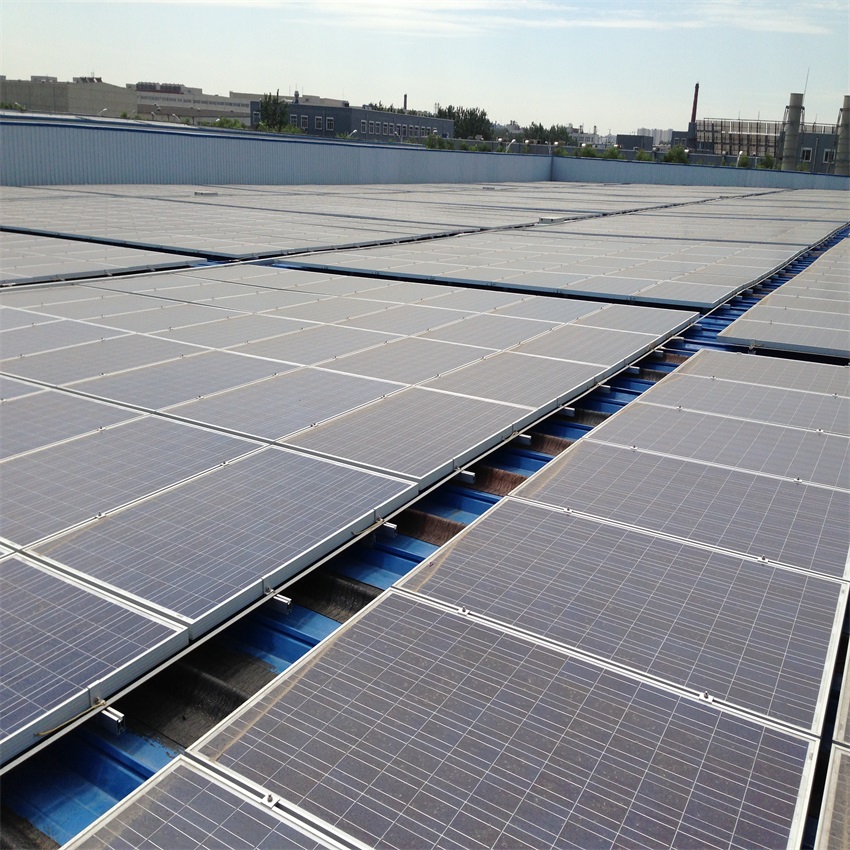

◊ Project Case
