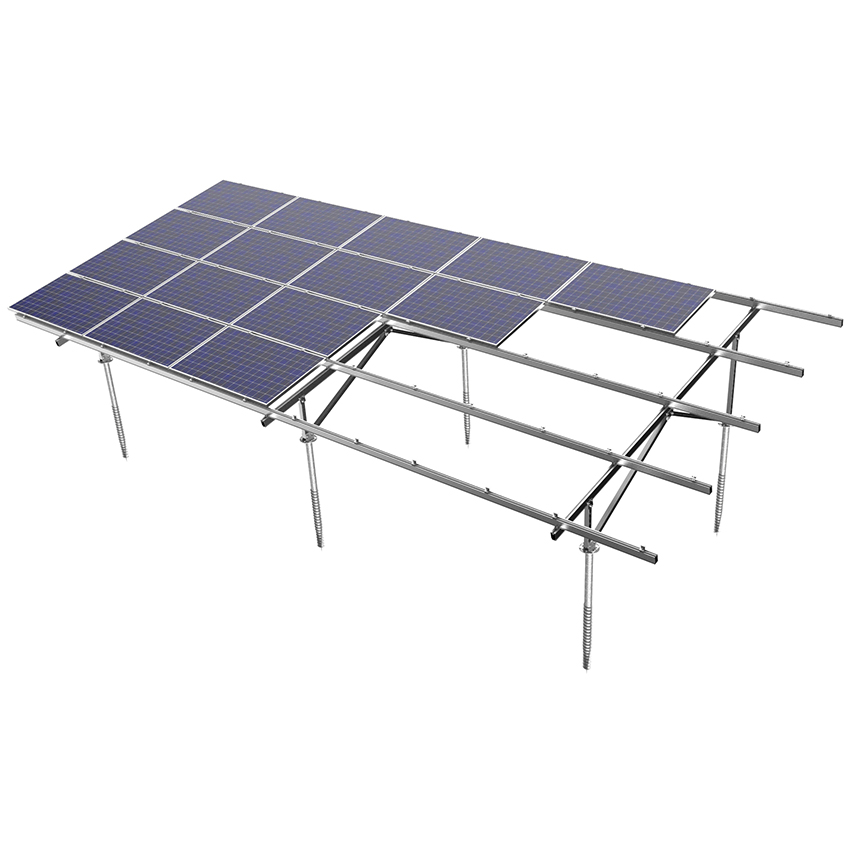

RN-4 New AL Ground Mounting System
- RN-4 New Al Ground Mounting System is widely used in large scale solar projects.
- Economic and Practical
- Highly Pre-assembled structure design save on-site installation time
- Flexible and Adjustable
- Reliable and Safe
RN-4 New AL Ground Mounting System
◊ Technical Parameter
| Installation site | Ground | Material | Al-6005-T5/ SUS304 |
| Tilt Angle | 0-60° | Max Wind Force | ≦60m/s |
| Ground Clearance | ≥300 mm | Snow Load | ≦1.5KN/㎡ |
| Module Orientation | Portrait | Foundation | Concrete |
| Landscape | Ground Screw | ||
| Design Standard | AS/NZ 1170,JIS C8955 2017,DIN 1055 ,IBC 2006 | Warranty | 10 Years |
◊ Component

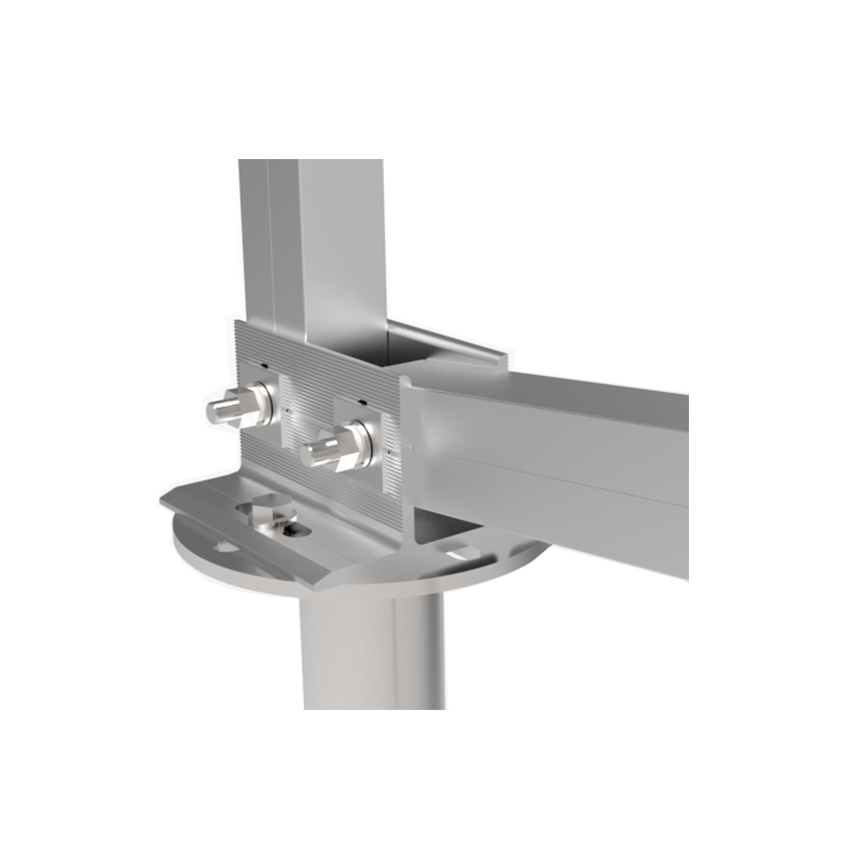

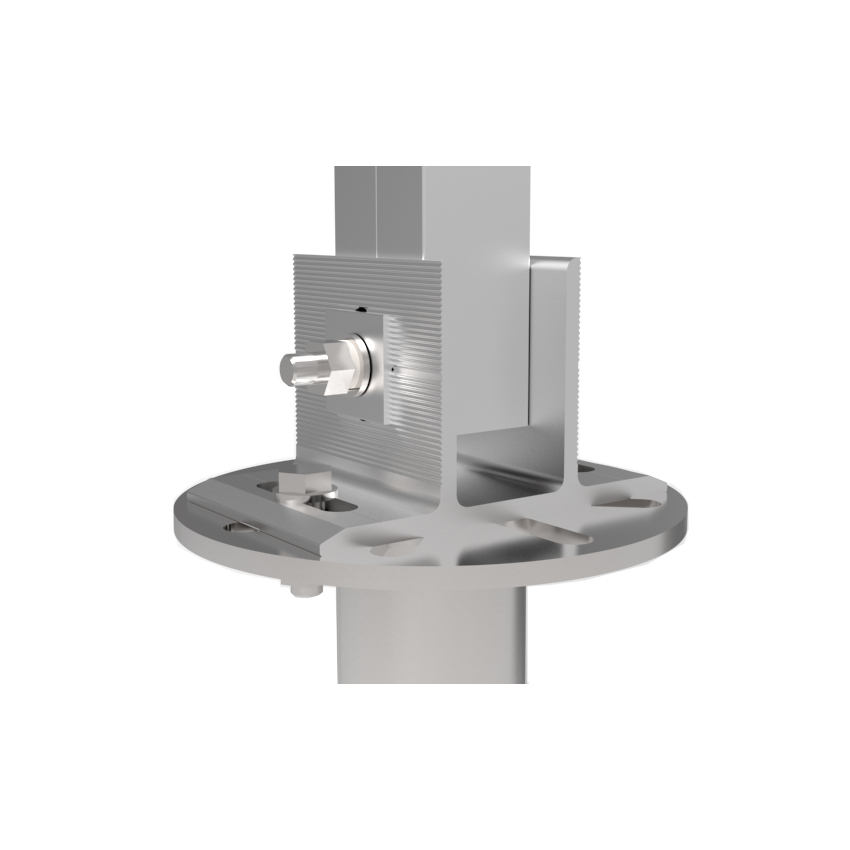

Rail Clamp
End Clamp

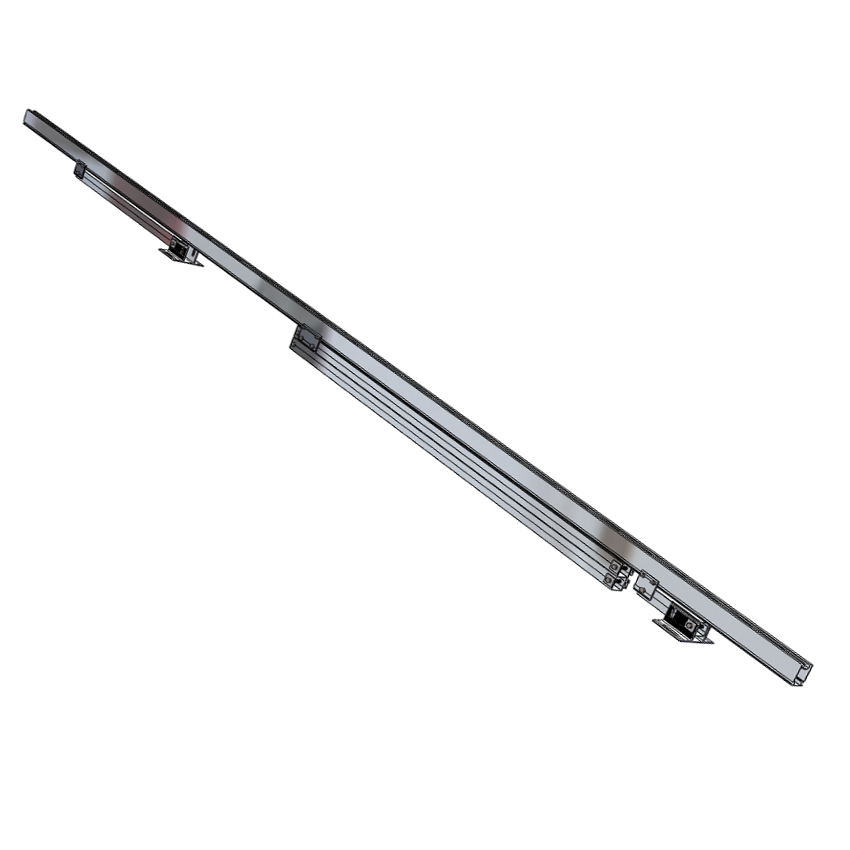

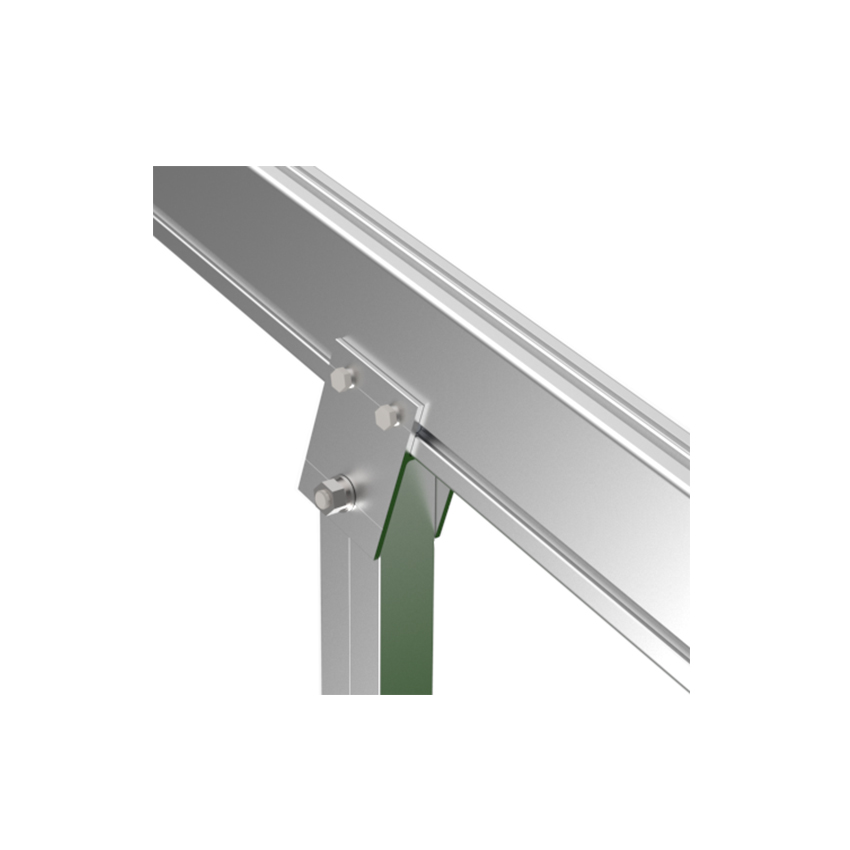

Pre-assembled Rack
Rail
Mid Clamp

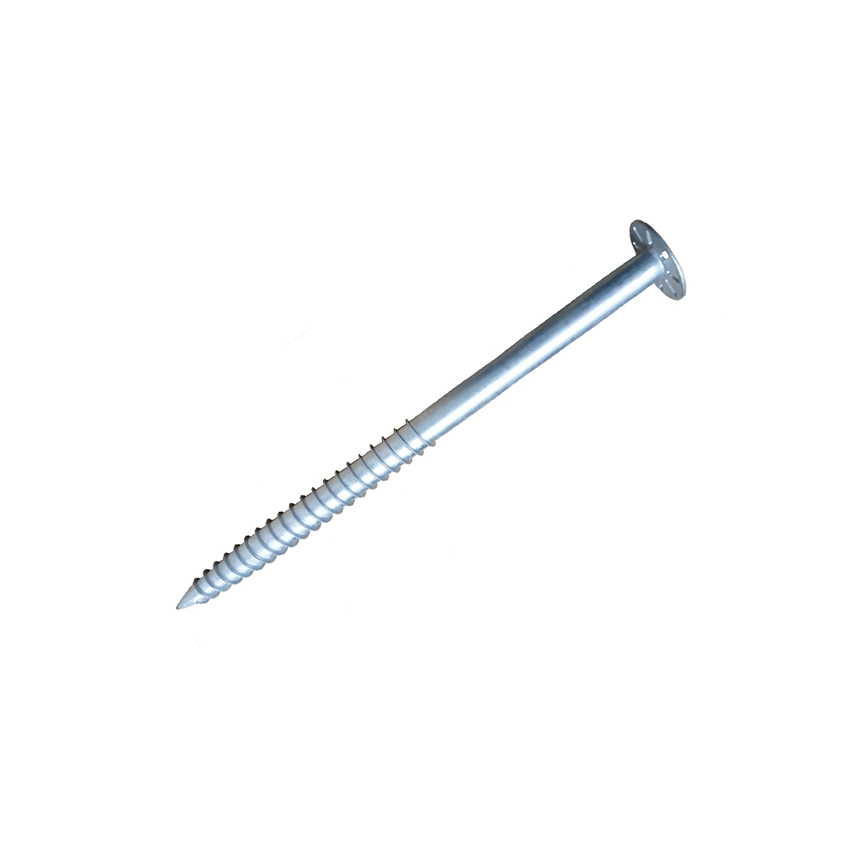

Ground Screw
◊ Installation

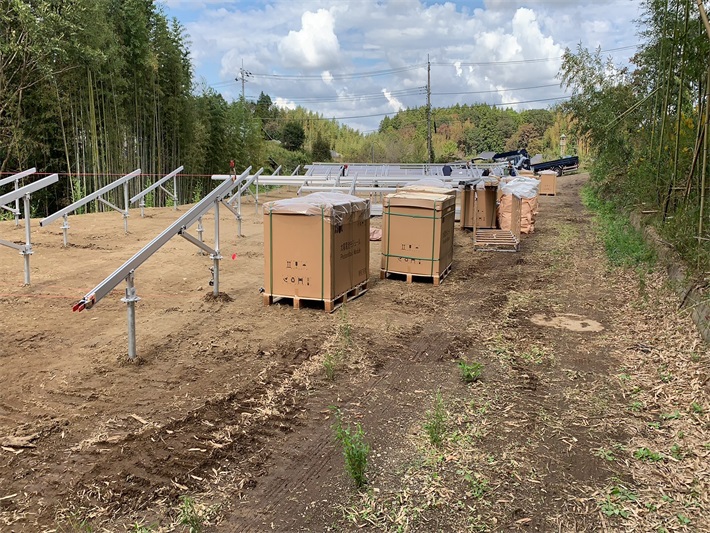

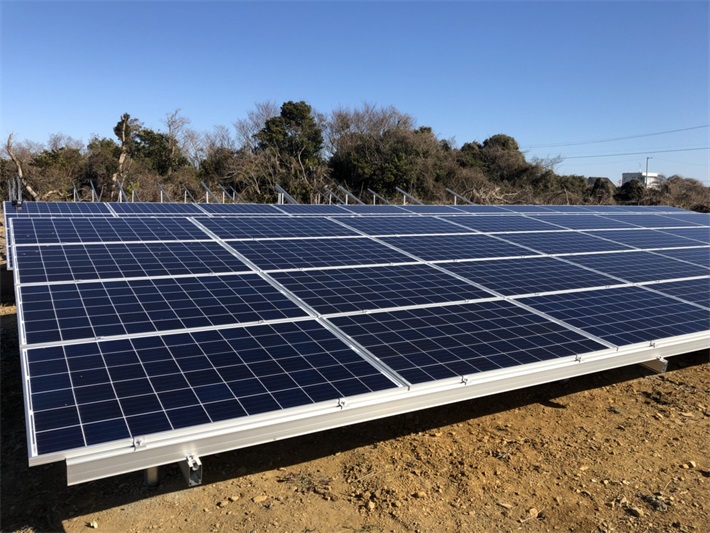

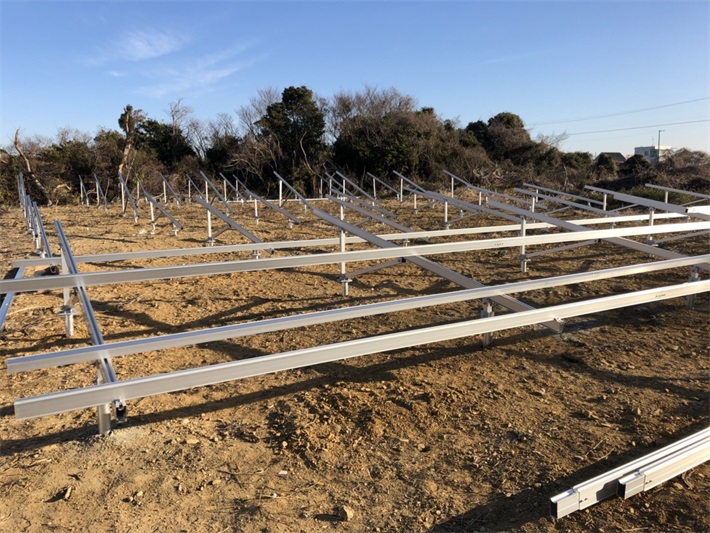

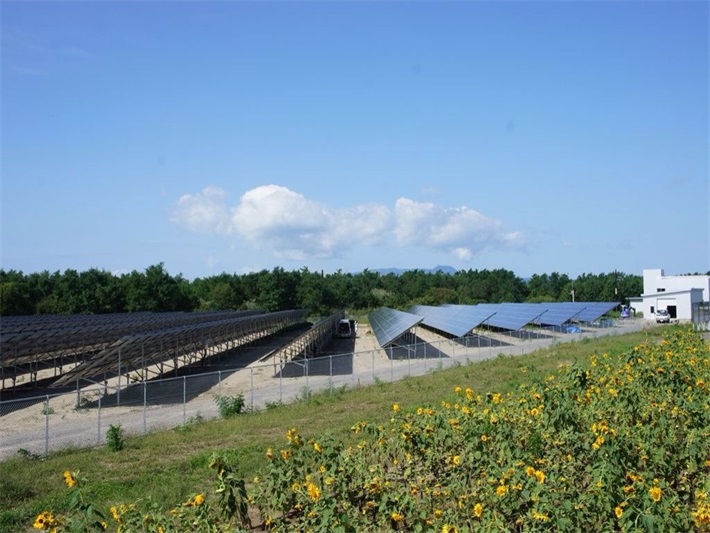

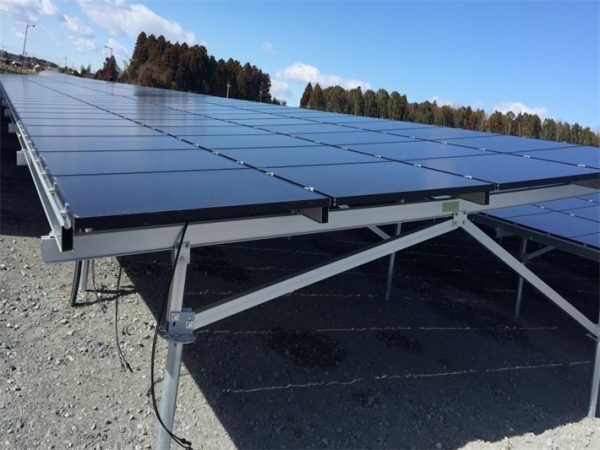

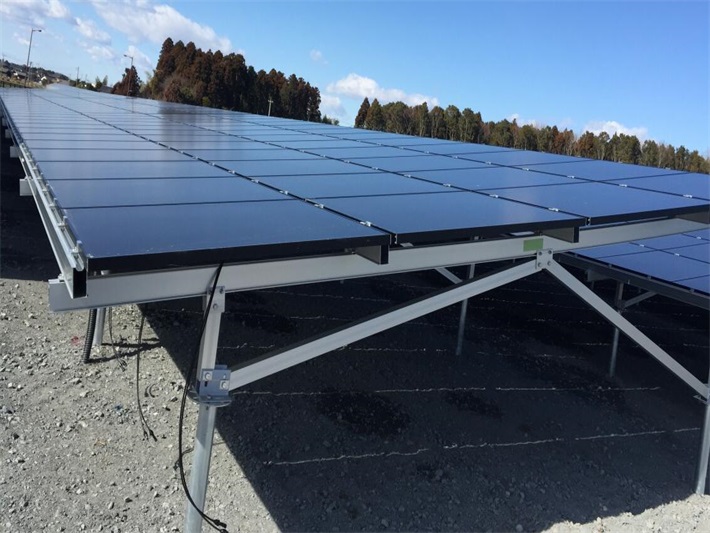

◊ Project Case
