RN-CSB Carbon Steel Carport Mounting System
- Waterproof Solution
- Convenient Parking
- Custom Desgin
- Double-armed Design
RN-CSB Carbon Steel Carport Mounting System

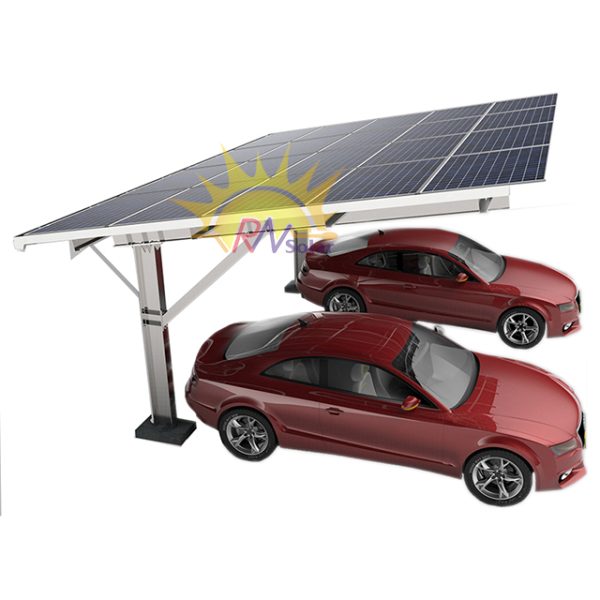

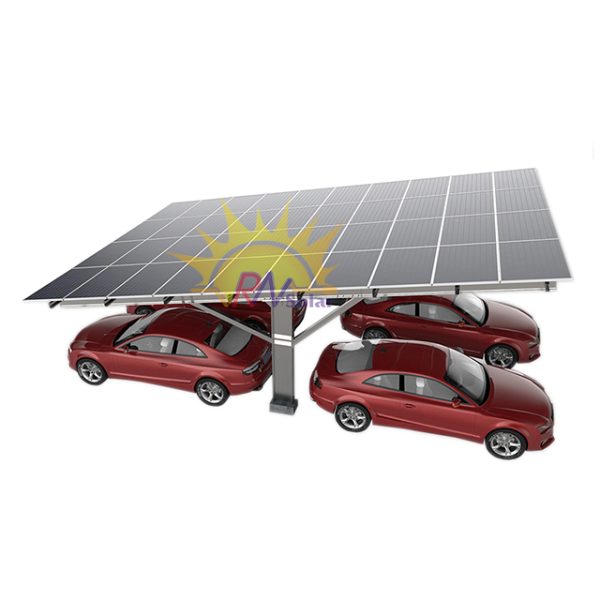

RN-CSB Carbon Steel Solar Carport Mounting System is a convenient parking solution. The system can be customized design for various PV modules and will be double arms or single arm design to specific solar carport projects.
◊ Technical Parameter
| Installation site | Ground | Material | Q235B (Galvanized) & SUS304 |
| Tilt Angle | 5-10° | Max Wind Force | ≦60m/s |
| Ground Clearance | 2500mm | Snow Load | ≦1.5KN/m2 |
| Module Orientation | Portrait | Foundation | Concrete |
| Landscape | Ground Screw | ||
| Design Standard | AS/NZ 1170,JIS C8955 2017,DIN 1055 ,IBC 2006 | Warranty | 10 Years |
◊ Component
Mid Clamp
End Clamp

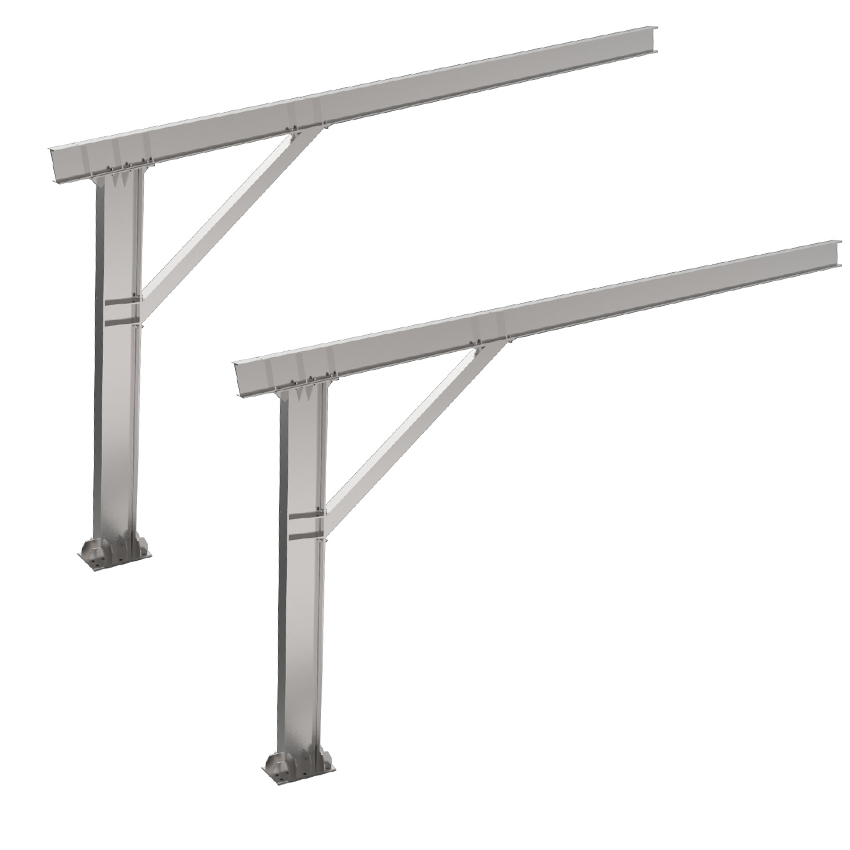

Single Arm

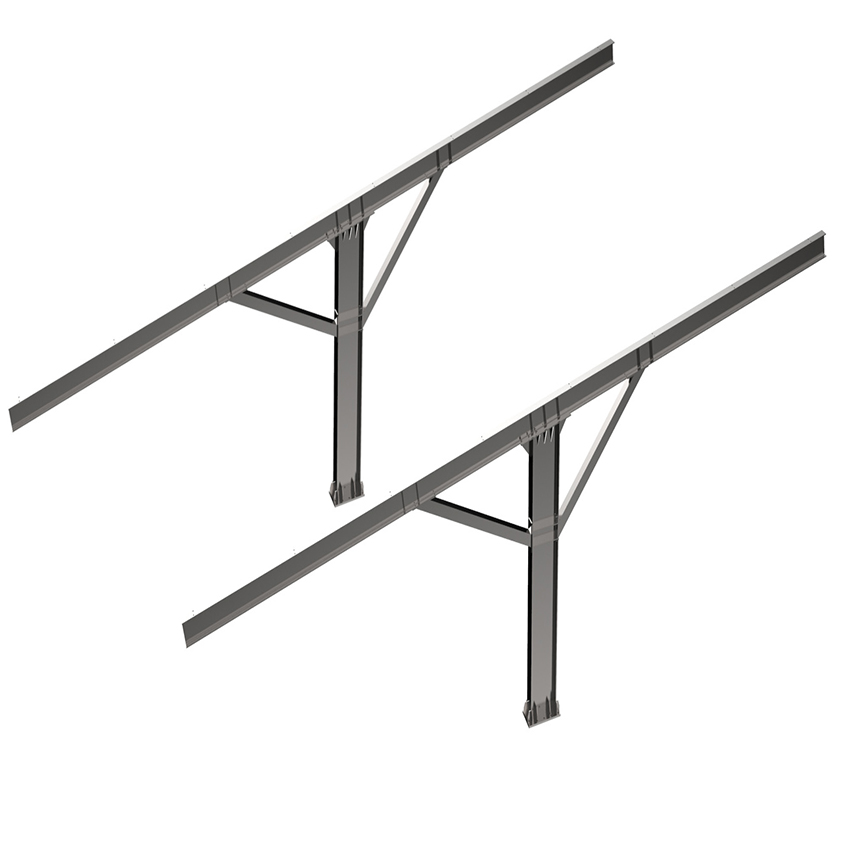

Double Arm

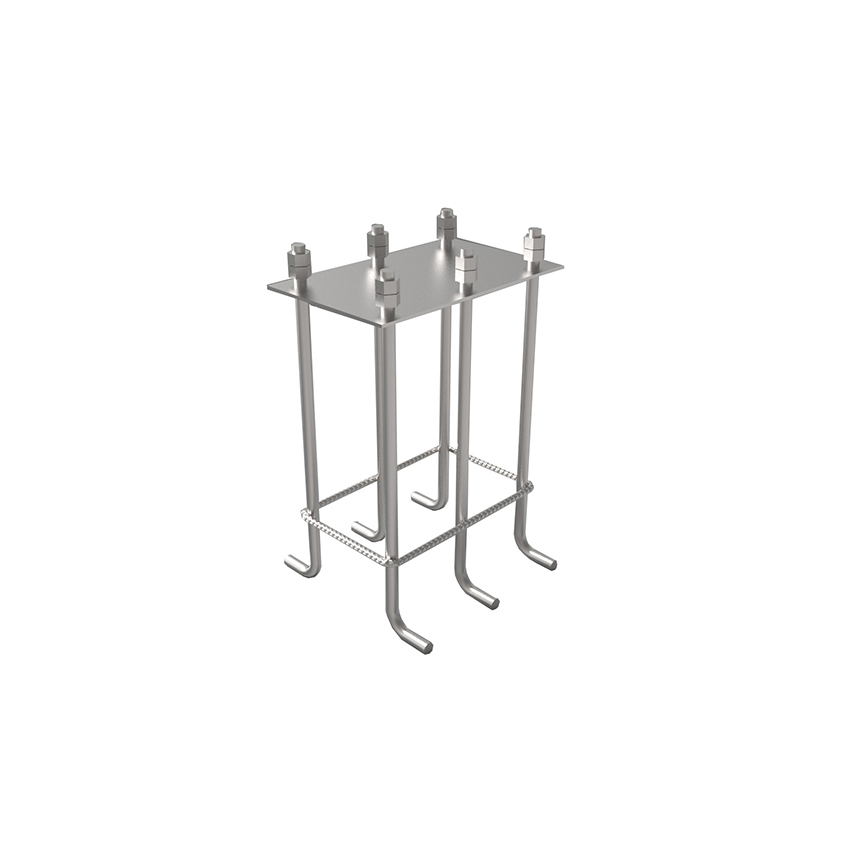

Embedded Anchor Bolt

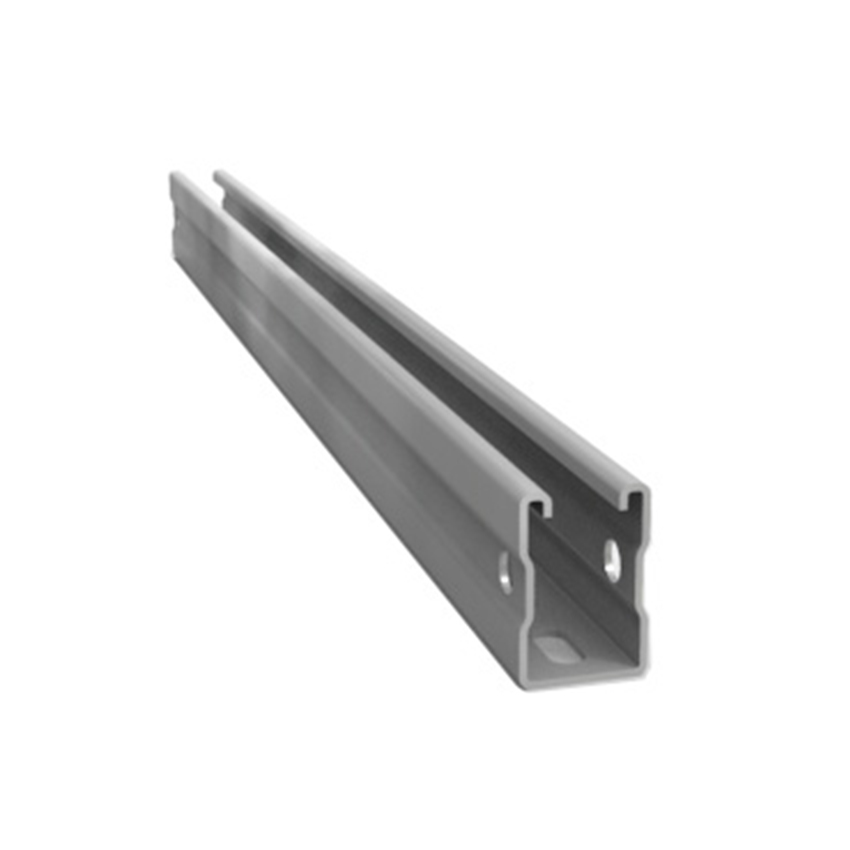

Rail for Landscape

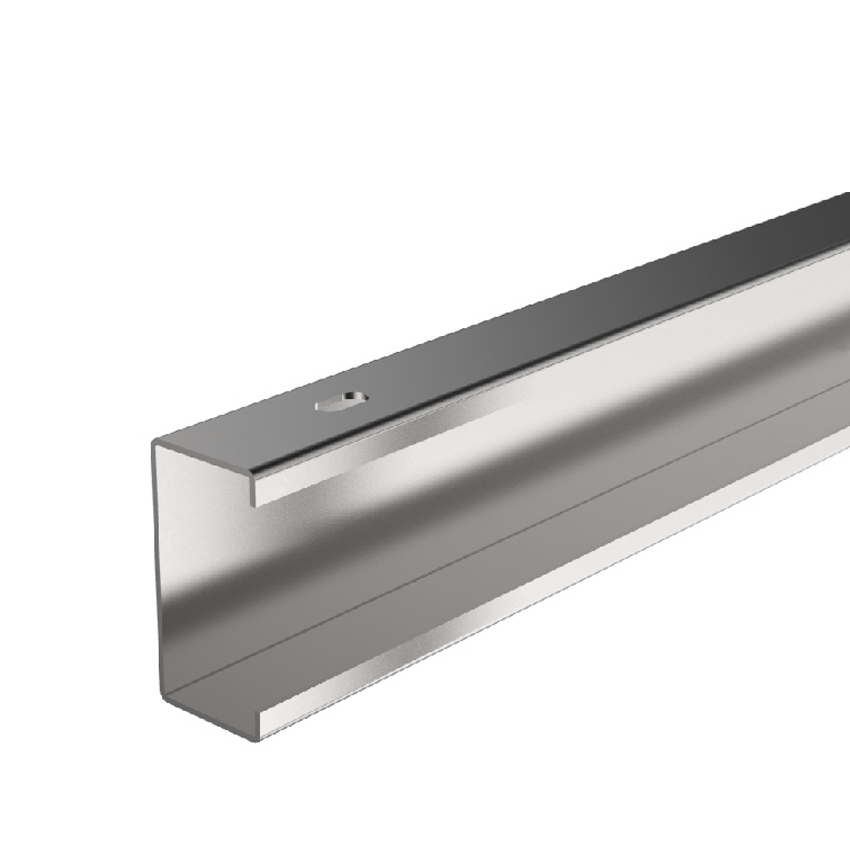

C-Steel Beam

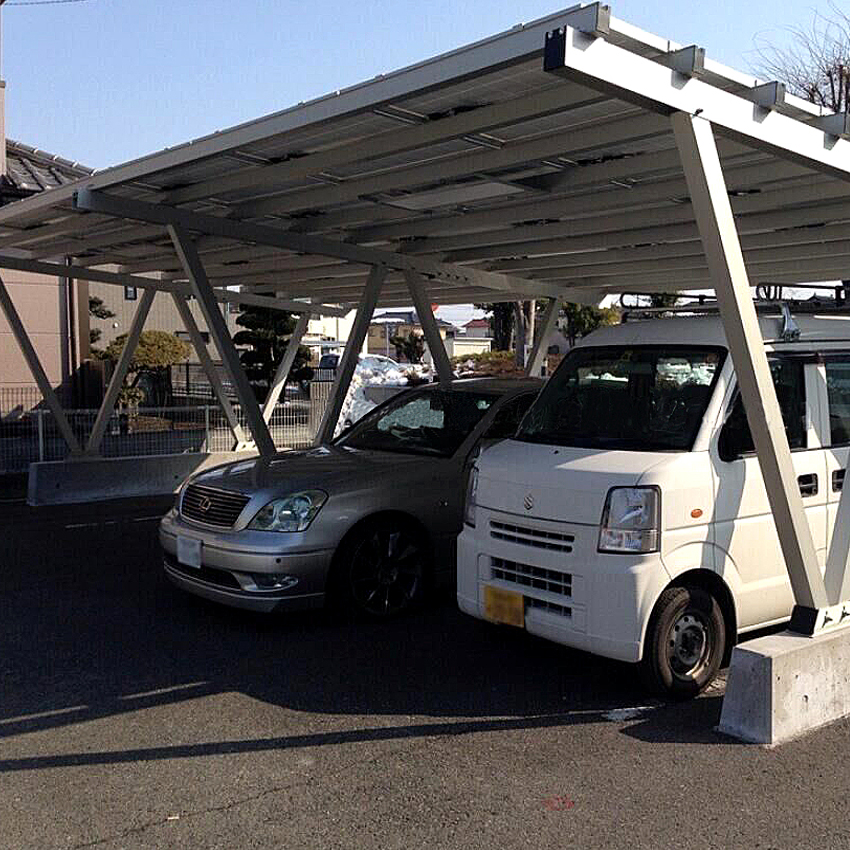

◊ Project Case
