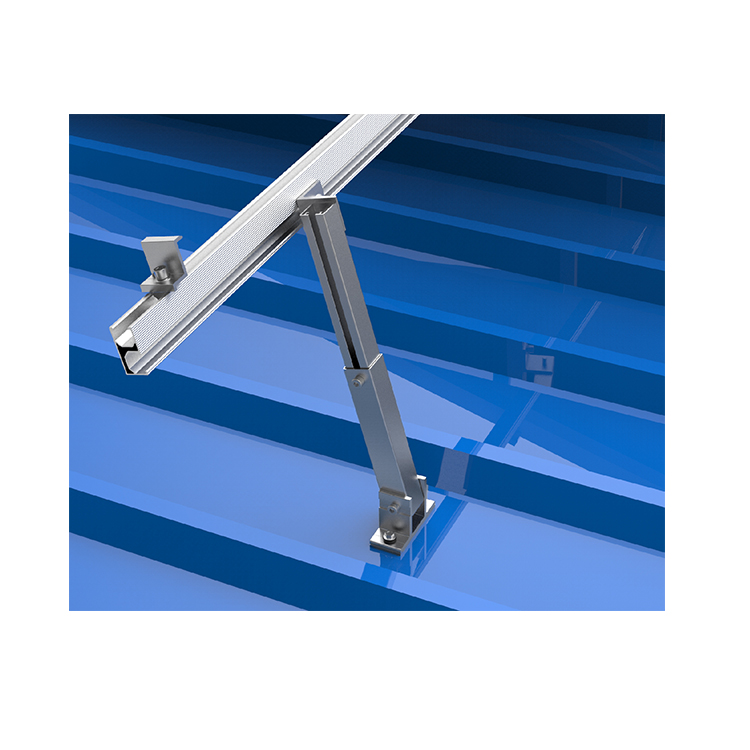

RN-7-SW-4 Adjustable Base Roof Mounting System
- Easy Installation
- Angle adjustable
- Reliability and Safety

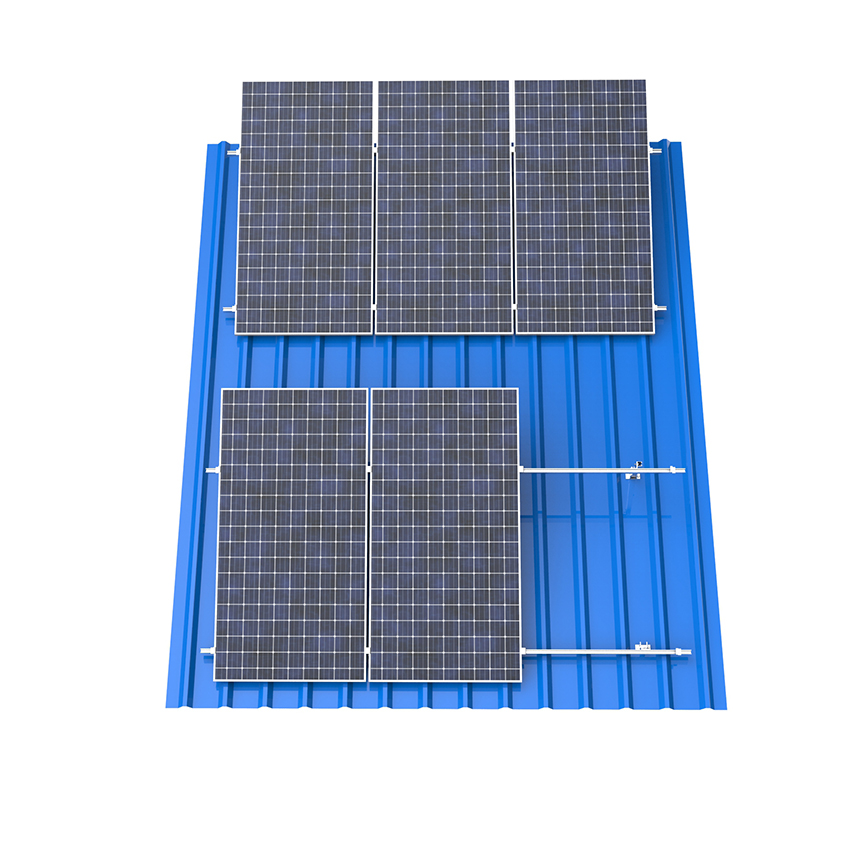

RN-7-SW-4 Adjustable Base Roof Mounting System
RN-7-SW-4 Adjustable Base Roof Mounting System enable angle adjusting,from 10°-15°,15°-30°,30°-60°,Various screws applicable for wooden or steel roof beams.
◊ Technical Parameter
| Installation site | Metal Roof/Flat Roof | Material | SUS304/AL6005-T5 |
| Tilt Angle | 10°-15°,15°-30°,30°-60° | Wind Load | ≦60m/s |
| Roof type | Trapezoidal Metal , Standing Seam , Flat,asphalt | Snow Load | ≦1.5KN/㎡ |
| Module Orientation | Portrait | Warranty | 10 Years |
| Landscape | Design Standard | AS/NZ 1170,JIS C8955 2017,DIN 1055 ,IBC 2006 |
◊ Component
Mid Clamp
End Clamp

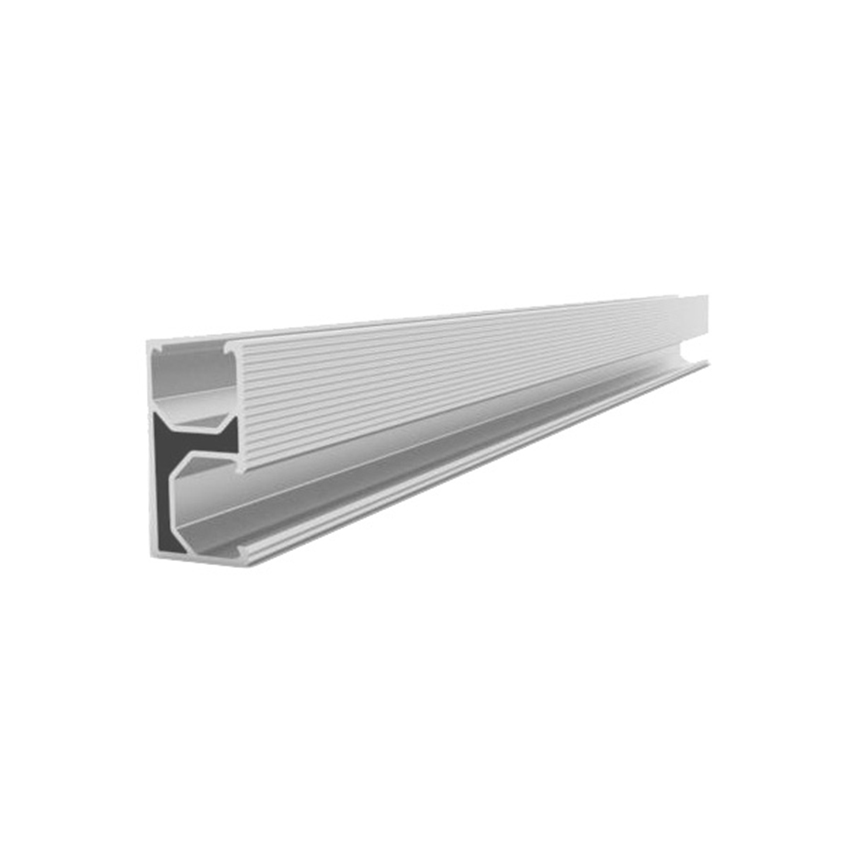

Rail
Rail Splice

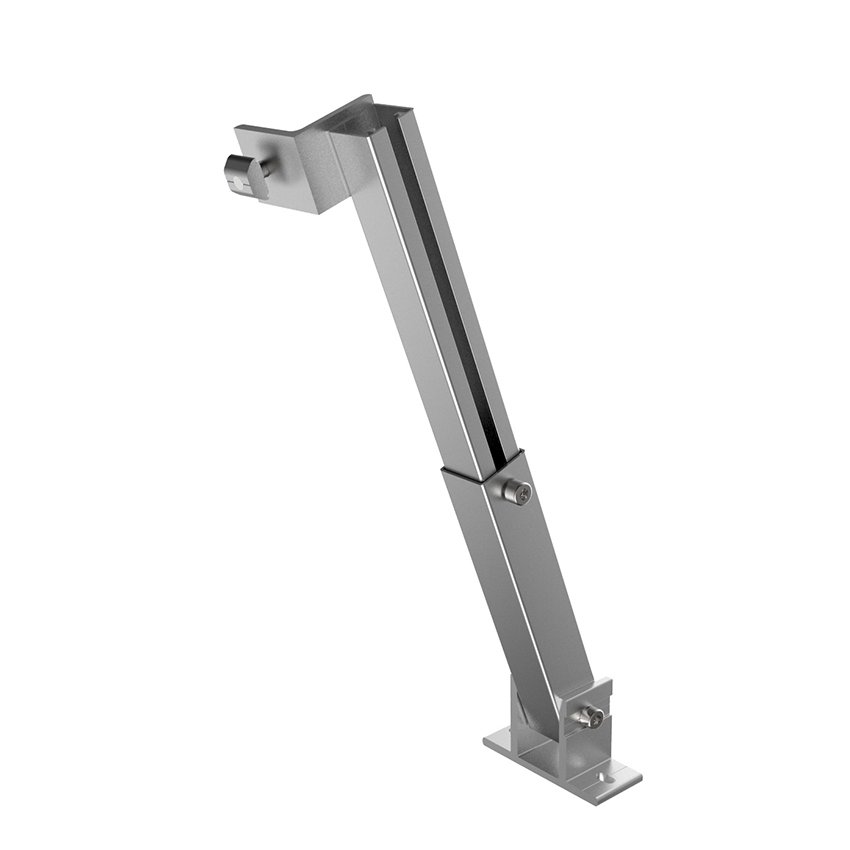

Front Base

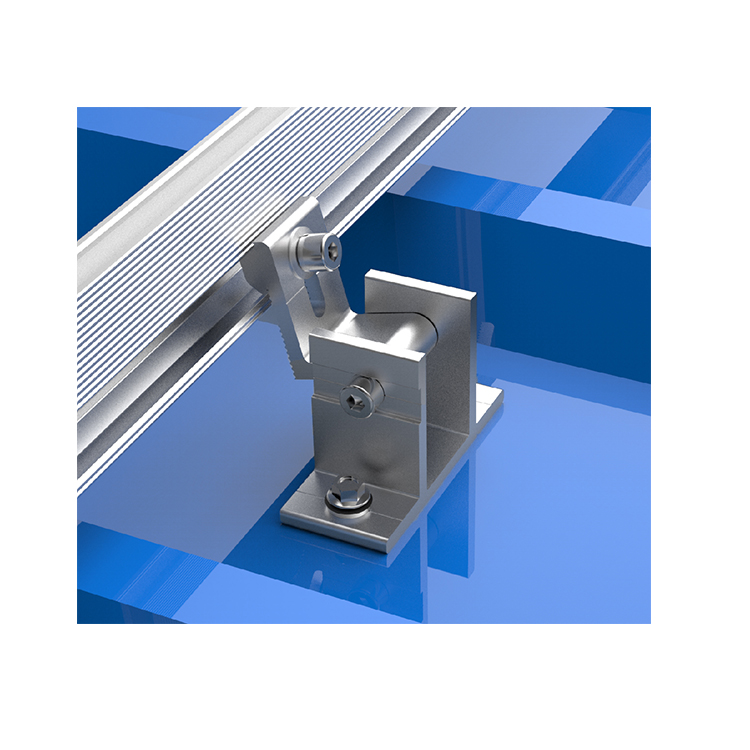

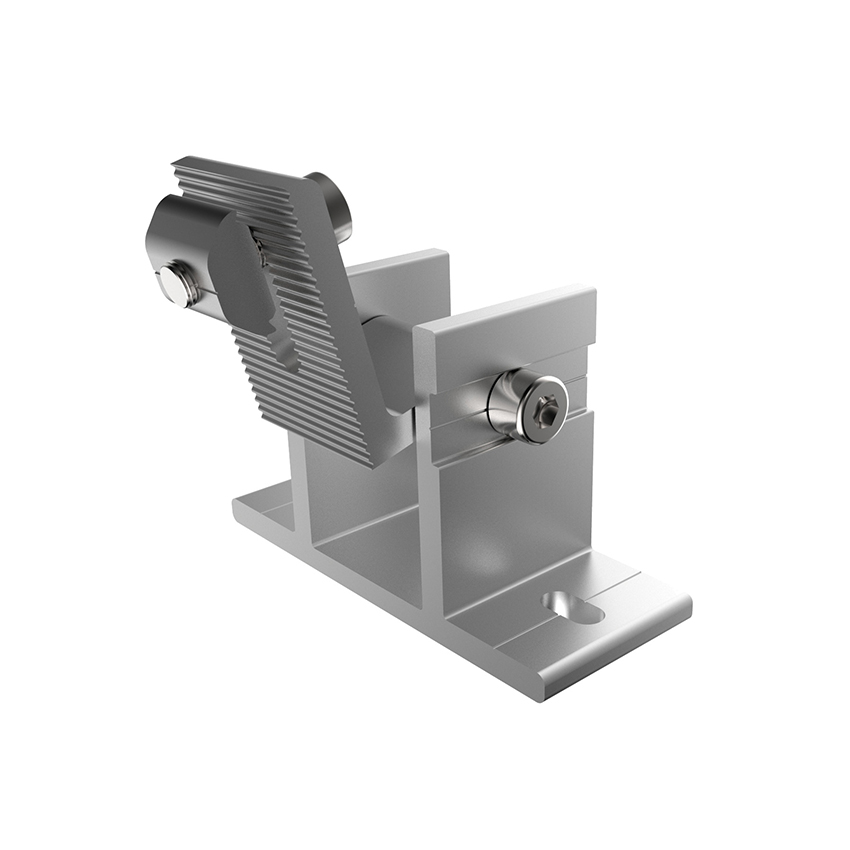

Back Base

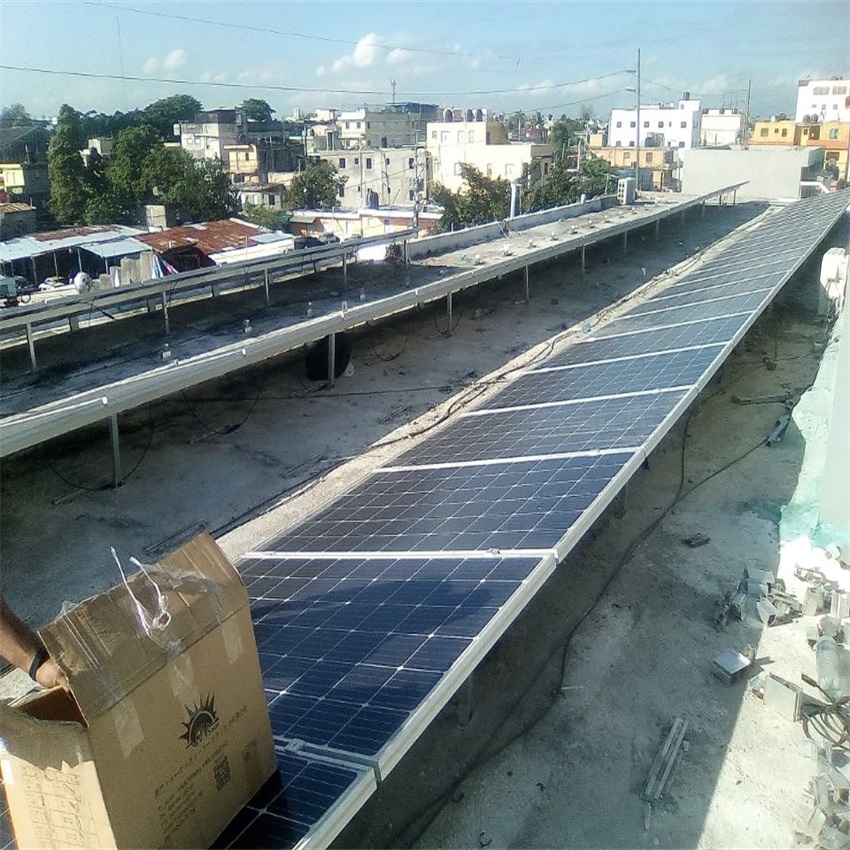

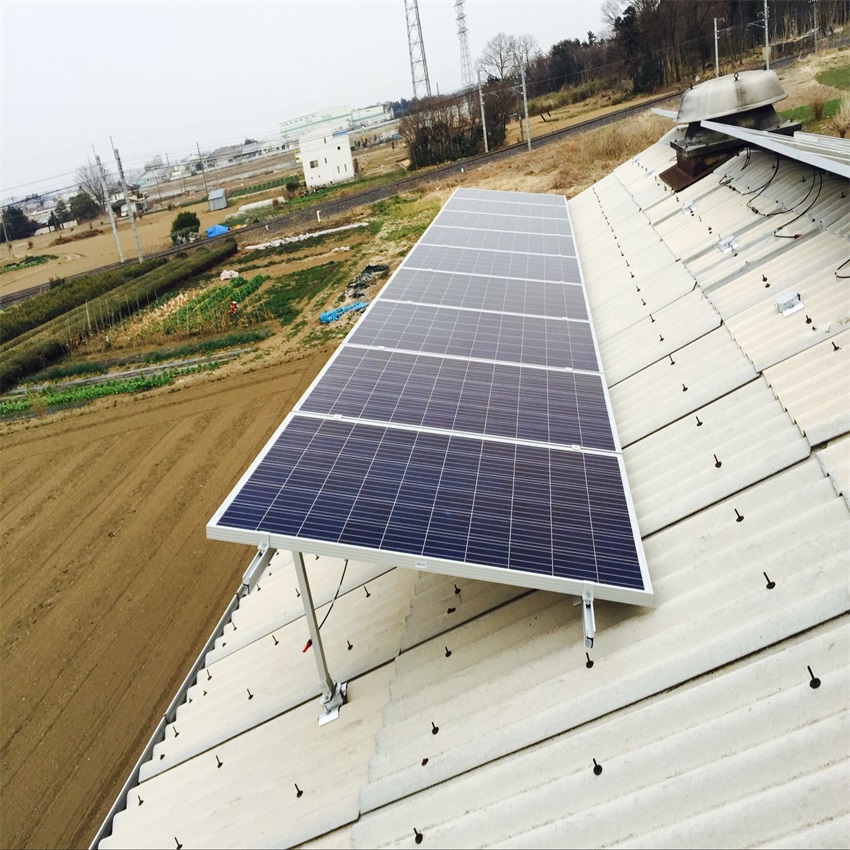

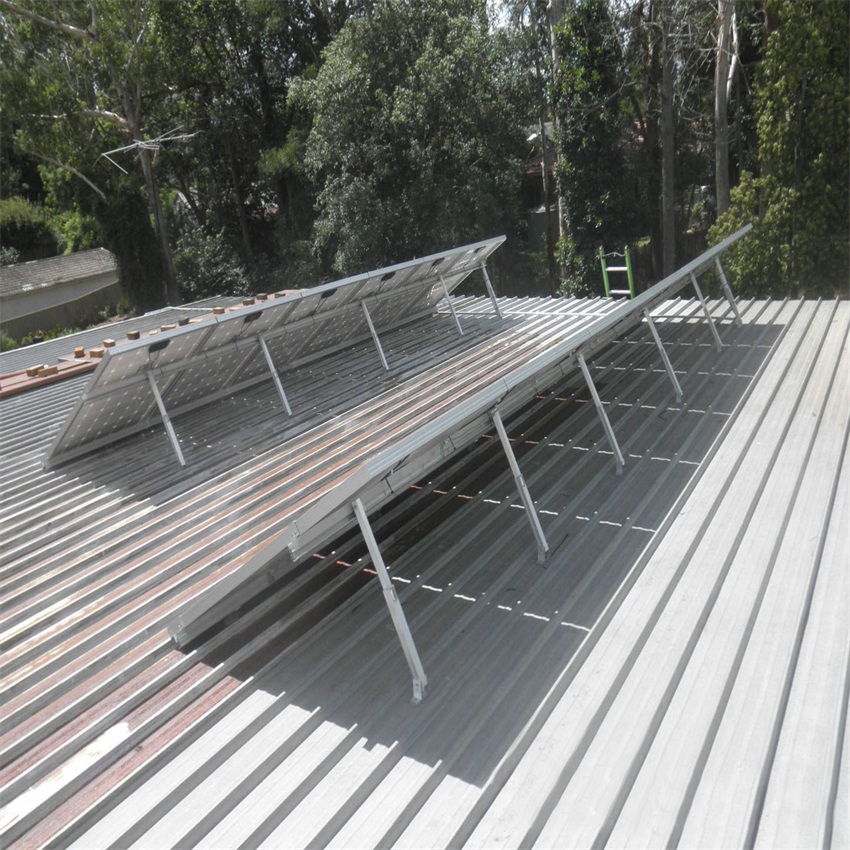

◊ Project Case
