RN-5B Flat Roof Mounting System
- Applicability:module can be flexibly installed on portrait or landscape.
- Pre-assembled components save on-sit installation time.
- Reliability and Safety

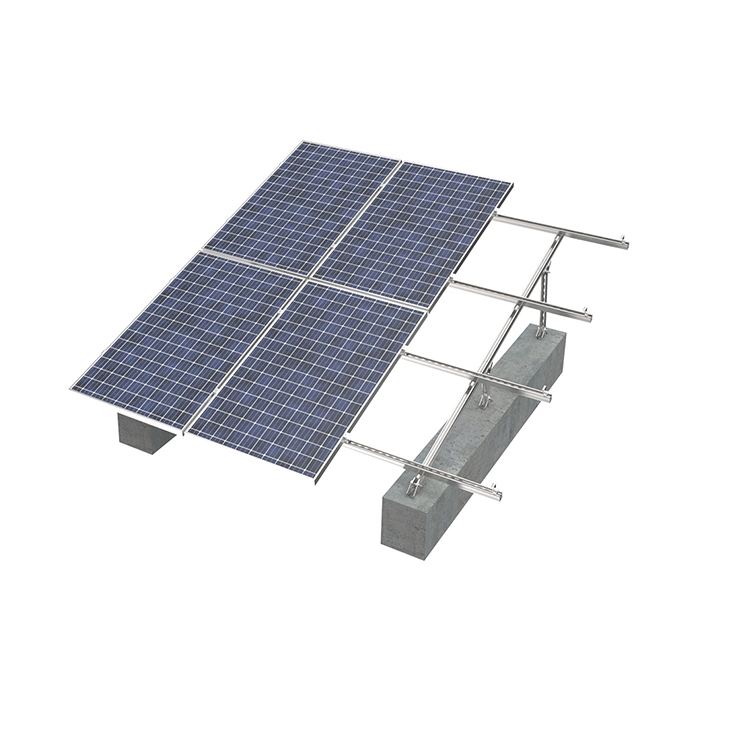

RN-5B Flat Roof Mounting System
RN-5B Flat Roof Mounting System is suitable for flat roof projects. Main components are made of hot-dip galvanized steel, with good performance of structure strength, stability and anti-corrosion.
◊ Technical Parameter
| Installation site | Flat Roof/Metal Roof | Material | SUS304 |
| Tilt Angle | 5-60° | Wind Load | ≦60m/s |
| Foundation | Ballast Concrete/Expension Bolt | Snow Load | ≦1.5KN/㎡ |
| Module Orientation | Portrait | Warranty | 10 Years |
| Landscape | Design Standard | AS/NZ 1170,JIS C8955 2017,DIN 1055 ,IBC 2006 |
◊ Component

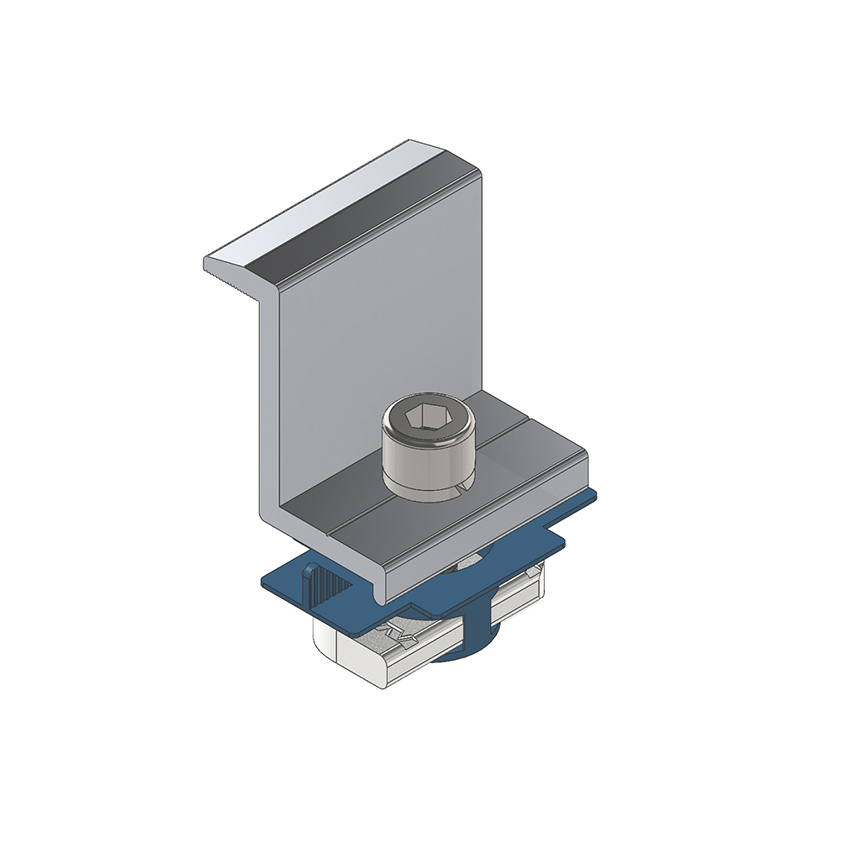

End Clamp

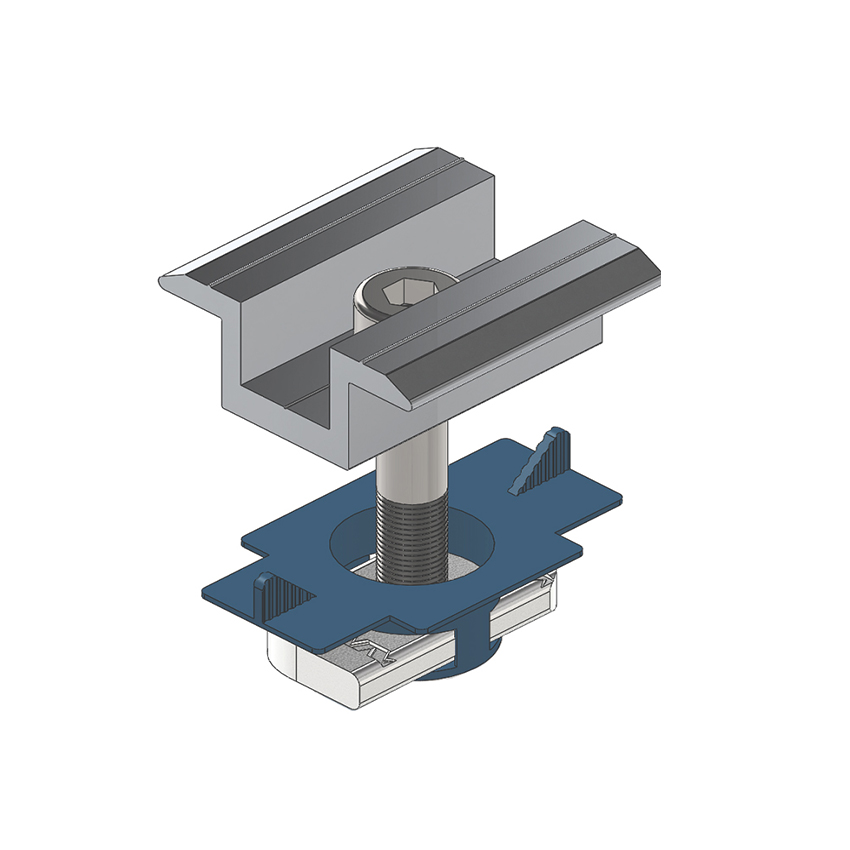

Mid Clamp

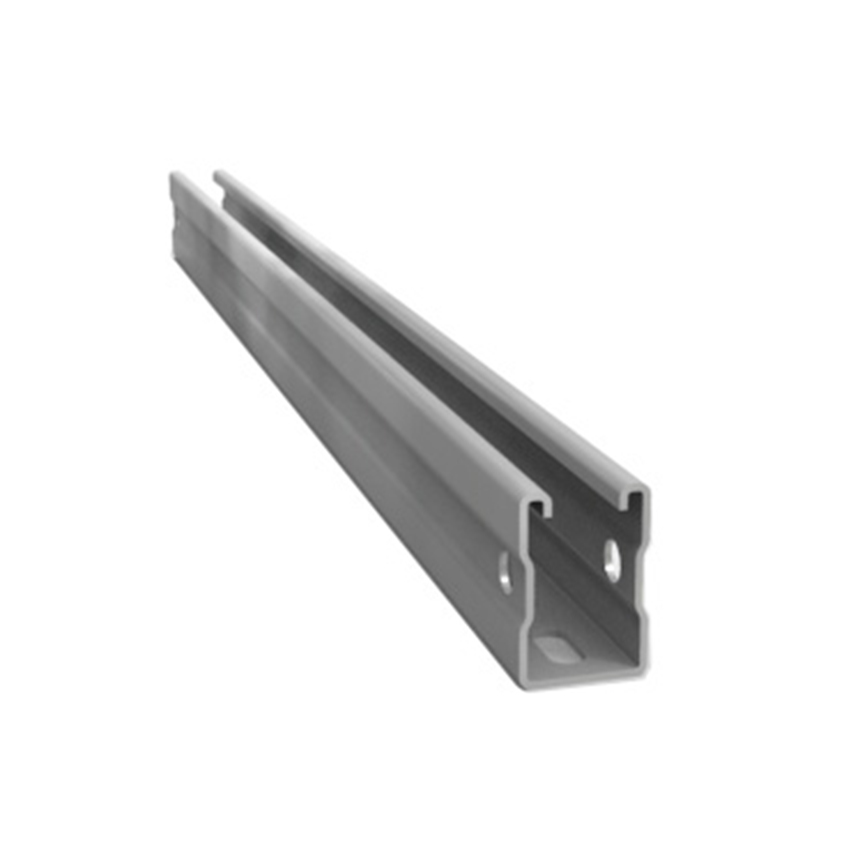

Rail

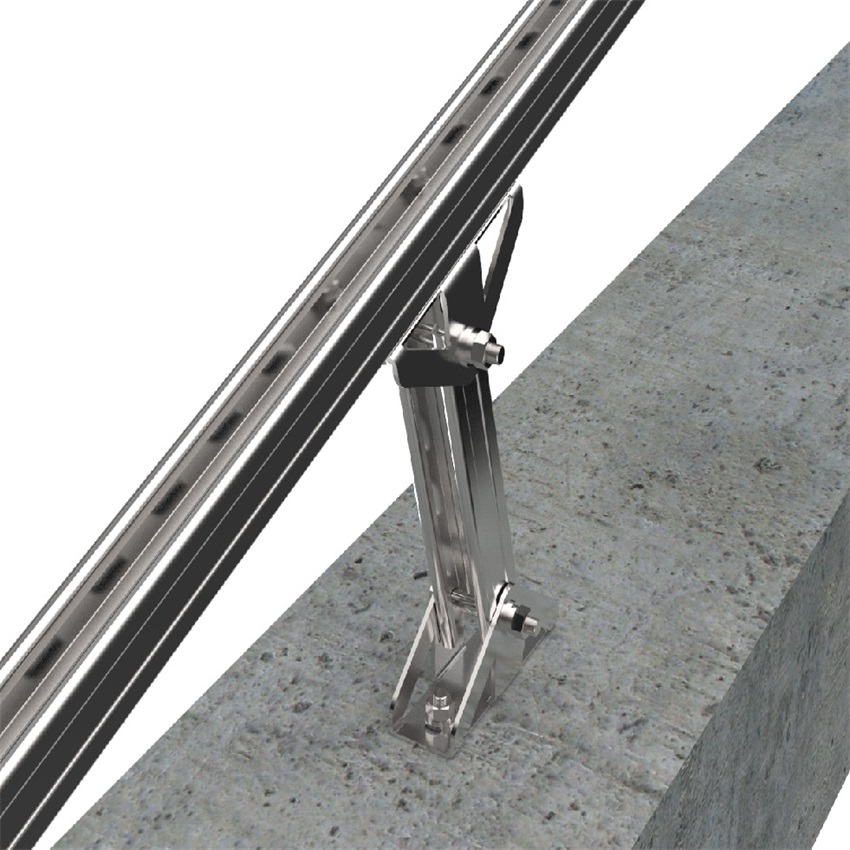

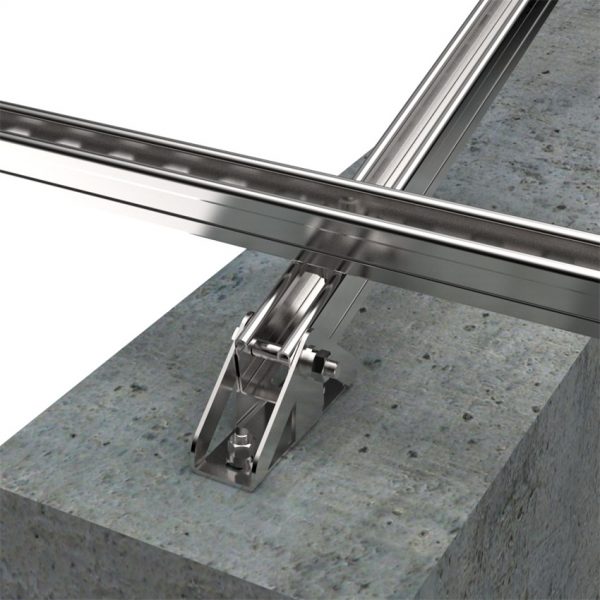

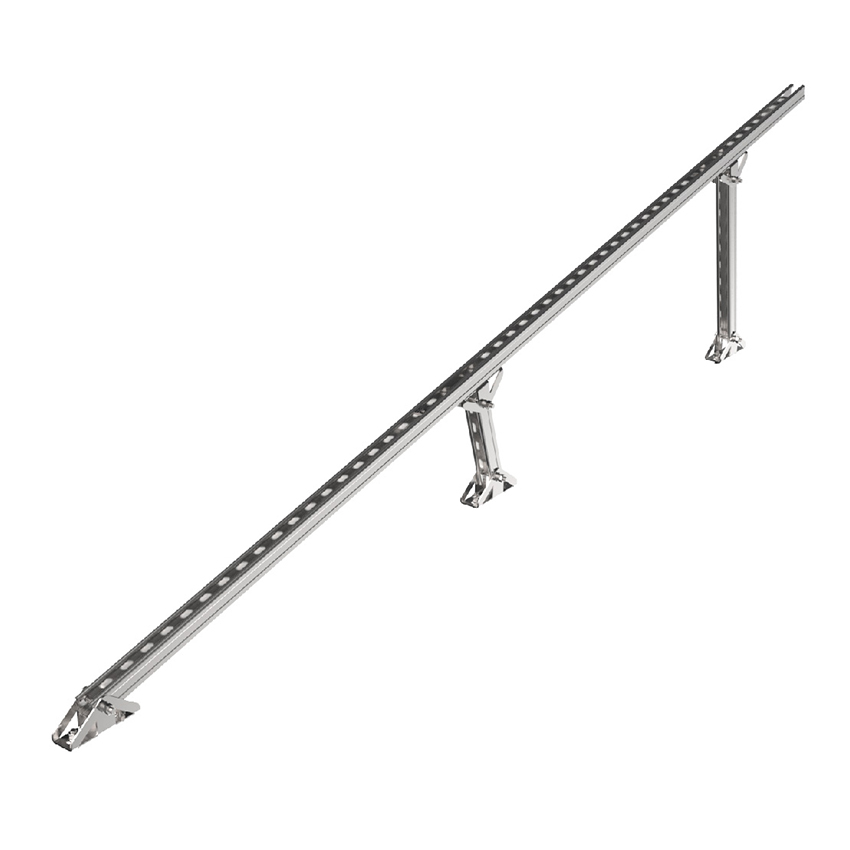

Pre-assembled Rack

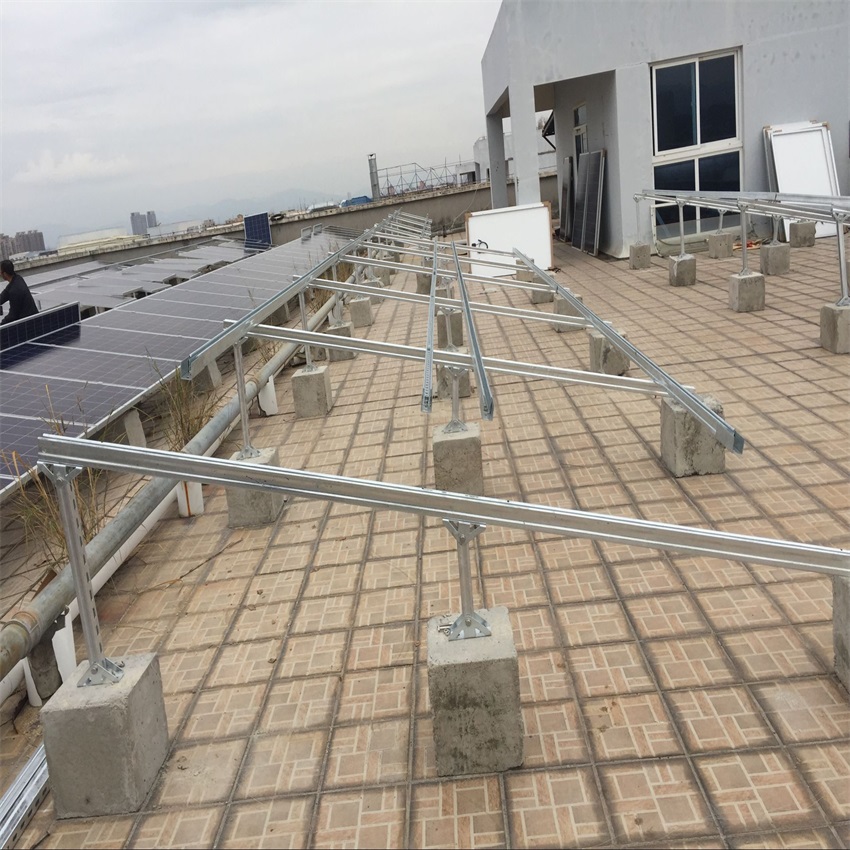

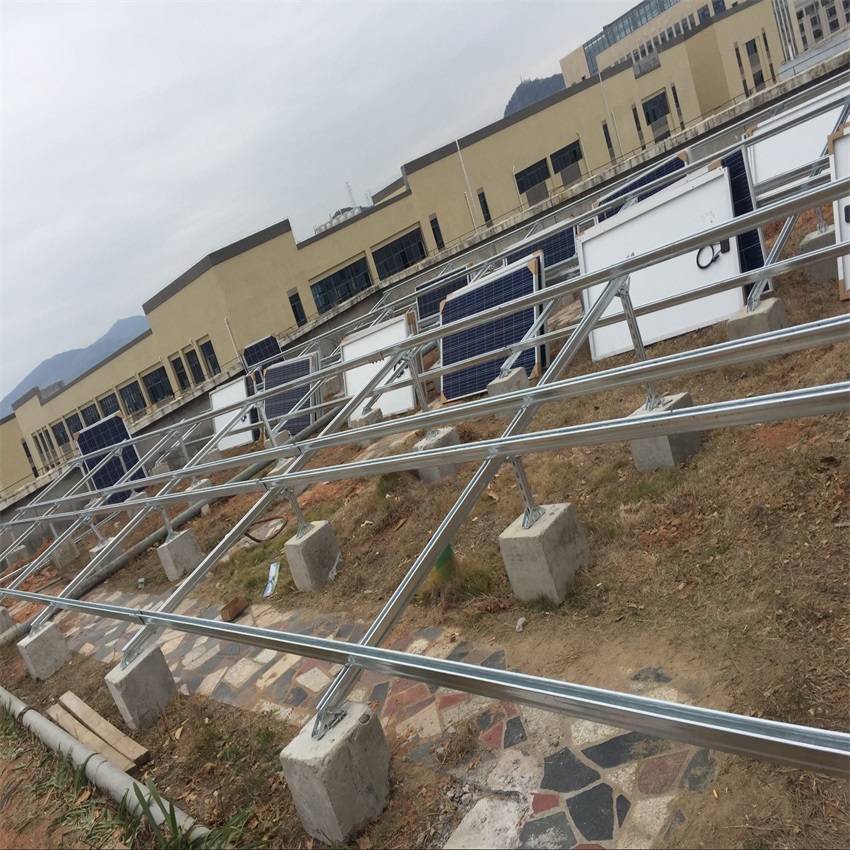

◊ Project Case
