RN-3D C-Carbon Steel Ground Mounting System
- Economic and Practical
- Easy and Flexible Installation
- High Durability

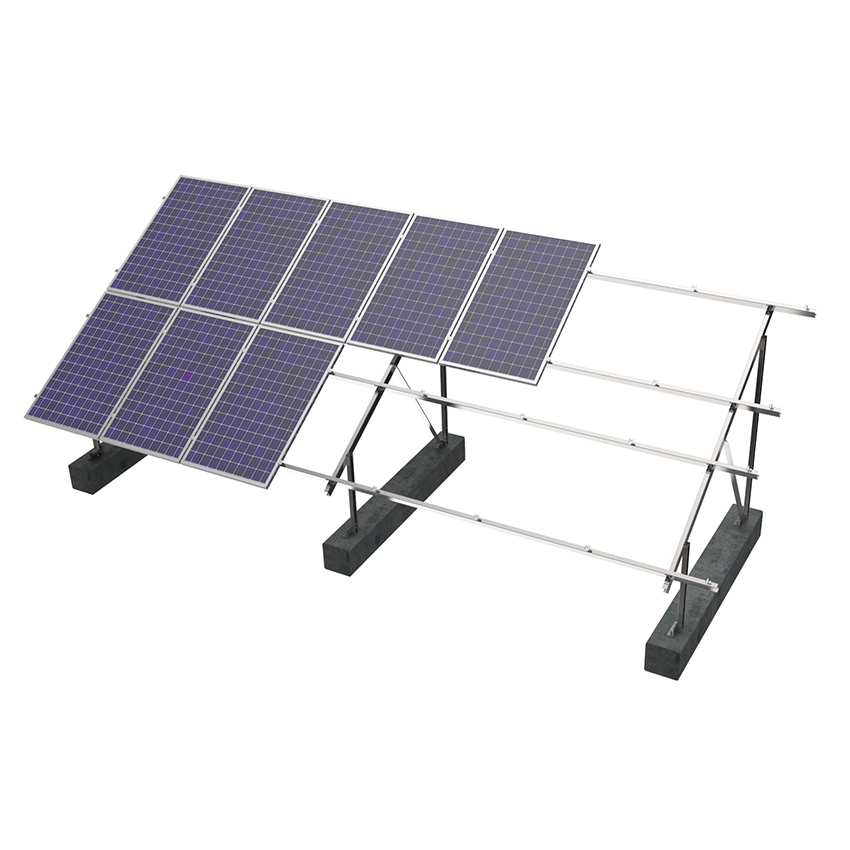

RN-3D C-Carbon Steel Ground Mounting System
RN-3D C-Carbon Steel Ground Mounting System is widely used in large scale solar projects.
◊ Technical Parameter
| Installation site | Ground | Material | Q235B/ SUS304 |
| Tilt Angle | 0-60° | Max Wind Force | ≦60m/s |
| Ground Clearance | ≥300 mm | Snow Load | ≦1.5KN/㎡ |
| Module Orientation | Portrait | Foundation | Concrete |
| Landscape | Ground Screw | ||
| Design Standard | AS/NZ 1170,JIS C8955 2017,DIN 1055 ,IBC 2006 | Warranty | 10 Years |
◊ Component

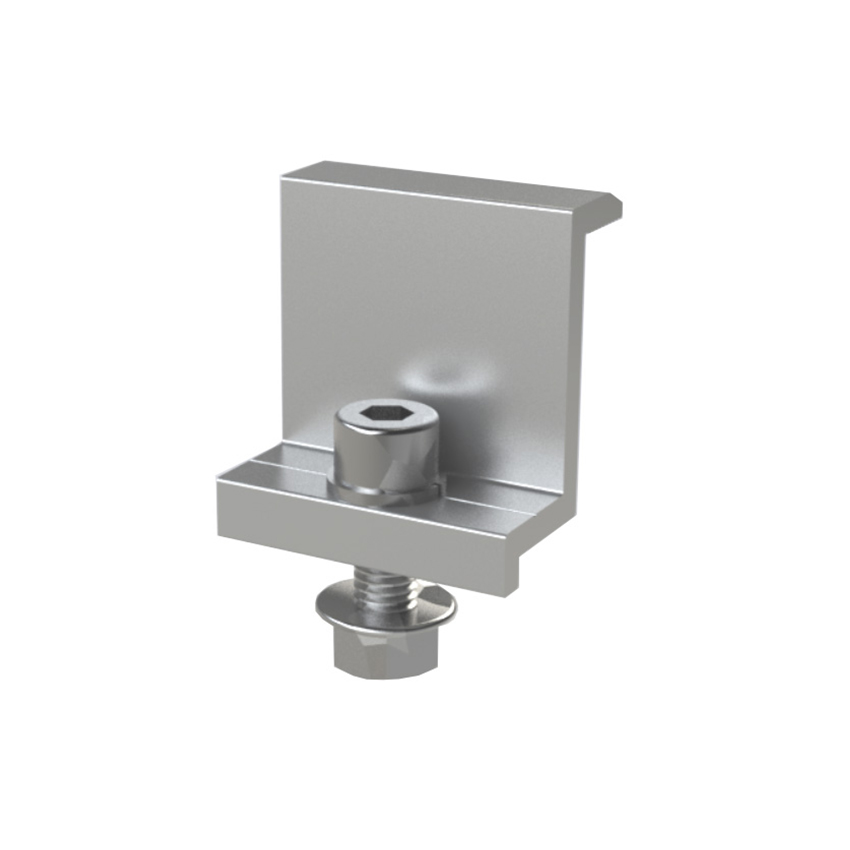

End Clamp

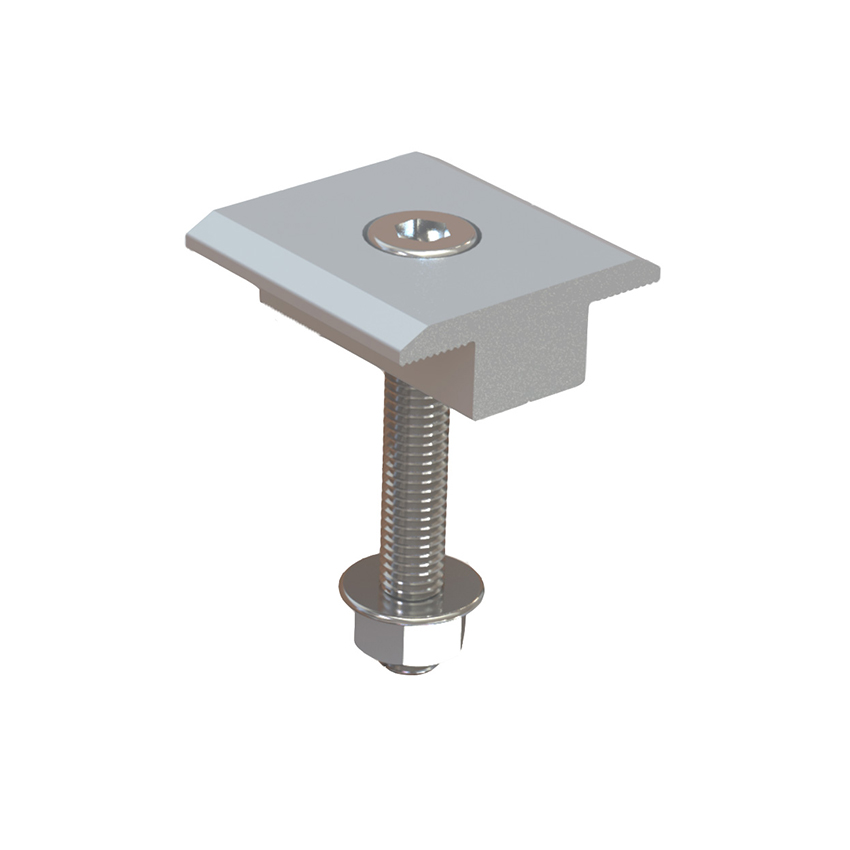

Mid Clamp

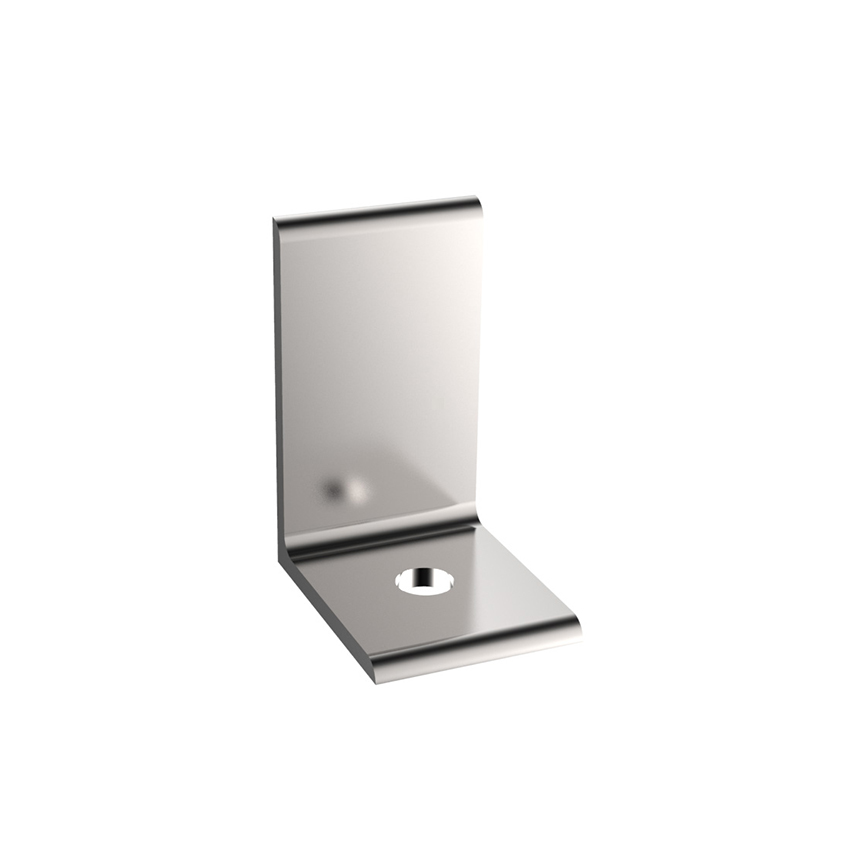

Support Plate

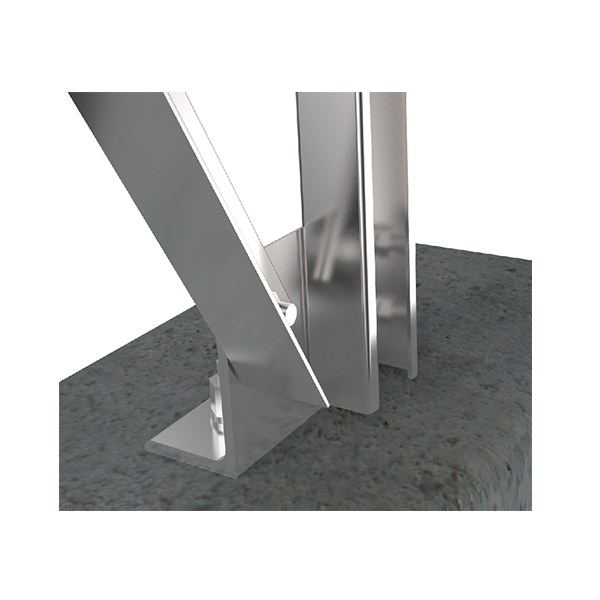

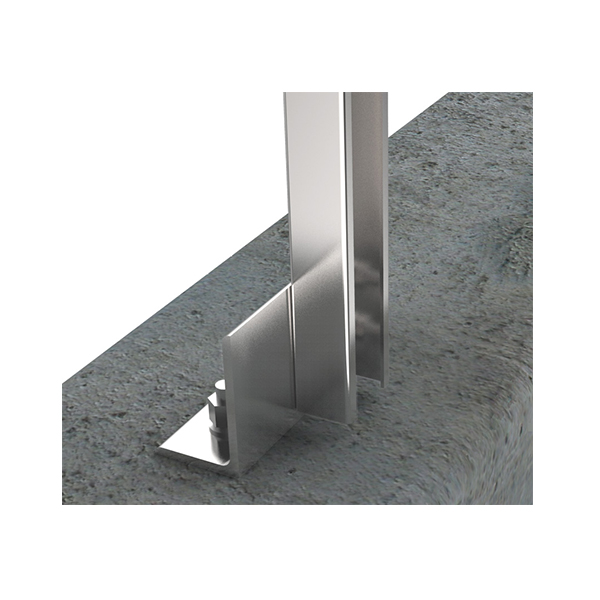

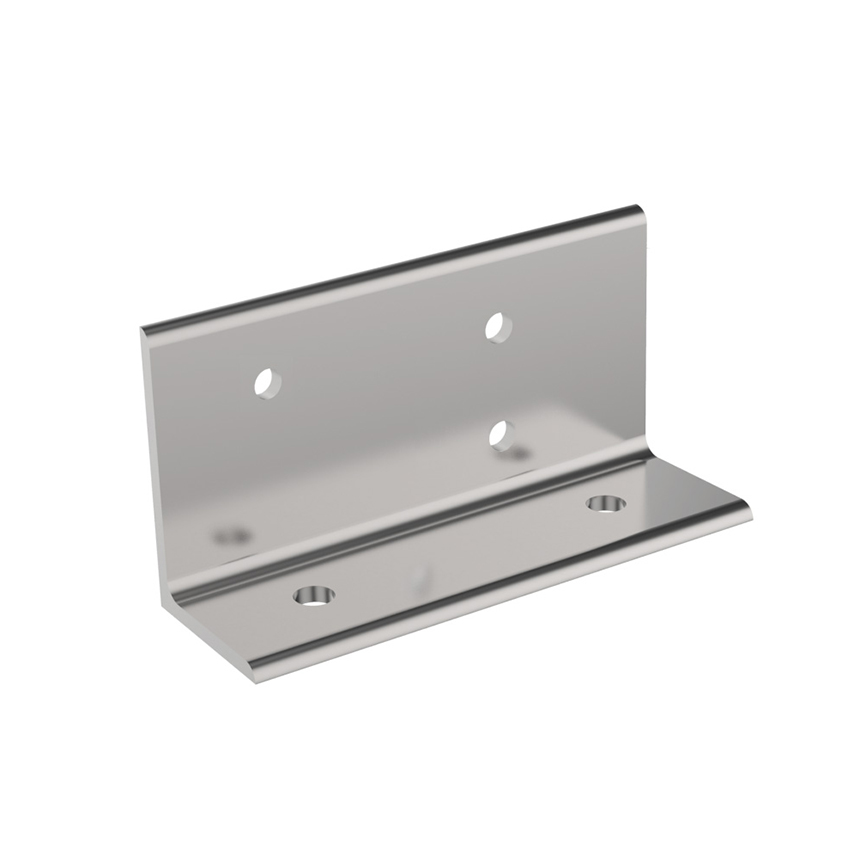

Base

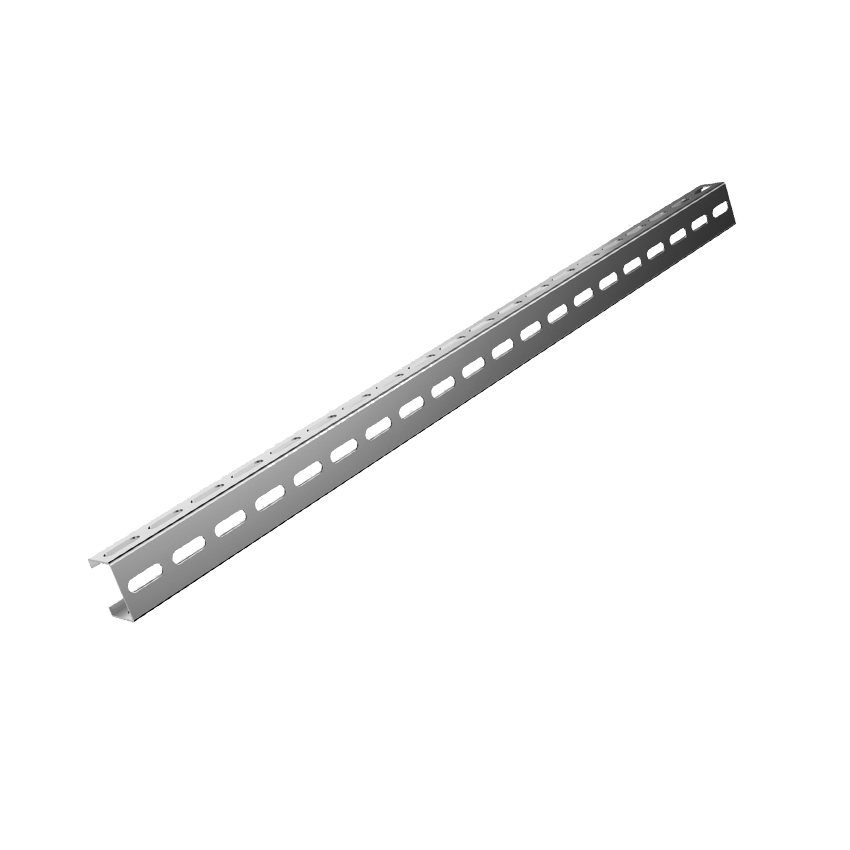

C-Carbon Steel

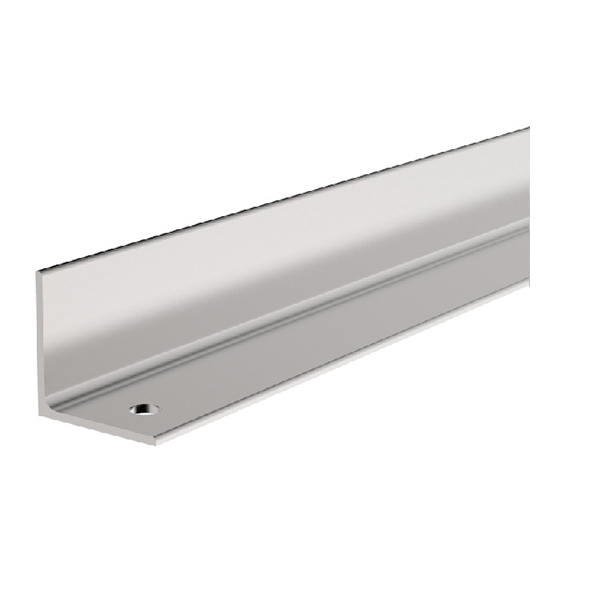

Diagnoal bracing

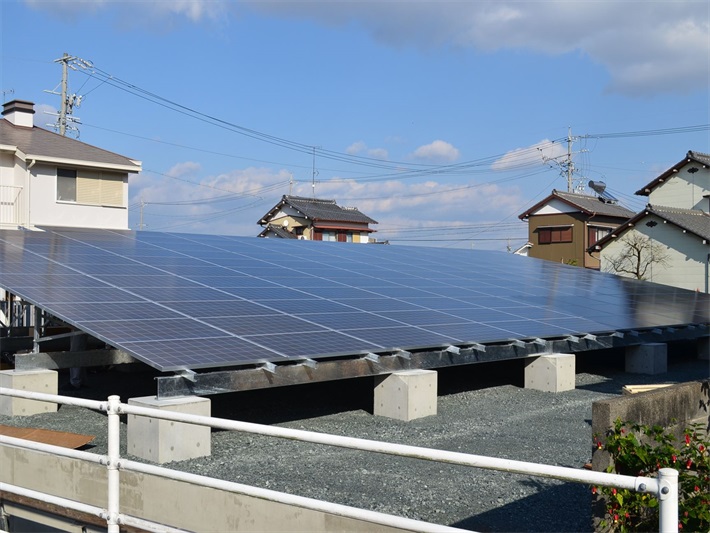

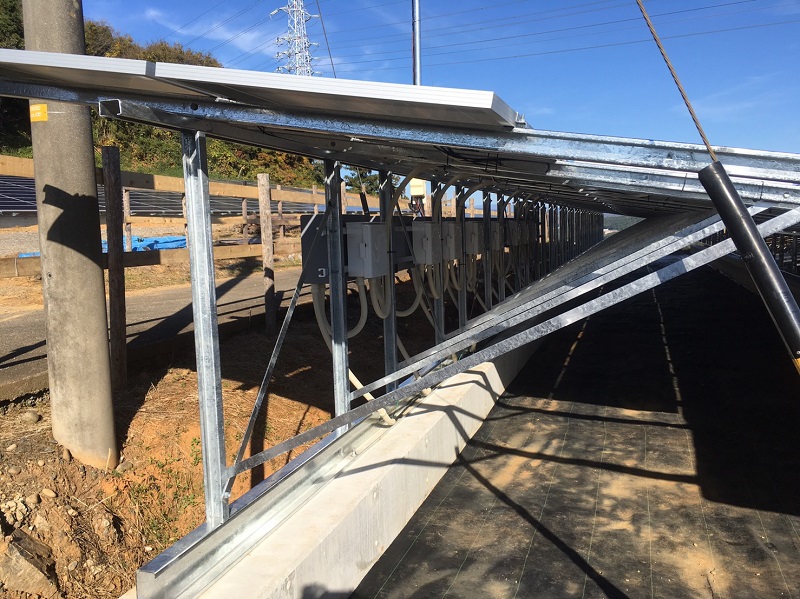

◊ Project Case
