Dual Axis Solar Tracking System

Dual Axis Solar Tracking System

This solar tracking system will gain more 40% More Efficiency

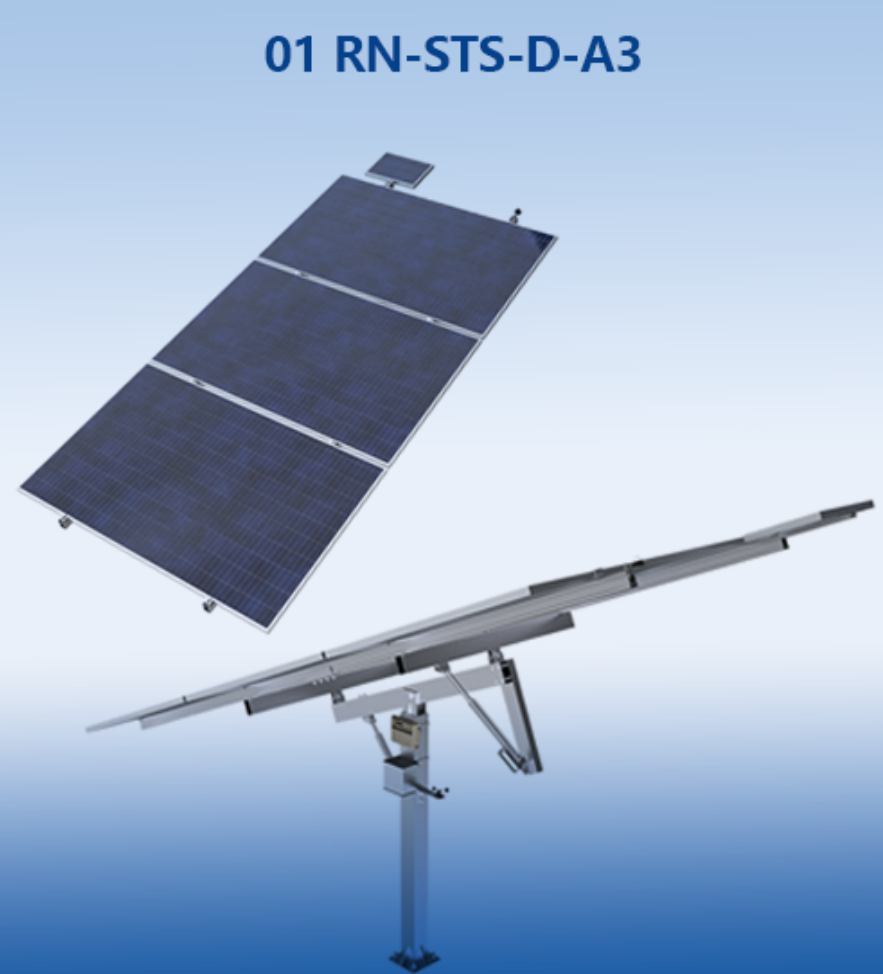

For 3 pcs 1722(1762)x1134x30mm solar panels

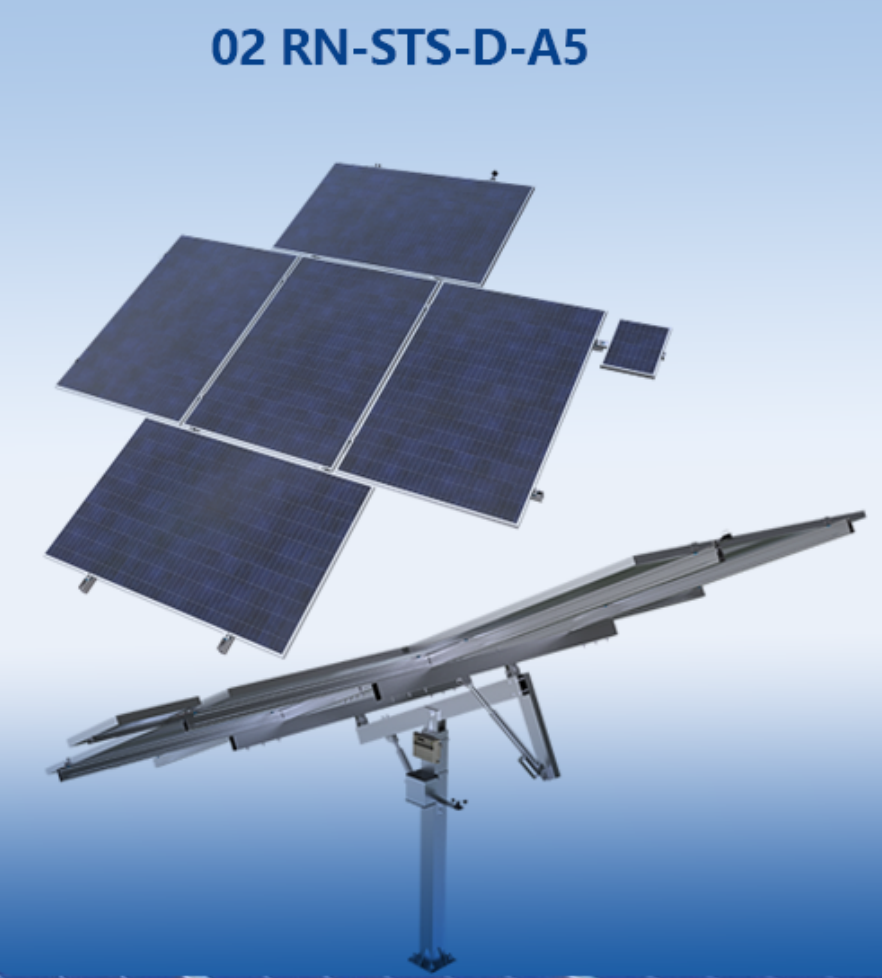

    For 5 pcs 1722(1762)x1134x30mm solar panels

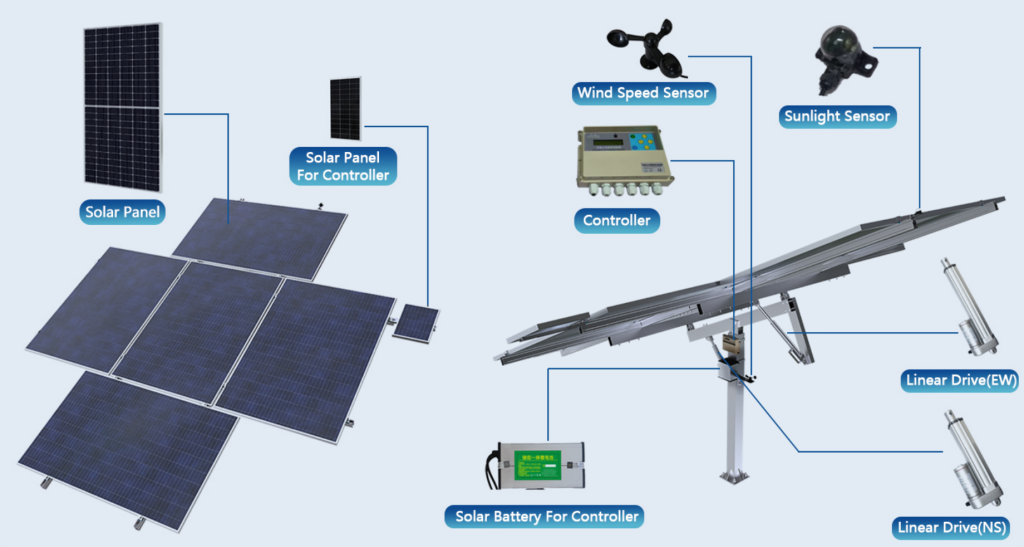

Product Details











































◊Technical Parameter

Model	RN -STS-D -A3	RN -STS -D-A5
Solar Panel	1722(1762)×1134×30 (3pcs)	1722(1762)×1134×30 (5pcs)
Grid Area	1.722(EW)×3.9(NS)≈6.8 m²	3.9(EW)x4.2(NS))≈16.4 m²
Material	Q355B(Hot Dip Galvanizing≥85um) S350GD+275G SUS304
Safety Mode	Wind Protection Mode Night Return Mode
System Controller Voltage	DC 12V (Optional Solar Lithium Battery Power)
Wind Speed	36 m /s
Snow Load	50 cm
Tracking Range	NS O~30° EW-120°~+120

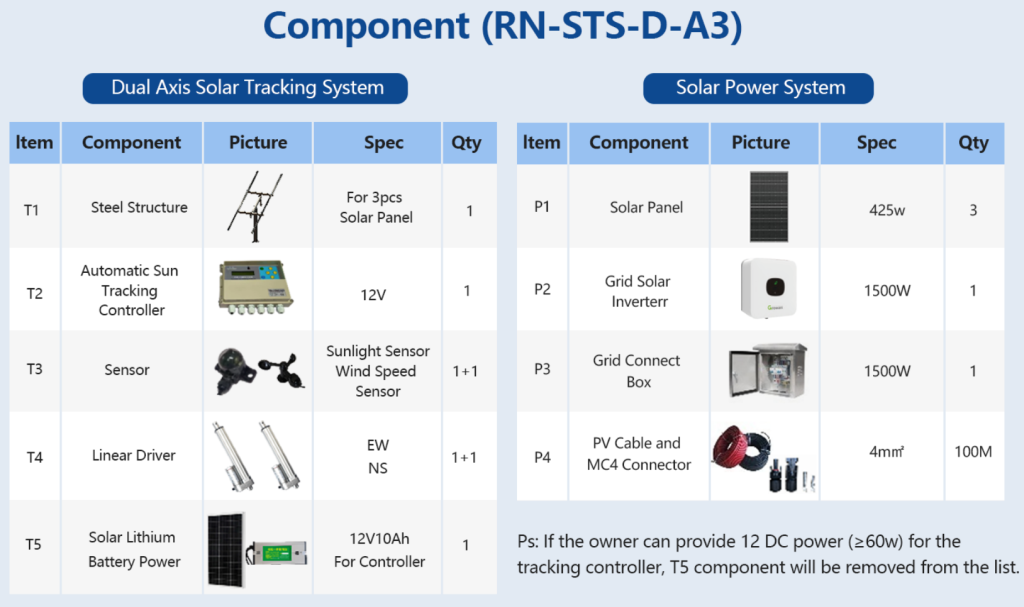

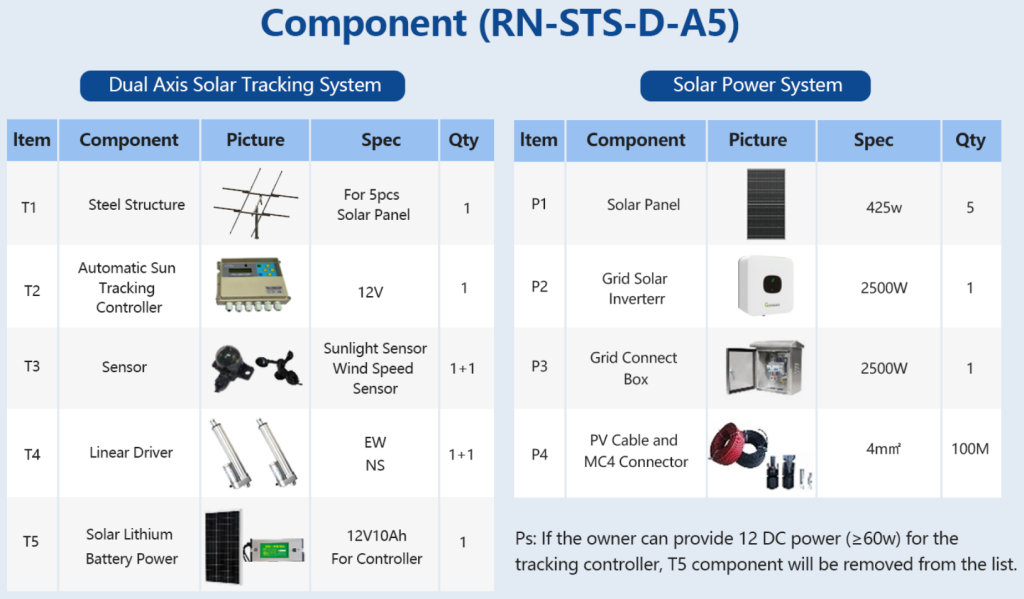

Component

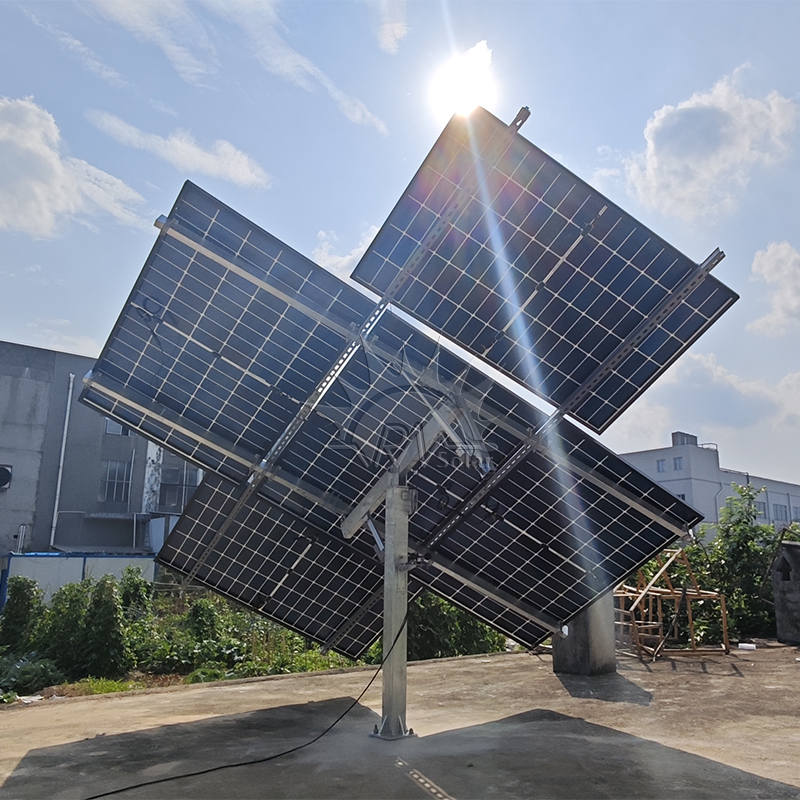

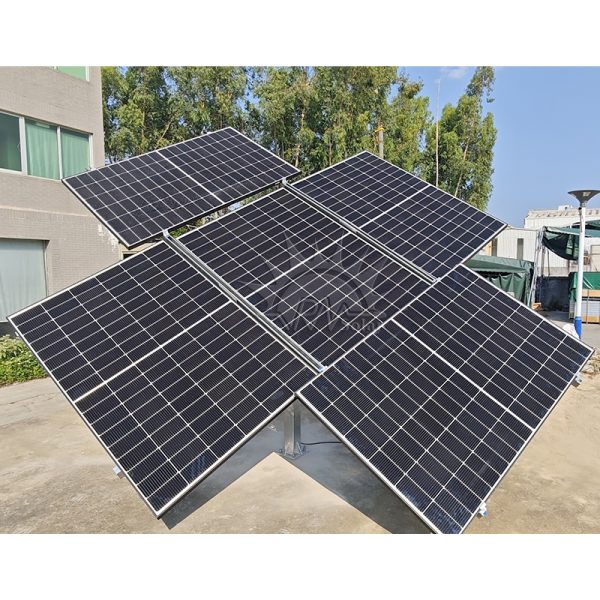

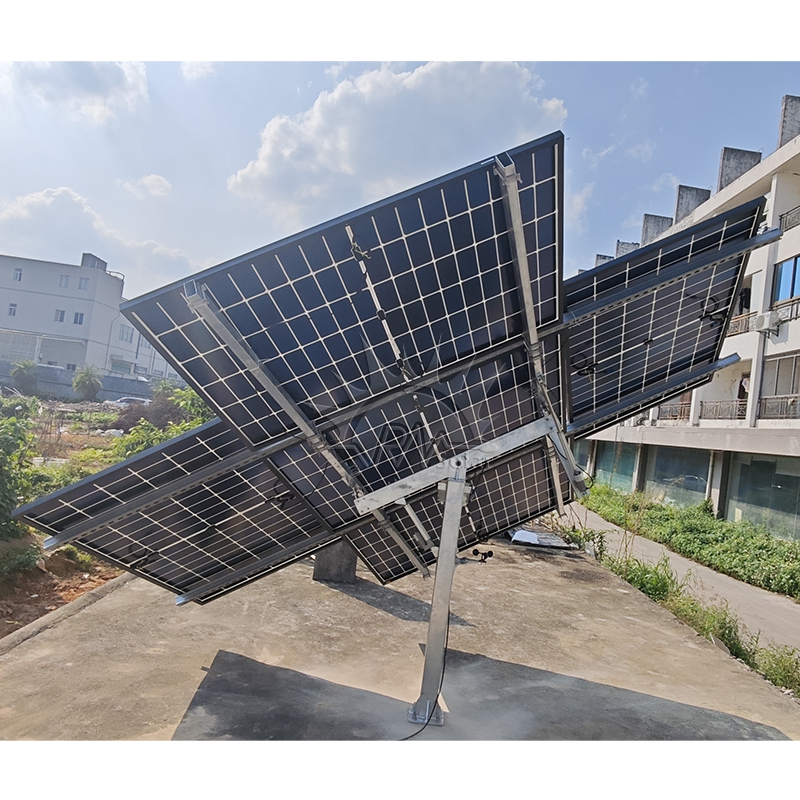

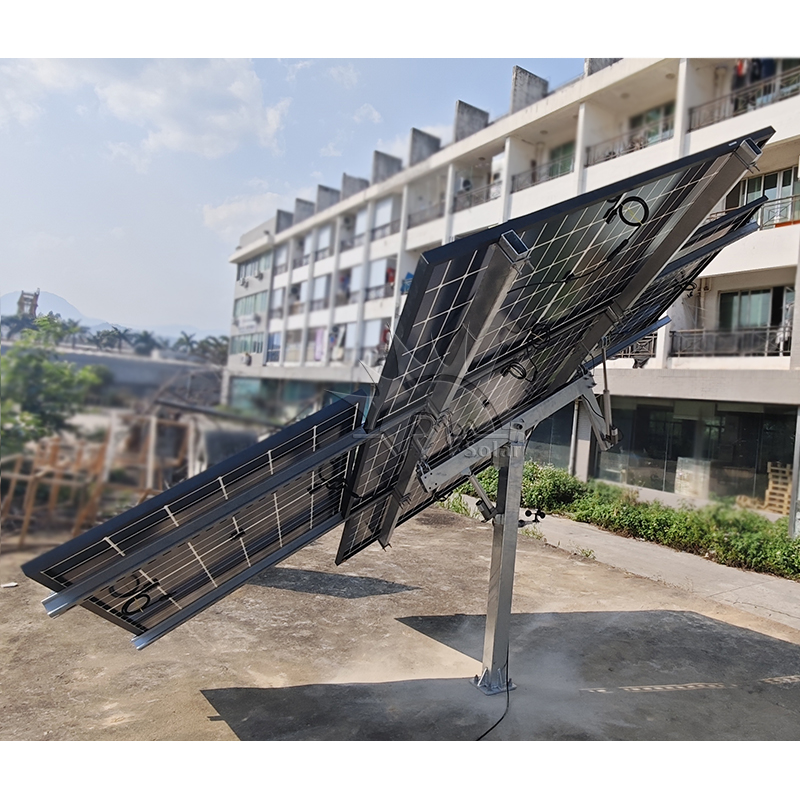

◊ Project Case
