RN-2 Single-pile Ground Mounting System
- Easy Installation
- Pre-assembled design save on-site installation time

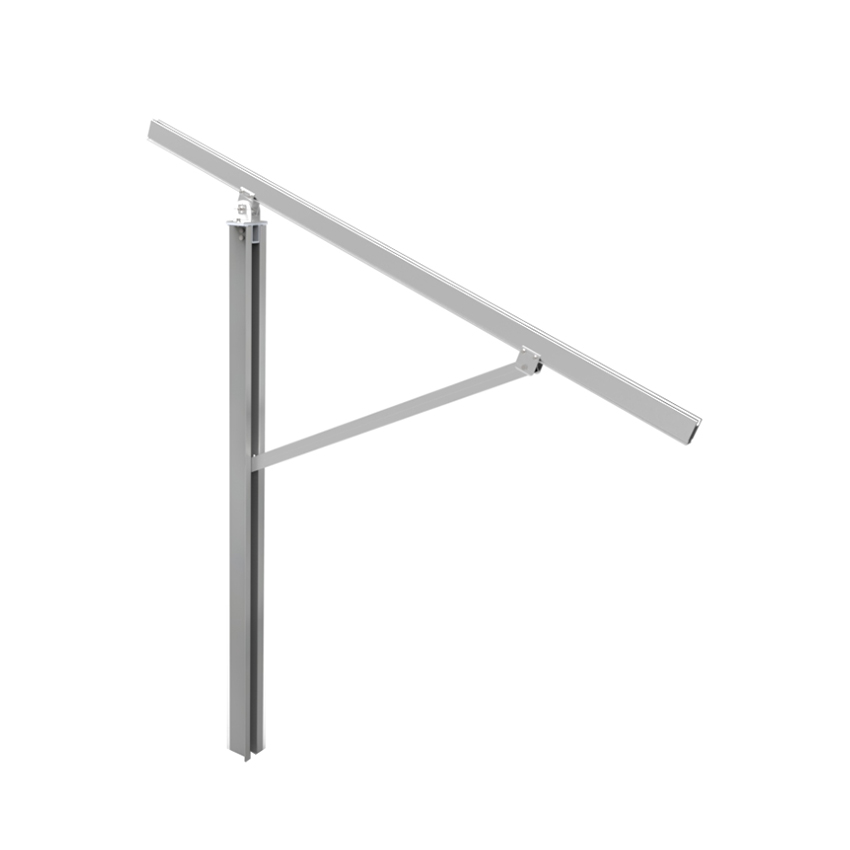

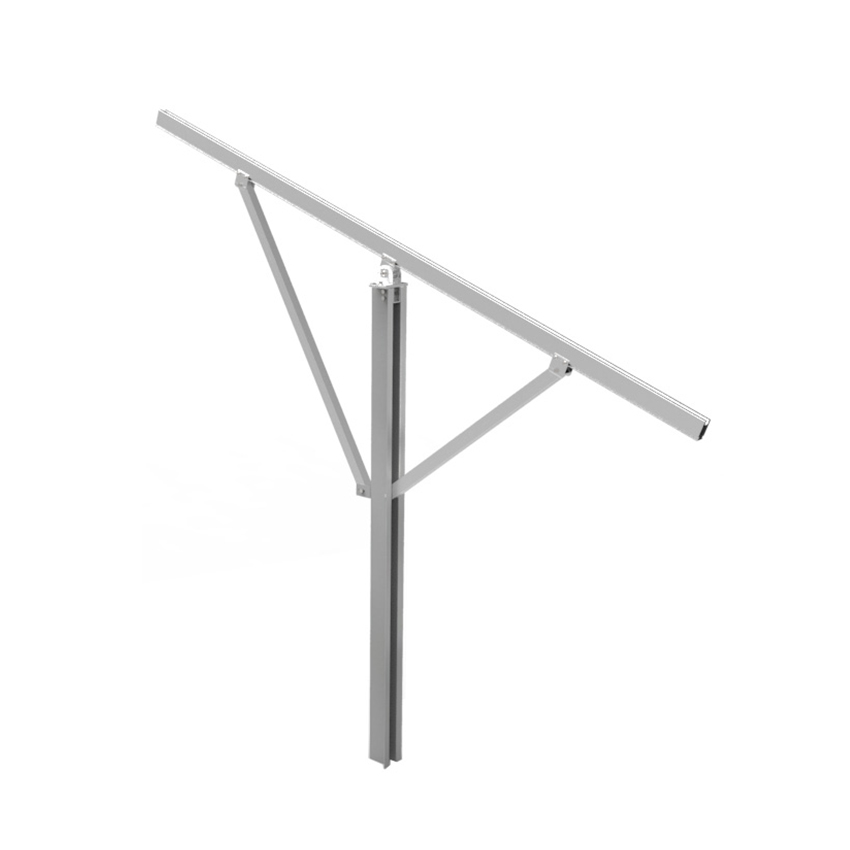

- Single arm or double arm design

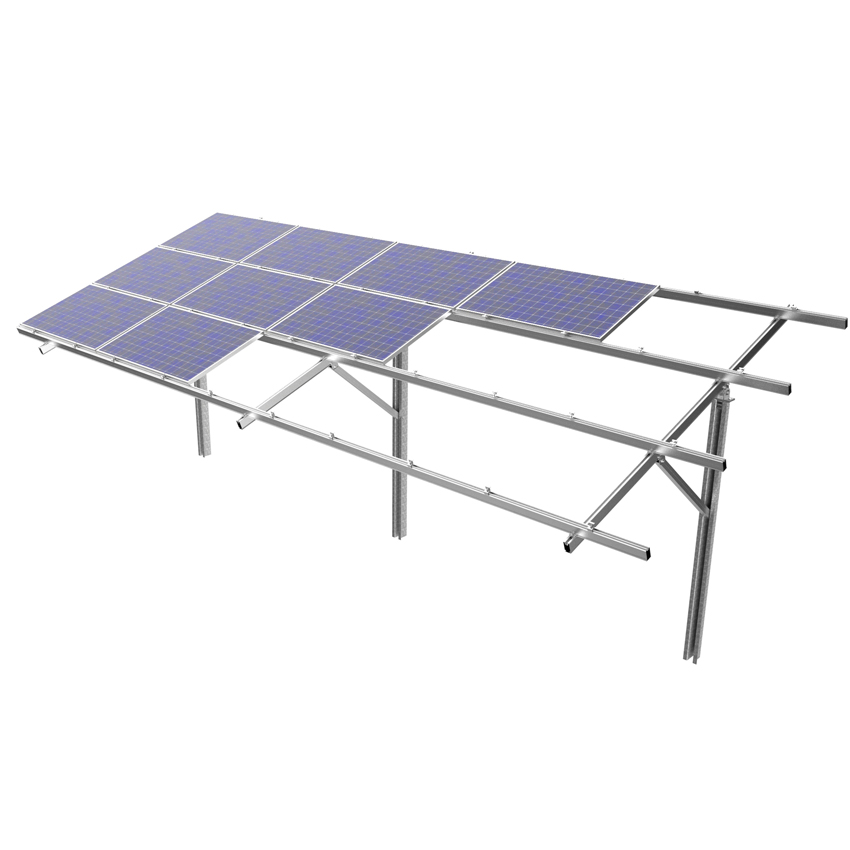

RN-2 Single-pile Ground Mounting System
RN-2 Single-pile Ground Mounting System is widely used in large scale solar projects.
◊ Technical Parameter
| Installation site | Ground | Material | Al 6005-T5 (anodized) & Q235B (galvanized) |
| Tilt Angle | 0-60° | Max Wind Force | ≦60m/s |
| Ground Clearance | 500 mm-2000mm | Snow Load | ≦1.5KN/m2 |
| Module Orientation | Portrait | Foundation | Concrete |
| Landscape | Ground Screw | ||
| Design Standard | AS/NZ 1170,JIS C8955 2017,DIN 1055 ,IBC 2006 | Warranty | 10 Years |
◊ Components

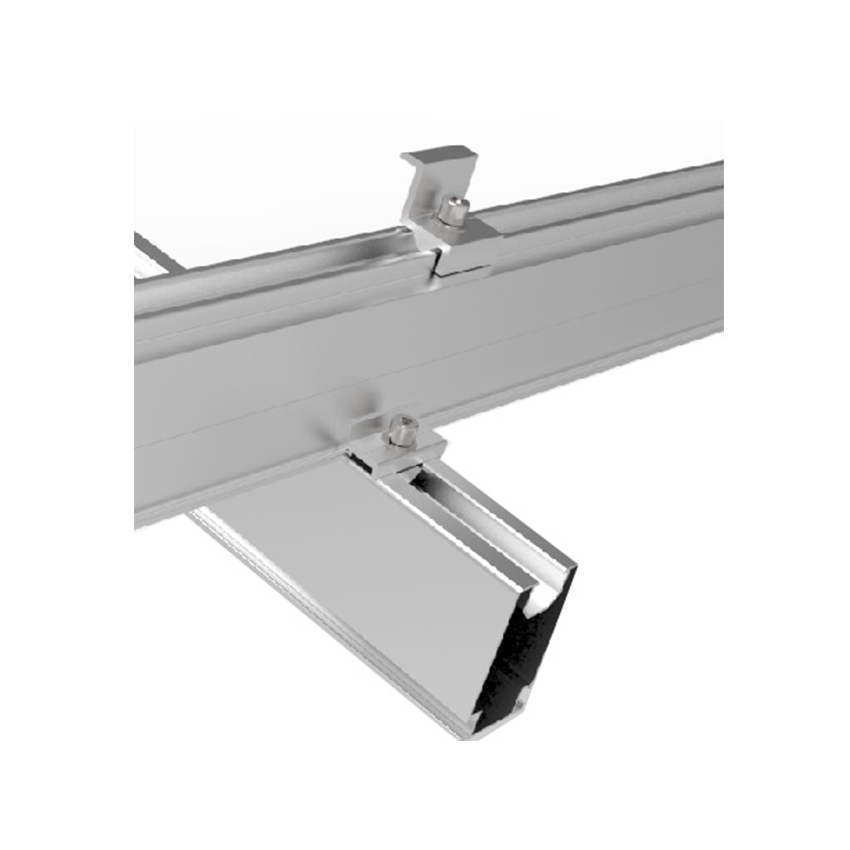

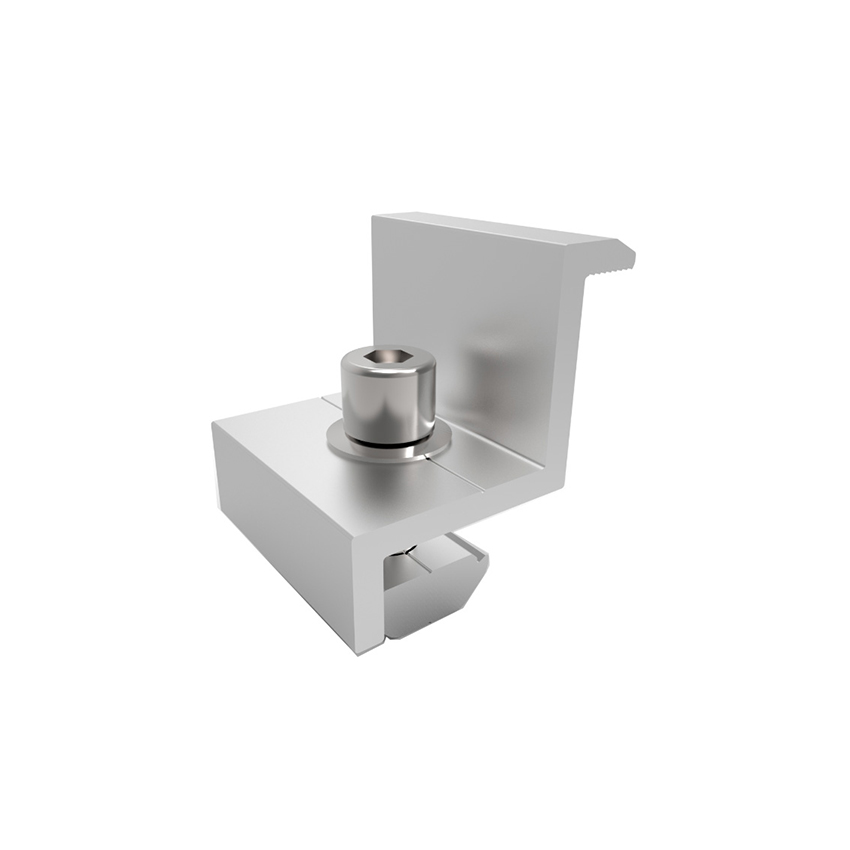

End Clamp

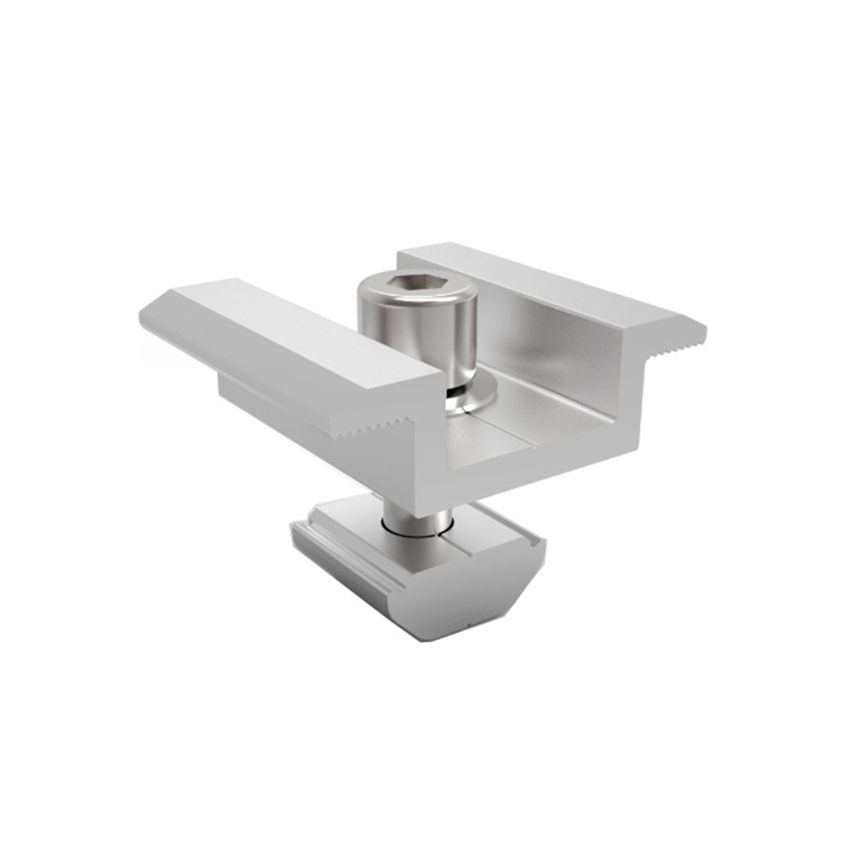

Mid Clamp

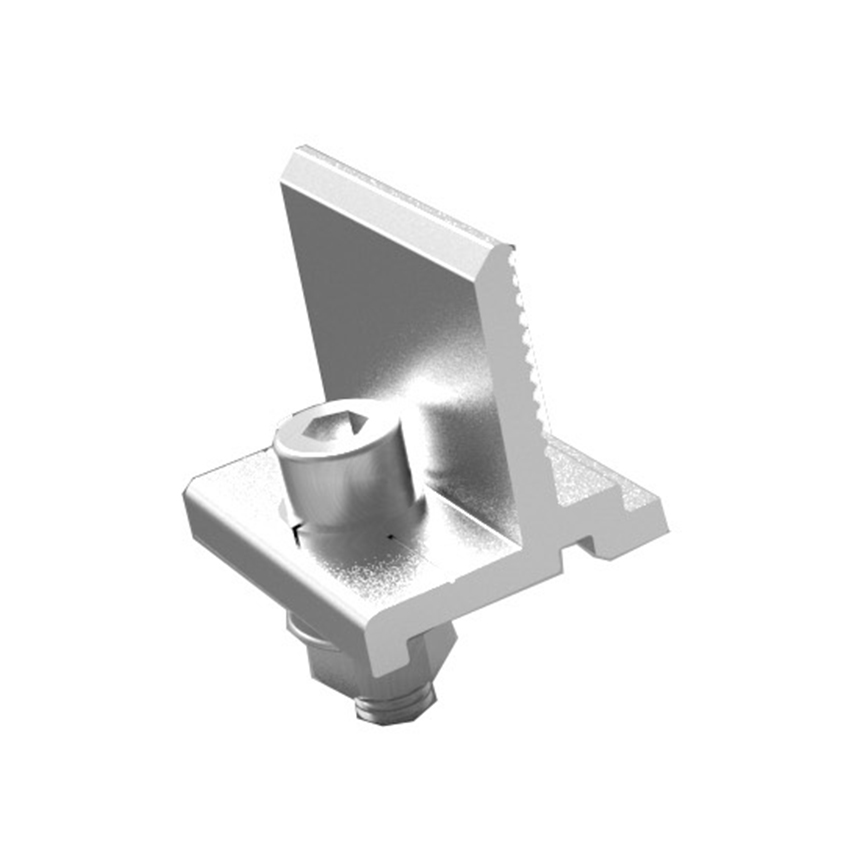

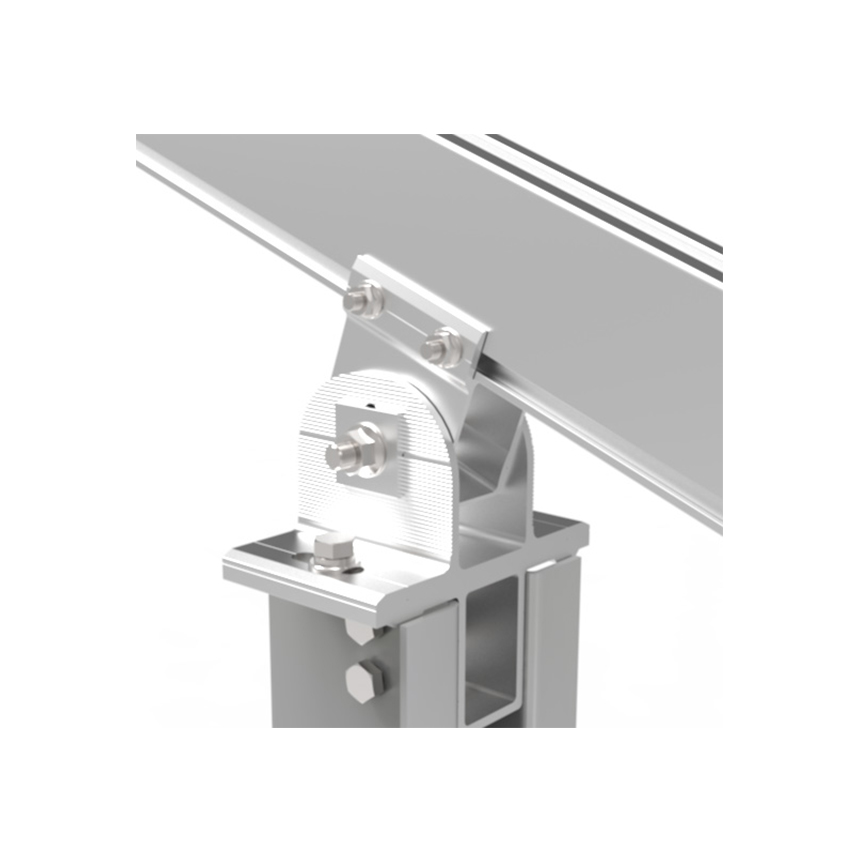

Rail Clamp

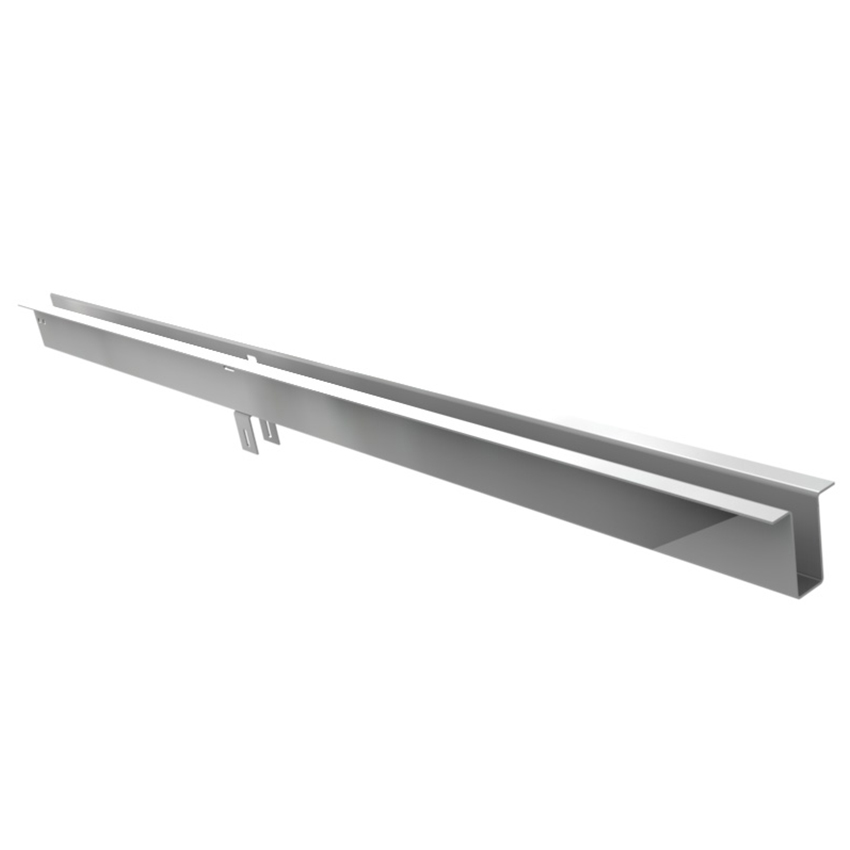

Column

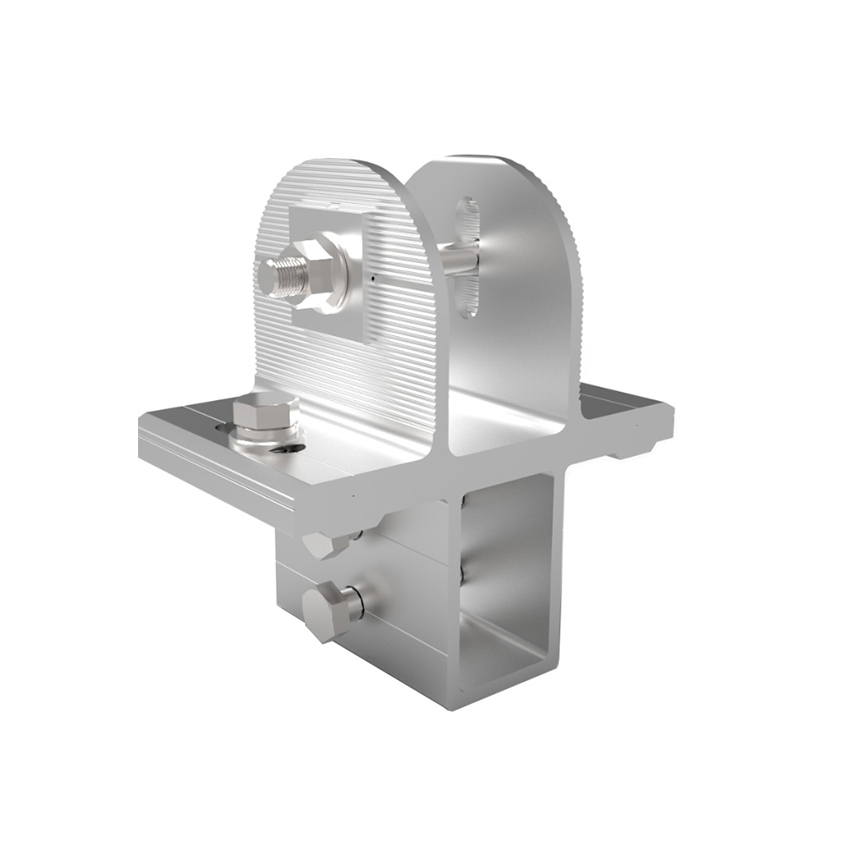

Connector

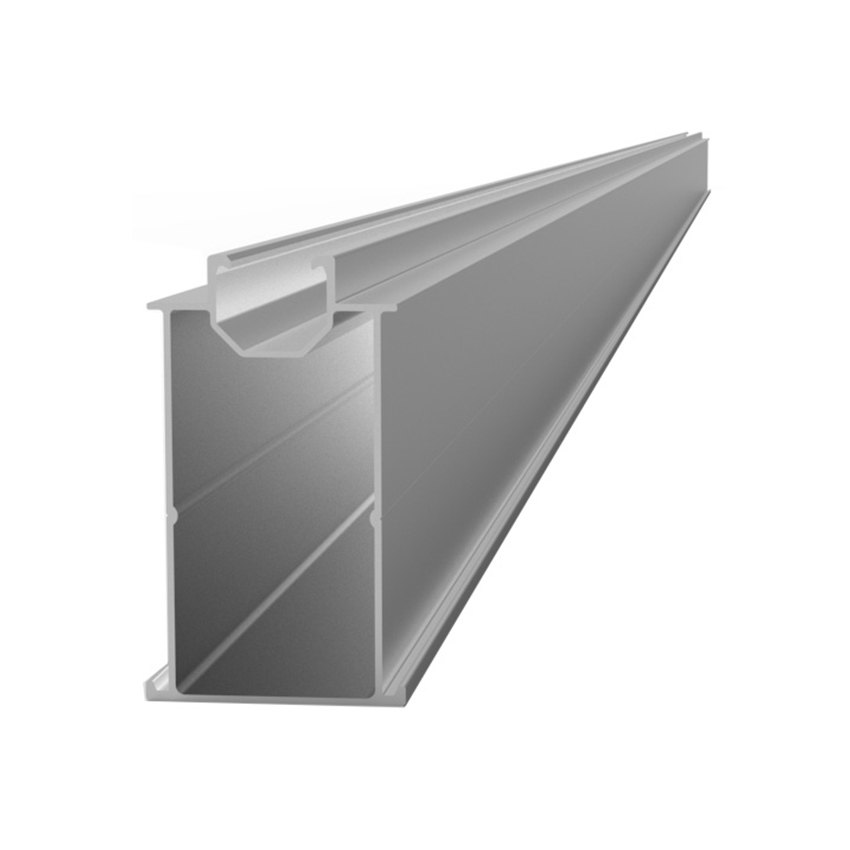

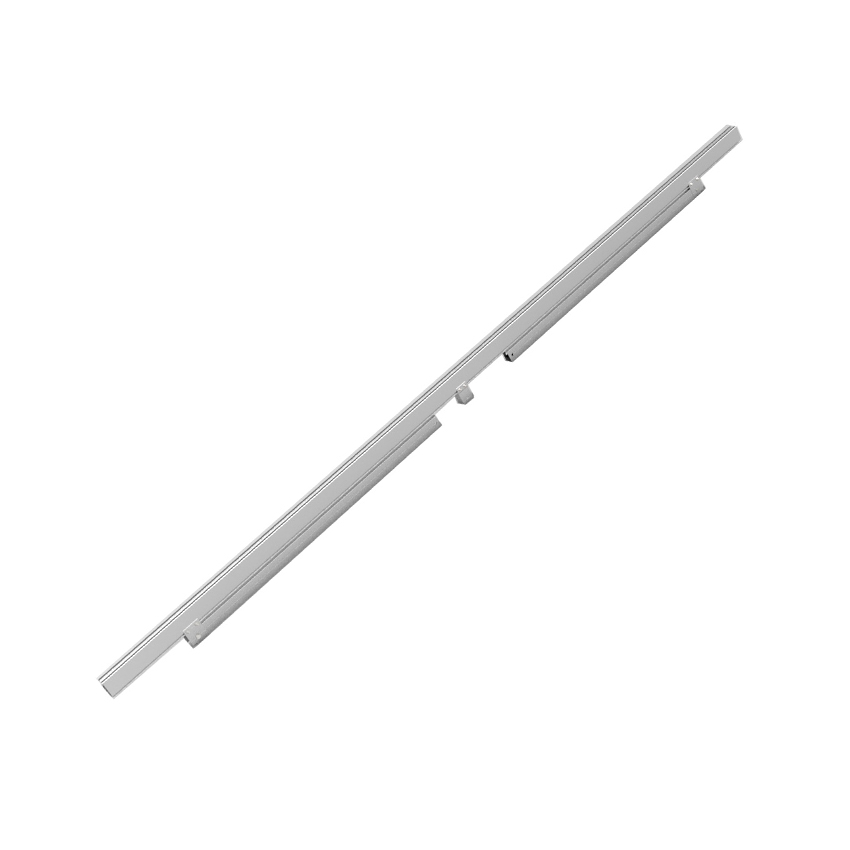

Horizontal Rail

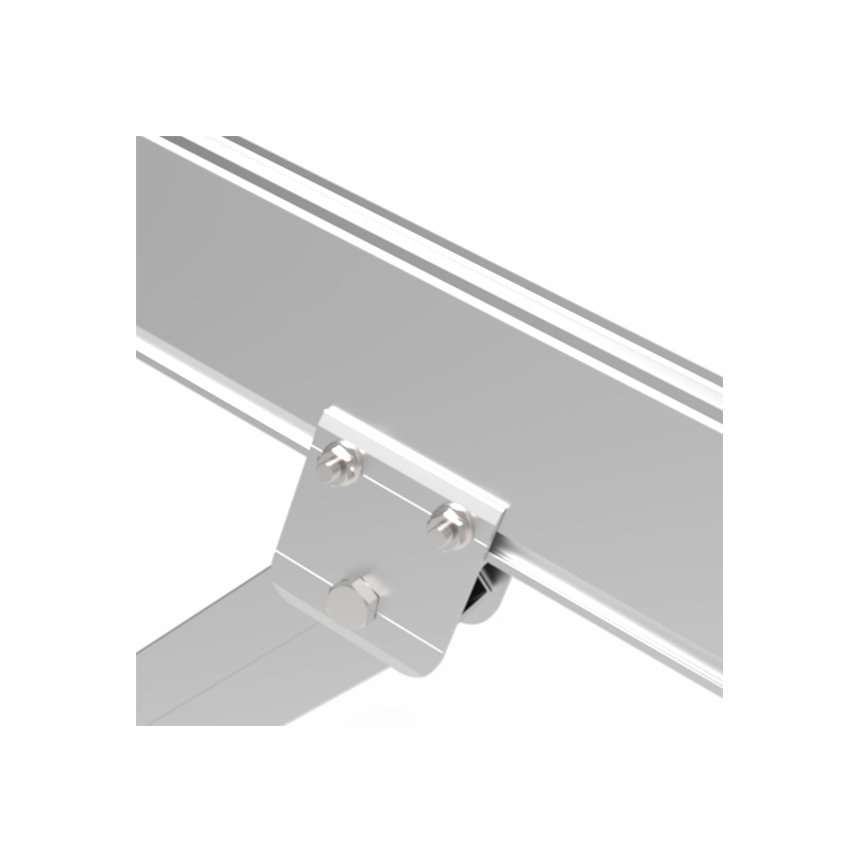

Pre-assembled Bracket

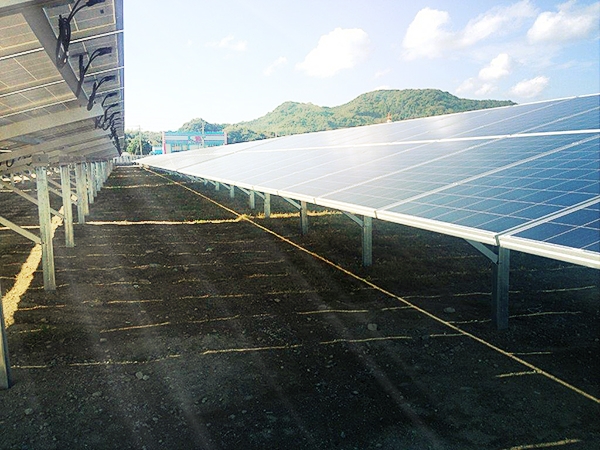

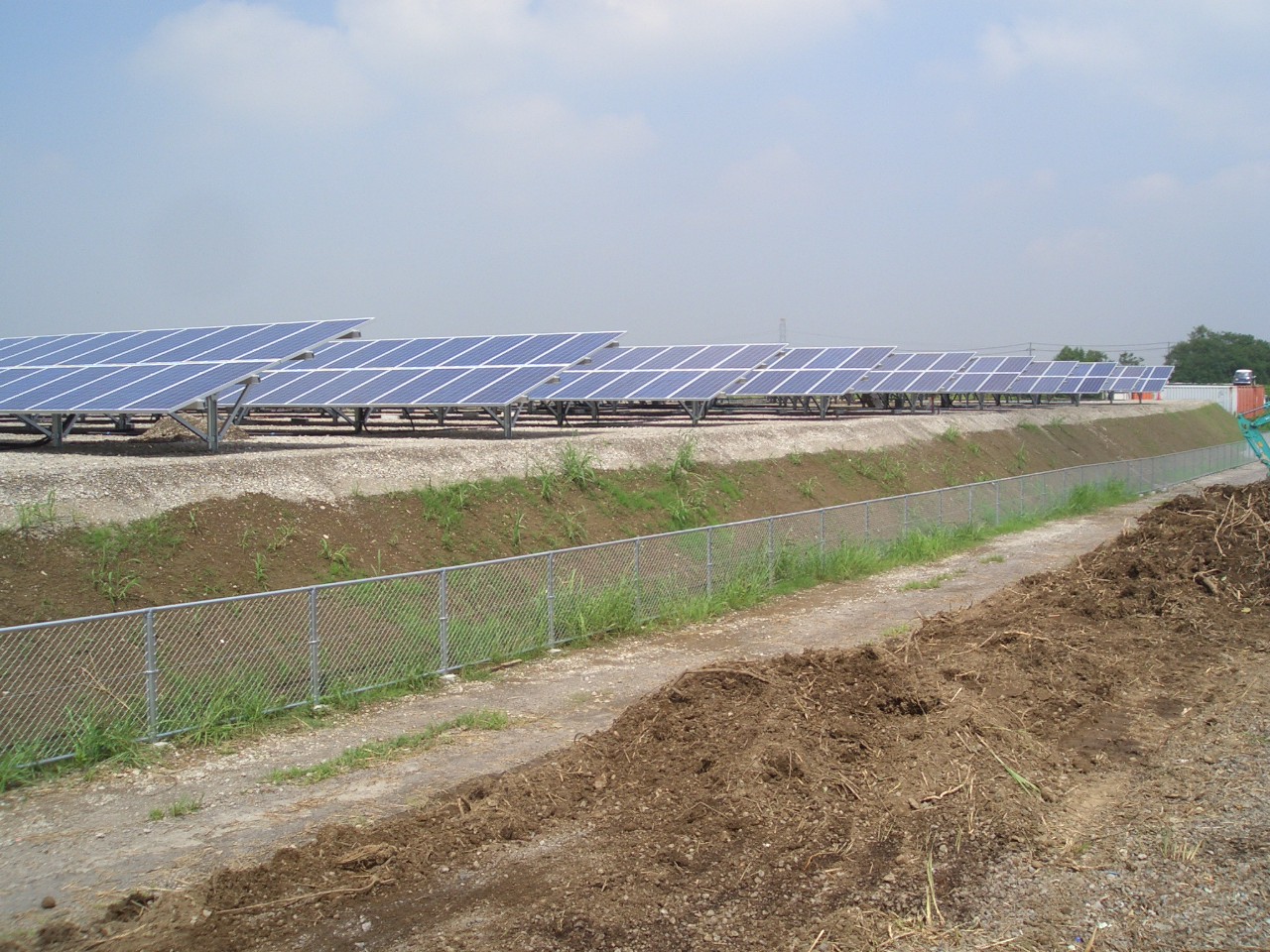

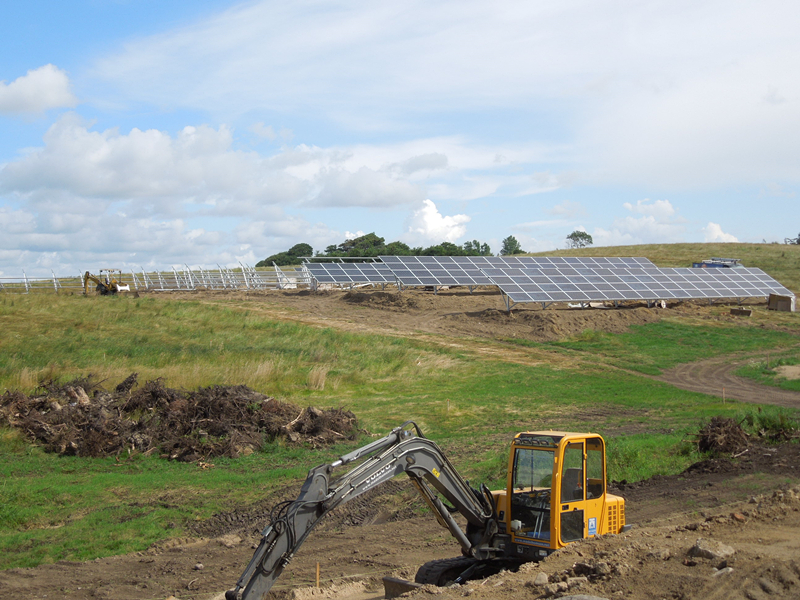

◊ Project Case
