RN-7-SW-3 L-Foot Roof Mounting System
$0.44
- Easy Installation
- Economic and Practical
- Reliability and Safety

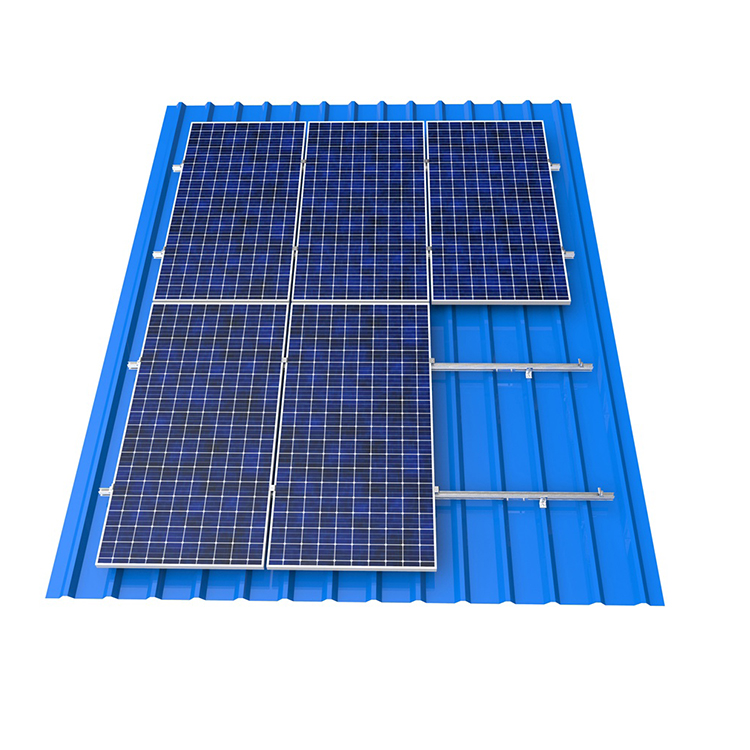

RN-7-SW-3 L-Foot Roof Mounting System
RN-7-SW-3 L-Foot Roof Mounting System applicable for trapezoidal metal roof or corrugated fibre cement roof,various types of bolt applicable for wooden or steel roof beam.
◊ Technical Parameter
| Installation site | Corrugated Metal Roof/Corrugated fibre cement roof | Material | SUS304/AL6005-T5 |
| Tilt Angle | Parallel to exsting roof | Wind Load | ≦60m/s |
| Roof Type | Trapezoildal , Corrugated Fibre Cement | Snow Load | ≦1.5KN/㎡ |
| Module Orientation | Portrait | Warranty | 10 Years |
| Landscape | Design Standard | AS/NZ 1170,JIS C8955 2017,DIN 1055 ,IBC 2006 |

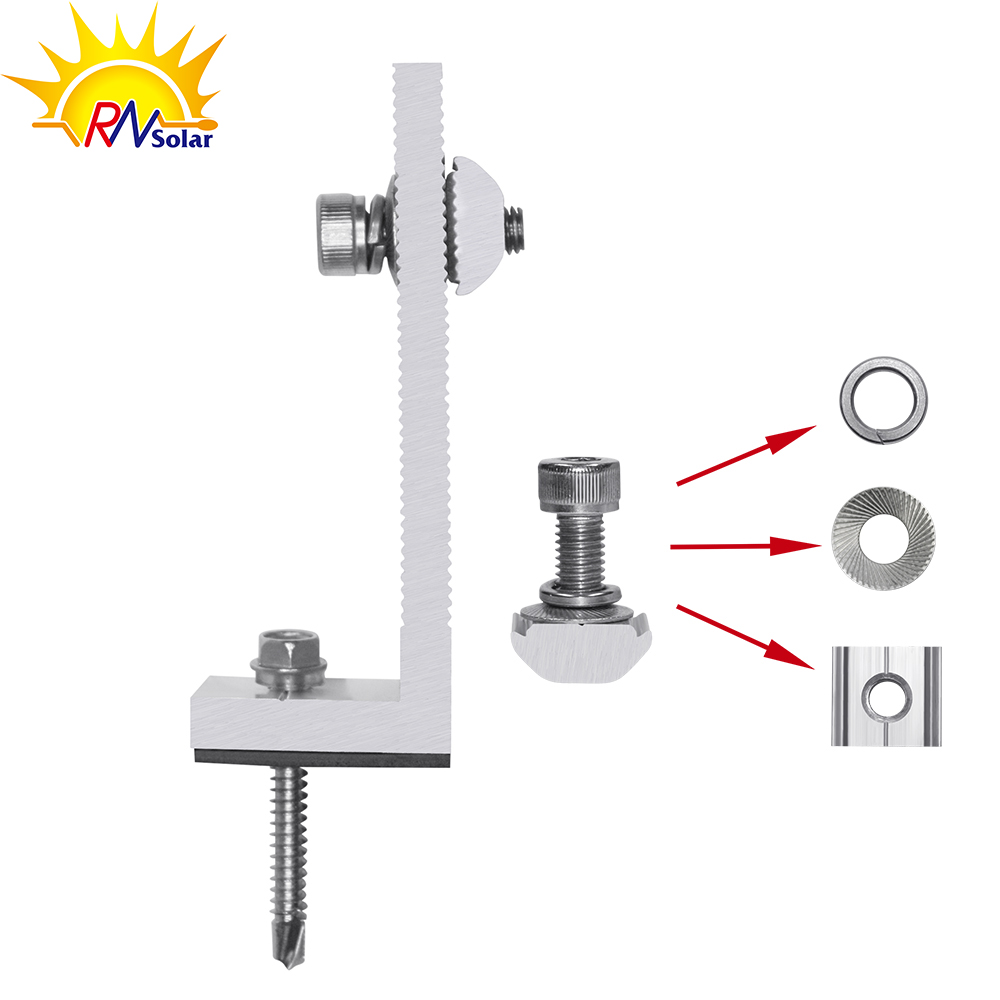

◊ Component
RN7-SW-3-A001
RN7-SW-3-A002
RN7-SW-3-A003
Rail-A
Rail Splice
Mid Clamp
End Clamp

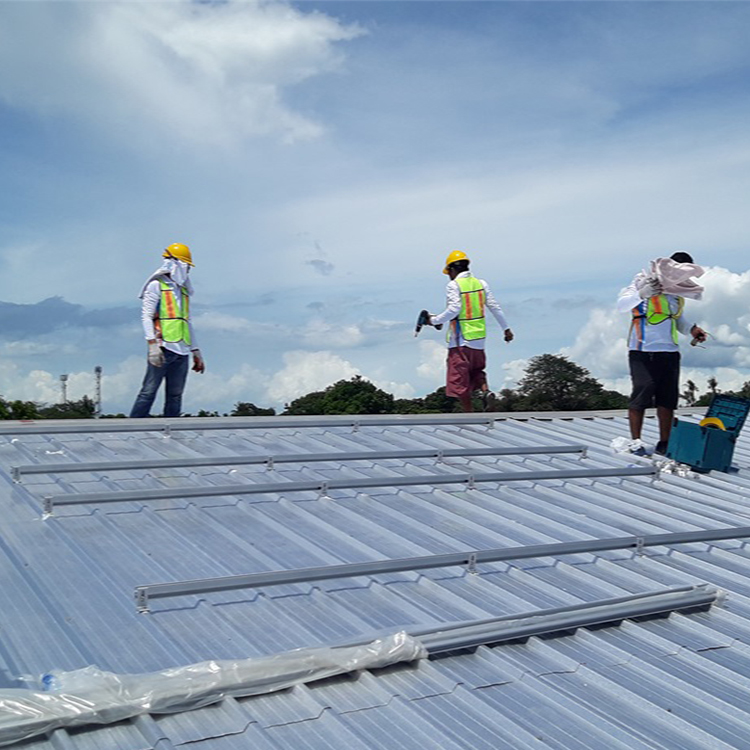

◊ Installation

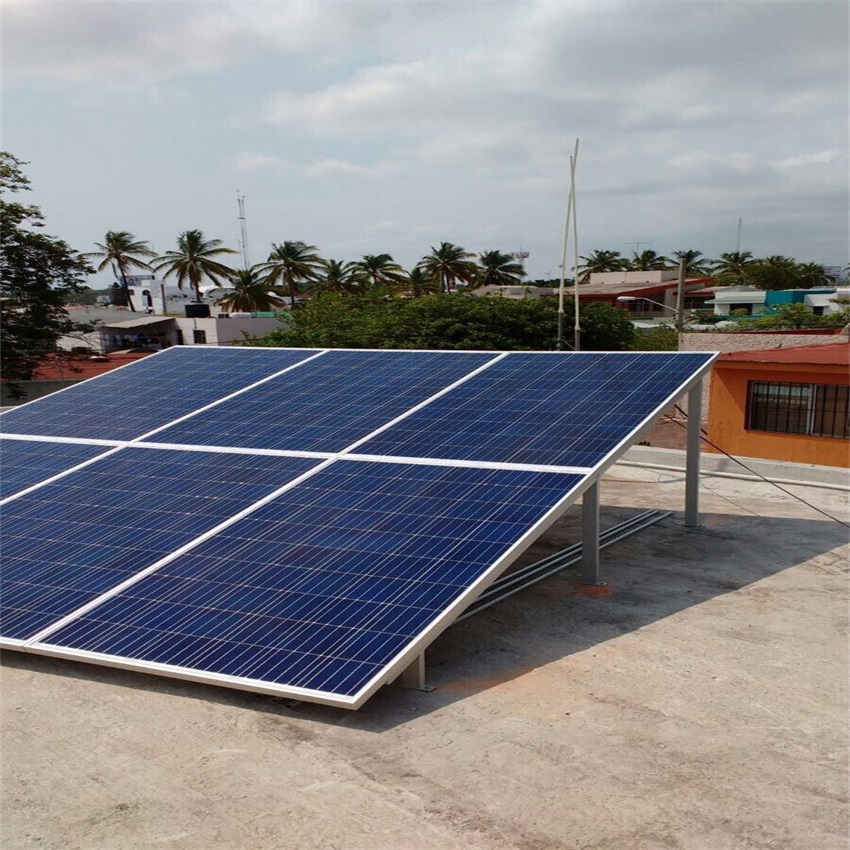

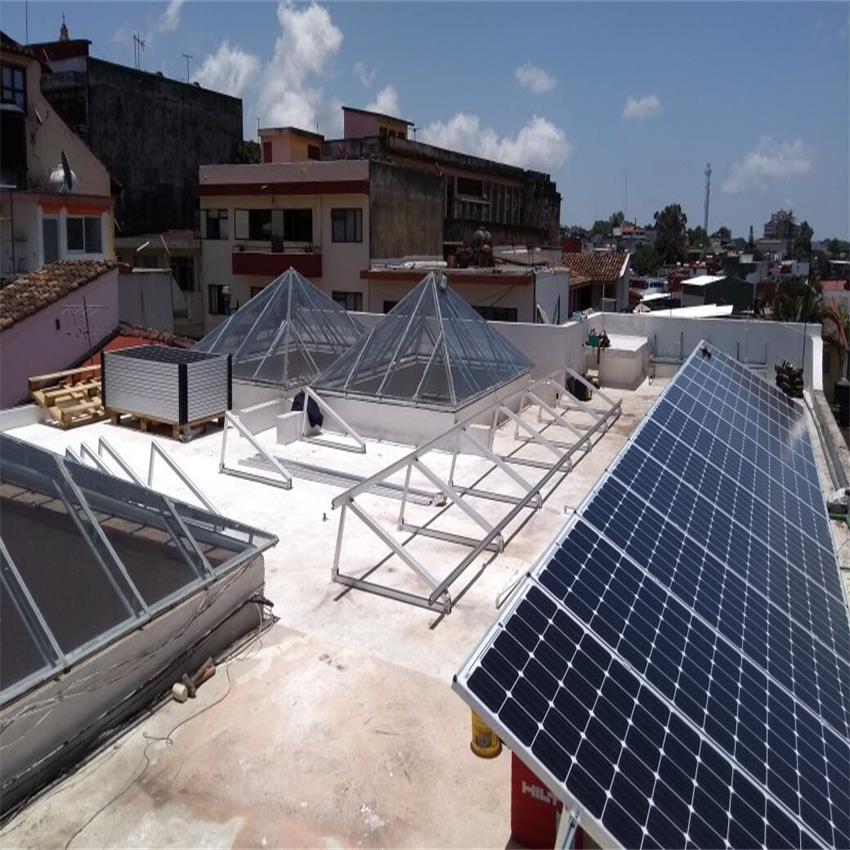

◊ Project Case
